The Hell Machine

Guest post by Chad

The three musketeers, firing away

As is now abundantly clear, a new eruptive cycle on the Reykjanes Peninsula has begun. While an isolated eruption did happen in the ocean off the end of the peninsula in 1783, there has not been an eruption on land since 1240, today 781 years ago.

The eruption ongoing now has ratherbroken the regular cycle of eruptions at Reykjanes. Normally those begin at Brennisteinsfjoll and go west over a few hundred years, but this vent is on Fagradalsfjall, a mountain right in the middle of the peninsula. This area would not be expected to activate for at least a century yet, but here we are, watching the camera religiously as this new volcano grows before our eyes.

The magma is being generated at a great depth, nearly 20 km or twice as deep as normal eruptions in this area begin, and by mantle that is nearly totally melted to result in a lava that has a very high concentration of olivine. This sort of basalt even has its own name, picrite, and it is the closest thing to the ancient komatiite lava that erupts on the Earth today. This has been interpreted as a possible case for a shield volcano to form at, something which has not happened here for many millennia, but I think there are rather more profound implications for this. The magma is fluid and extremely hot, well over 1200 C, and that is enough to allow both physical and thermal erosion of the interior of the conduit, which will serve to only allow more magma to flow, in a compounding effect. Direct mantle eruptions are rare, but one that is currently ongoing if hard to observe is going on under the ocean near the island of Mayotte near Madagascar. It is not particularly intense, but since it began in mid 2018 some 5 km3 of lava has erupted to date.

The magma for eruptions like this is created by decompression melting as the pressure drops, a self feeding cycle that is limited only by the rate of mantle flow to the area. It is a self sustaining machine, the Hell Machine as I like to call it.

Hell Machines are a rare sort of eruption. Like said above they are perhaps best categorised as some sort of hybrid between a shield volcano and a lava flood fissure eruption. The eruption rates may be sustained at a relatively high rate for a long time, well above the rate seen in the formation of shield volcanoes but also never getting to the colossal rates seen in the big fissure eruptions, at least not for any long duration.

Mayotte is an example of a Hell Machine that is erupting now, it is in the deep sea and it may be that most such eruptions are, but there is a historical eruption like this that occurred on land and it offers some tantalising clues.

On the 1st September 1730 an eruption began on the island of Lanzarote, in the Canary Islands. It was relatively large, creating a cinder cone that was ultimately named Caldera del Cuervos, as well as over a few months the similarly sized Caldera del St Catalina and Pico Partido cones. This constitutes what would have been a typical if somewhat larger than average eruption in the Canary Islands, but we now know this first eruption managed to set off the Hell Machine. Eruptions continued into the next year, though it had declined from the initial high rates as expected, the flows were still fed at an impressive volume to sustain over a year. Submarine eruptions well off the west coast and going up all the way to just inland beginning in June of 1731 marked the completion of the hell machine, it was now in full working order, and eruptions marched eastwards back onto land to flood even more of the island. Observations after this are poor as few inhabitants stayed beyond this point but the eruptions continued into 1736, erupting some 5 km3 of lava, constituting the large majority of the volume of all eruptions in the Canary islands in recorded history. Lanzarote has no active central volcano, and has not possessed one for millions of years, the eruption of 1730-1736, or Montanas del Fuego as it is known locally, was fed out of the mantle directly by extensive melting under the base of the crust. Perhaps most notably, all the eruptions from the late Pleistocene and Holocene on Lanzarote before this were on the northern part of the island, the area where the Montanas del Fuego eruption occurred had not been volcanically active for possibly several tens of thousands of years or more, a certain similarity it does share with Fagradalsfjall.

Lava fields on Lanzarote. Source: Becerril et al. ,Assessing qualitative long-Term volcanic hazards at Lanzarote Island (Canary Islands), 2017 Natural Hazards and Earth System Sciences, 17, 1145-1157

The Signs

The first sign of a hell machine is that the eruption is persistent and erupts out of the mantle directly, something clearly the case already. An eruption should also be a rifting event, where the rift is kept open by new magma, and this also seems to be happening, as a dike has formed within the crust going from less than 2 km depth down to at least 7 km, with possibly many feeding points below this that are not resolved. The very high temperature of the lava will also serve to enlarge the pathways, something that may take longer than a week to become evident but which is expected.

So far our eruption is quite small, even tiny, but it has a big future. The first obvious sign could be that the vent increases in output, or that it stays constant but another vent opens. We may already be seeing this, as the vents are rather a lot larger than they were to begin with, and the output appears to have increased. Deflation is not observed along the dike either, which would suggest the eruption is being fed by continued decompression melting in the mantle, a process that may increase accordingly with the eruption rate and set the hell machine in motion.

What will become of the Reykjanes peninsula if this occurs? Perhaps the most direct consequence is that land within perhaps 10 km of Fagradalsfjall is potentially at risk. There is no danger to Reykjavik but Grindavik may suffer if not from the lava then from the gas emission. The effect it will have on the normal Reykjanes cycle is also unknown, most typically the section of the transform fault at Brennisteinsfjoll is the first to go but this time around the section going through Krysuvik was set of by the recent intrusion, leaving Brennisteinsfjoll in a precarious situation. Decompression melting at Krysuvik may well have already begun now in preparation to its awakening, and Brennisteinsfjoll could wake up rapidly following its eventual quake. Eruptions here will resemble those from the Reykjanes Fires, but taking a back seat to the lava flood that is just beginning now at Fagradalsfjall. We are watching history creating itself.

Perhaps this will not come to fruition, it may turn into a shield instead, or even stop. But with all the signs it is looking like the future is grand for the new little volcano.

Chad – 2021

859 thoughts on “The Hell Machine

  1. Great article Chad, I have a feeling your ideas regarding the current situation are quite accurate, and this eruption will continue to evolve with further fissures opening up.
    I wasn’t aware of the relatively recent volcanism in Lanzarote, but I do believe there are many comparisons to be made between Canary Islands volcanism and other mantle-sourced rift volcanism such as that we are seeing right now. This is a good article on the matter and blows away the ‘hotspot’ hypothesis: http://madeiraislands.net/geology/the-origin-of-madeira-island/

  2. Wonder if lava flow going behind (west side) i think it get. And back to 1 valley that way soon. looks like it is a gorge there..

    • some of my local FB is out boohiss but was able to read reports that boats have been called in to evacuate people in the red zone.

      • yes, one of the large cruise ships coming tonight. The video is quite covered with smoke but the messages from authorities are quite straightforward. Unfortunately for me some of the content is only on Facebook which I won’t touch.

        • it certainly looks imminent and real. Emergency press briefing was tweeted by @DJimeshaPrince
          the most worrying would be explosive eruption as they would have to close water supply and be dependent on external supply. It seems they are very well organized re: Covid.

          I guess I should try to convince Dr. Jazmin Scarlett to write us an article about La Soufriere.

          • Please do ask, we would love to see a guest article about La Soufrière by Dr. Jazmin Scarlett.

  3. Great article Chad, thank you.

    There seems to be a great deal of activity on the hillside at Meradalir – torches everywhere. I wonder why they are out at night?

  4. Kudos to RUV for zooming in on the geldingadalir vents! Crisp focus, not entirely overwhelmed with exposure. Next best thing to mbl1. With uptick in activity i expect some crumbling of the cones again.

  5. I feel sorry for the search and rescue people. What on earth are people doing out there that late into the evening? I wouldn’t like to be hunting for people out there with the possibility of a new fissure opening up beneath my feet. .

    • When a lava dome eruptions starts quietly it usually stays quiet, when La Soufriere wishes to blow up it does so at the start of the eruption.

      • I have seen now the news that seismic activity has been ramping up, so a new intrusion is probably rising up. I change my mind, it could blow up, or maybe not. But it does seem wise to evacuate the mountain’s slopes, this volcano can get very nasty.

        • they were following some seismic tremor and that is guiding the advice. + there is a history of building a dome before damaging explosive eruption. more at @uwiseismic and @NEMOSVG

    • See my comment above. The volcanoes on the Lesser Antilles Volcanic Arc are nothing to mess around with. The subduction zone that creates these volcanoes are the deepest in the Atlantic ocean. That could spell havoc for the US eastern seaboard but it isn’t talked about.

      • With regards to La Soufrière .The Puerto Rican trench is the focus of these volcanoes. The deepest location in the Atlantic ocean at 27480 ft. or 5.2 miles. Try to wrap that around your head. Number 8 on the deepest spots in the oceans which at this massive depth is hard to believe.

      • Must wonder when the arc’s subduction will extend sideways to begin swallowing the Western Atlantic plate rim. Flip side is the activity off eg Lisbon & Gibraltar, where Eastern Atlantic plate rim *may* be preparing to dive. Initiation process is, IIRC, ‘uncertain’. Partly because precursor evidence is the first to go down a new trench.

        Sadly, initiation may be marked by a mega-thrust quake and Fukushima-grade tsunami…
        Be NOT There.

        • That is the base of the Pangea Ultima hypothesis, the most common and polular depiction of the next supercontinent. Problem is the Puerto Rico trench isnt the atlantic seafloor subducting under North America, or South America, its subducting underneath a microplate (maybe not ‘micro’ but it is small nonetheless). Same in the South Sandwich islands, although for whatever reason the volcanoes at both these locations are very different in behavior (Lesser Antilles is domes and pyroclastic activity, South Sandwich is mostly mafic volcanoes).

          The other problem is that the Pacific plate actually is all of the ocean floor in that ocean, theres only a spreading ridge in part of it. The most probable configuration of the next supercontinent is something similar to the Novopangea model, where the Atlantic ocean evolves into the next global ocean and antarctica moves north. If antarctica doesnt move north then Amasia forms, but we dotn really know muc habout tectonics in Antarctica and it is entirely possible it will be rifted apart just like Africa. That is one of the unknowns, how likely it is that the continents actually stay the same as they are today for 250 million years as they move around, in my opinion not likely.

    • I am concerned that the intense northern activity is signalling new fissures ahead of that location soon.

    • another observation of why women live longer. (mots is losing her filter… 🙂 also expecting hurricane force winds in here so may lose more than my filter… lots of dead trees around and may lose power for a while… so if i become quiet… enjoy… cause “i’ll be back!” 🙂

      • hiking at night in wintry conditions is fun – if you are prepared and experienced, if you are unprepared and a hiking novice it results in an interesting experience at best.

  6. Thanks for the excellent article, Chad. So this event has me wondering if these “fires” should be called a volcano. Yes, there’s magma/lava. But no chamber. Are we going to call every flow from the MAR a volcano? “Hell Machine” is more fitting. An apt name because who knows where/when this will end? Maybe it will become a volcano some day.. it will make Irpsit very happy if it turns into a shield volcano. (Fitting pronoun goes here) had high hopes for Bardabunga’s leak.

    • Yes if it turns into a shield it can be called Irpsitdyngja, and if it turns into what I hypothesize it can be called Tjadagigar 🙂

      Holuhraun was not likely to ever be a shield in hindsight, just like the rift at Veidivotn there is no deep source to eruptions here and they are fed by dikes coming from the extensive sill complex underneath the area of Bardarbunga and probably the neighboring volcanoes too, with the most elevated one draining in the process. Eruptions like this are fast and large in volume, sometimes extremely so as we see at Thjorsahraun, though that was an exceptional event with 1-5 km3 eruptions being more typical. Eruptions at on the north rift and the northern part of Veidivotn can be direct deep source eruptions though bypassing a central volcano, so shields will probably form in these places when Vatnajokull melts. Possibly we might also be able to have hell machines too, theres some pretty big flows there that look somewhat inbetween a fissure eruption and a shield, a lot different to the long fissures further south.

      Might write another post about Bardarbunga one day, once I have finished mapping it on google earth.

      • Looking at all Holocene lava flows in Reykjanes, I would say about 5% of them are shield eruptions.

        I cannot recall all lava flows but there are probably a good number of them, maybe between 50 and 100. About 5 Holocene shields in the peninsula, or one per 2000 years (but most happened actually in the early Holocene).

        Near Langjokull the percentage is larger, as well as north of Vatnajokull.

        I also recall a paper researching an eruption south of Langjokull about 3000 years ago, and they postulated a shield and fissure eruption at same time, with the dyke coming from a big depth. This is as far as my memory goes. I could try to locate that paper again.

        • Langjokull area is certainly interesting. I think generally it is assumed to be a less active version of Vatnajokull but it looks in reality like the only similarity is that there is a glacier and volcanoes in the same place… .

          That double eruption was Lambahraun and Thjofahraun, I read about that exact paper just today as it happens 🙂
          Problem is GVP considers Lambahraun a part of Langjokull which is fine, but Thjofahraun to be part of Hengill but this doesnt seem likely, its on the wrong side of Thingvallavatn and Hengill isnt tall enough. Thjofahraun is I think probably an example of a hell machine, its a 1 km3 fissure eruption but it took place in multiple stages suggesting a long duration, and theres no really large scale lava flows like we see at Holuhraun. The current eruption might end up looking very much like this in the end I think.

  7. Taal is once again, experiencing tremors and earthquakes, it looks it’s time for some explosive volcanism, Especially with these activity in st Vincent. I am on top on these volcano like butter on toast!

    • Please keep us posted. The Icelandic eruption is tending to catch attention, but Taal and La Soufriere are very important, too. Especially for those living near them!
      Thanks, Tallis!

  8. I am wondering if there is another fissure. Little one nearer the cam. It seems to be pulsing more than Lava flow. https://www.ruv.is/frett/2021/03/18/bein-utsending-fra-gosstodvunum-nyjar-sprungur-opnast?fbclid=IwAR1HjP9wEFNW2bLIaJQj5X96BK8NJsTadE35FC7d0OeEXDJtzzunerfxebg

    The two Belgian tourists who got lost deserve to be charged for the added costs in time and effort of the Iceland emergency services. They have enough to do monitoring the progress and watching out for the local inhabitants. Those people manning vehicles and aircraft must be really tired . Not a usual day at the office for any of them, especially as there is the possibility of fissures opening just about anywhere in the area.

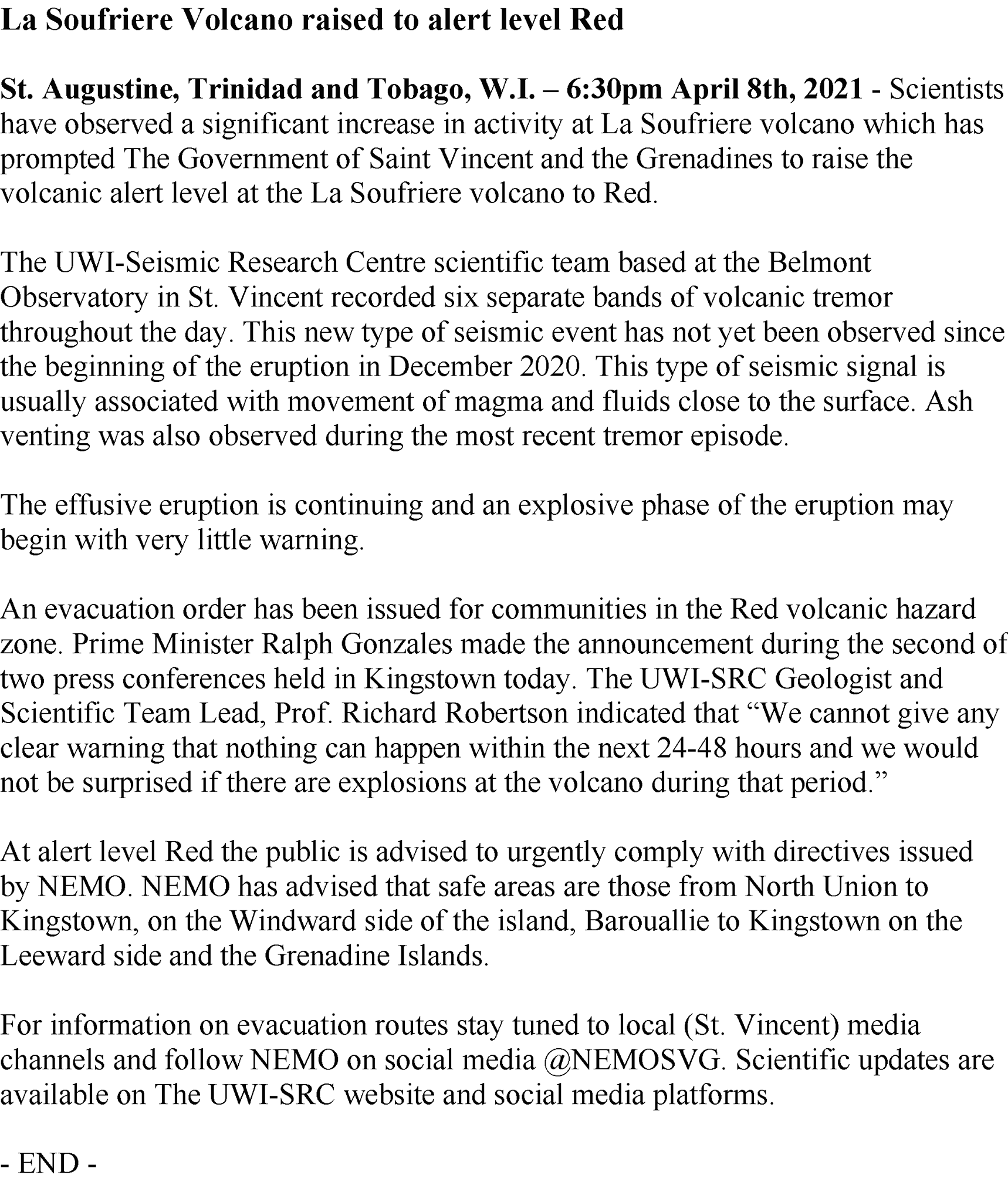

  9. La Soufrière is about to go brrrr… Seismic signals, a glowing dome and lots of white smoke (what could go wrong?) Hopefully they get all the people out of the way before it goes. Twitter is full of images of roads clogged with cars trying to get away as quickly as possible.
