I’ve never played poker but I already know that I’d be terrible at it. I’m good at reading people but terrible at keeping my mouth shut when I am excited. I’m the type of guy to scream “I’ve got a royal flush!” if I were to get one. A royal flush, consisting of a King, Queen, Jack, and a 10 is the best possible hand in poker but it seldom happens. Like the world of poker, the world of volcanoes is chaotic and driven by chance. There could be several decades without a major eruption, or a major eruption per decade for several decades. A good example of a volcanic royal flush would be the 1780-1820 volcanic cluster, in which the infamous Laki eruption (Q), the 1808 mystery eruption (J), and the great Tambora eruption (K) rocked the world. Other examples would be the Sixth Century volcanic cluster consisting of UE 535 (Q), UE 540 (K), and UE 574 (J) and the 10th-century cluster of Eldja (K), Paektu (Q), and Ceborocu (J). As dramatic as it sounds, the chances of a rapid succession of large eruptions aren’t that slim, most centuries see around 3 or 4 VEI 6 so every decade has around a 30-40% chance of seeing a VEI 6+ eruptions. So every 40 years there’s more than a 1 in 81 chance of seeing a royal flush. Still more likely than seeing a VEI 8 eruption. One could only imagine the damage such a cluster would do nowadays but I’ve already written about a volcanic apocalypse so that won’t be our point of discussion. Since there is a relatively decent chance (in comparison to other Global threats) that the world could see a volcanic flush, let’s play some bets. Chances are that the next big eruptions of the century are building up right now, some could be ready to go in months, some in years, and some won’t be ready for decades or even centuries. It’s anyone’s game and while intelligence plays a role, it is impossible to know with any certainty which volcano is actually going to deliver at this stage.
King
I am dying to hear your hands and as an act of courtesy in this game, I’ll reveal mine first. What better way to start than with King? I’ve thought about the role of King and only one volcano should be assigned the role as it has no major detractors to its chances of producing a major eruption. Trust me, I’ve tried to think of some because I wanted another volcano to take the role of King but there was scant competition. The volcano needs no introduction, King is assigned to the extremely impressive and terrifying, the currently erupting Ioto or Iwojima depending on your naming preferences. I know this isn’t a very original choice for N.1 as this volcano is ranked number 1 on the famous NDVP, but some things aren’t really disputable. There’s only one other volcano that I can think of that seriously challenges Ioto for the role of king. As far as we know Iwo-jima is the fastest-inflating volcano on the planet, rising 50 meters since 1779 with the past 10 years seeing over 10 meters of uplift!

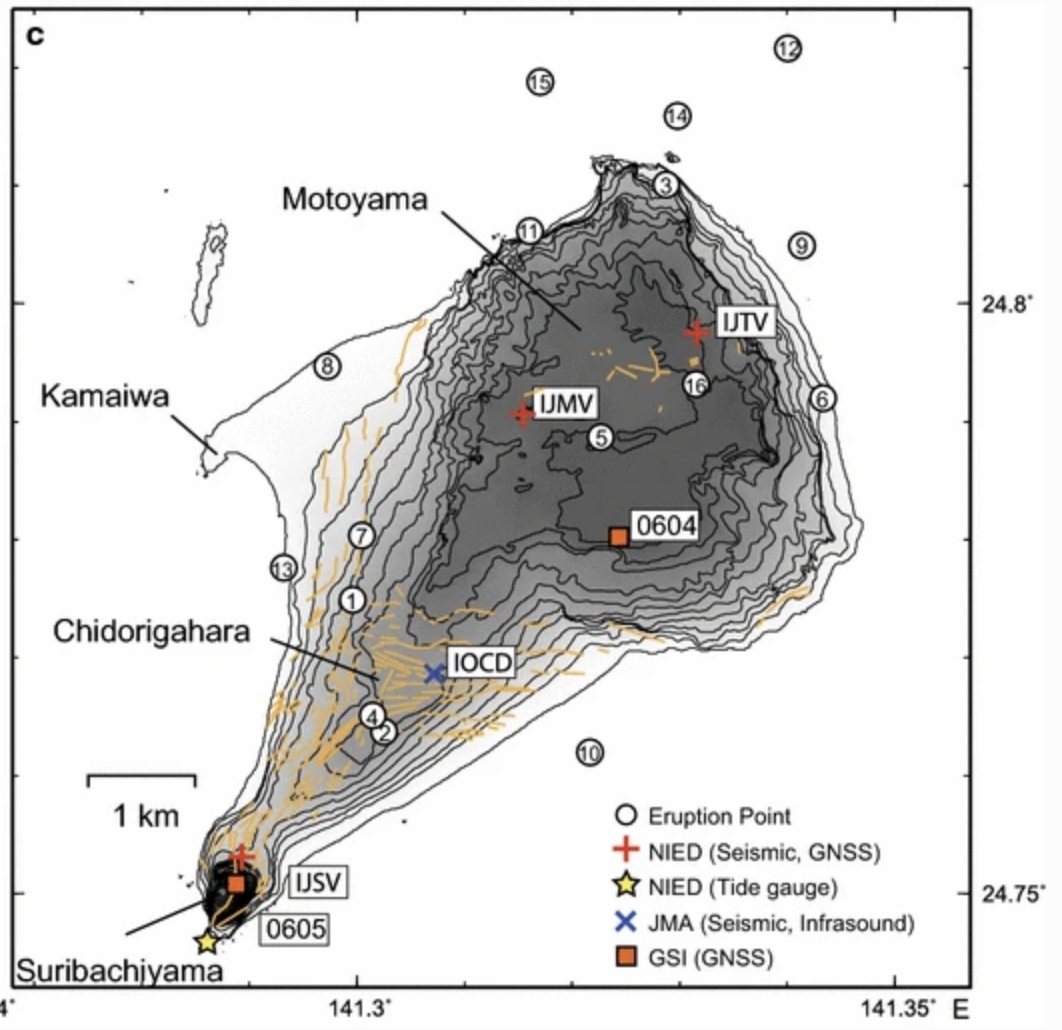

Iwo Jima. Source https://earth-planets-space.springeropen.com/articles/10.1186/s40623-018-0811-y Station X086 is located 500 meters north of IOCD. See http://geodesy.unr.edu/NGLStationPages/stations/X086.sta
Shifts in horizontal deformation have also been noted. The X086 station has completely changed from west to east over the last 5 years, while the other station’s westward movement accelerated. An interesting development but I don’t know the cause behind it.. The volcano has been resurging for 700 years now and only now is starting to produce magmatic eruptions. While previous explosions (indicated by the numbers on the map) were phreatic, the 2023 eruption produced a new cone.
Iwo-Jima had 25 confirmed (phreatic) eruption between 1890 and 2010. The took place at locations 1 to 10 on the map – most were at location 7. The locations follow a (very) approximate circle, indicative of a ring fault, surrounding the resurgent done of Motoyama (number 5 on the map) which is the apparent centre of inflation. In 2012 an earthquake swarm indicated an acceleration of events. This was followed by a series of 23 eruptions over the following few years, most at location 1. The large event of October-December 2023 build a new island at location 10. The movement of site X086 to the north-northwest, directly away from the 2023 eruption centre, suggest that the magma had been building around this area since at least 2016. After the 2023 eruption, the horizontal movement changed and became more easterly. It seems likely that the movement is due to a continuing inflation of a deep reservoir underneath the centre of the island and a growing shallow reservoir on the southern rim, where the pressure from the latter relaxed after the 2023 eruption. Station 0605 is moving rapidly southwest, 0604 is moving northeast and X086 is also moving northeast. The next eruption could be near location 1 on the map.
The volcanic island is the only surface representation of a large 9 km wide caldera that was formed around 100,000 years ago with other large eruptions taking place since then. The inflation is being caused by an extremely strong persistent deep magmatic intrusion, the best kind of intrusion for large eruptions. The magma chamber is likely as molten as you can get and could have an unstable mixture of Trachyandesite, Trachydacite, and Basalt.
The extreme resurgence in conjunction with the first magmatic eruption in at least 1,300 years should raise some brows. The last 100% confirmed magmatic eruption was dated around 850 B.C so this could be the first true eruption in almost 2,900 years. This terrifying volcano did not produce a terrifying eruption. We got a relatively peaceful island-expanding eruption, and it’s completely possible that this type of eruption is all the volcano will do in the foreseeable future. Even the baddest of volcanoes produce harmless eruptions. The question is are things going to stay harmless? Don’t know but that doesn’t mean we can’t discuss the current situation! The last eruption was small and persistent so I can think we can approximate some facts with this. Whatever magma is erupting now clearly is not very volatile otherwise we’d be looking at a more visually spectacular eruption. No major swarm or shift in deformation preceded this eruption so nothing big has broken yet. I think this eruption is primarily fed by less volatile magma from its shallow system that is being destabilized by the intrusion.
The chances of a large eruption depend on how exactly the intrusion is influencing the shallow system. There are two solutions in my opinion, either large amounts of heat and gas from the deep chamber but no or little magma has reached the shallow system causing a persistent small eruption or magma from the deep chamber has entered the shallow system and is slowly forcing the less volatile magma out of the system. With Solution N.1, a large eruption is less likely since a small amount of magma would be active while with Solution N.2, a large eruption would be more likely with more quality magma being on the way to the surface from a large body of magma. I think the lack of strong seismic activity gives more credence to the former but the latter solution is still completely possible.
Another extremely important question is how big of a role will water play in the coming months to potential years. In comparison with the eruptions that preceded the Hunga-Tonga Explosion, the previous eruptions were not big enough to react to seawater. The factors that will decide this volcano’s future will be discreet and could be hard to track. So before I talk about the volcano, let’s just remember that it is possible that things won’t escalate and the volcano will only produce fun eye candy. We also have to remember that this volcano is nothing to be trifled with. This volcano is capable of producing a violent eruption like Tonga or Krakatoa. In fact, I think it has more destructive potential than both. Unlike Krakatoa, the volcano isn’t surrounded by a shallow strait but by deep water, and unlike Tonga, there is a strong chance of a vent that won’t be smothered by water since more of the island is exposed to the surface. The volcano is way bigger than Krakatoa and Tonga standing 1.5- 2 km high and 40 km wide and it is plausible that this volcano could peak at VEI 7 and not a 6.
Obviously, if the volcano does decide that it wants to be in our history books, the biggest concern will be the tsunami and volcanic winter and since it would be folly to try and anticipate the sulfur budget of an eruption like this, let’s talk about the tsunami since we could at least crunch some numbers. The Hunga Tonga eruption crushed the idea that volcanic eruptions couldn’t produce long-distance tsunamis and gave us some new insights into how these eruptions work. Please watch these incredible videos on the Tonga and Krakatoa Tsunamis, All credit goes to Ingnomar200.
The depth of water surrounding Ioto is similar to that of the water that surrounds Tonga, almost perfect conditions for comparison. There are 3 major causes for volcanic tsunamis: Ignimbrite emplacement through column collapse, large explosions, and landslides. Unfortunately, Ioto looks capable of doing all 3 and to get an idea of how big the tsunamis could get, we’ll be considering 3 scenarios. Scenario 1 (Low-end VEI 6 akin to Hunga Tonga), Scenario 2 (Mid-end VEI 6 akin to Krakatoa), and Scenario 3 (An extremely explosive low-end VEI 7 with 40 km3 DRE of magma). If the blast was the main proponent of the volcanic tsunami for S1 then it would be identical to the Tonga tsunami (obviously). In this case, the Ogasawara islands would see the largest run-up probably maxing at 45 m and the sparsely populated Bonin Islands and Izu Islands would likely see much smaller but still significant wave heights. Mainland Asia and Japan would see much smaller tsunamis in the range of 1-5 m. The Tonga Tsunami was initially much larger than earthquake-driven tsunamis at around 90 m but degenerated in height MUCH quicker. The Tonga Tsunami had the same or just a little less energy than the Tohoku Tsunami, around 3.0e+15 J or 717 kilotons of TNT.
A column collapse has way more energy than even the largest volcanic explosions. A low-end VEI 6 could produce 1-2 km3 (DRE) ignimbrite through column collapse. Using the potential energy formula, I believe we can get a rough idea of how energetic these events are.
PE grav.=m×h×g
Using 1 km3 of magma for this example, we get a mass of 2.5 trillion kg, for height, we will just 30 km since the mass won’t be evenly distributed across a 50-60 km high ash cloud. We get the value of 7.355e+17 joules or 175.8 megatons worth of energy. A lot of that energy is going to be lost in the atmosphere due to wind resistance and other factors so only a half or even less would make it to the surface. Assuming that a third of the energy makes it to the surface, and only 5% of that makes it into the tsunami, we get a total tsunami energy of 1.213e+16 J or 2.9 megatons (4 times more than the Tonga tsunami).
The Issue with PDC tsunamis is that they need to happen in Goldilocks conditions to be effective. The Column collapse has to be from a super-explosive eruption not just your run-of-the-mill eruption. The volcano needs to be high enough above the water so that the vent doesn’t get smothered with water but not too high so that the volcano absorbs most of the energy from the collapse. Needless to say, there are not a lot of volcanoes like this.
If Ioto decides to do something a bit larger akin to Krakatoa, then we’ll start to see some problems. Recency bias for Hunga Tonga aside, Krakatoa was significantly worse in all areas. The total explosive energy for Hunga Tonga was 65 megatons, while Krakatoa was worth 200 megatons. Krakatoa was bigger and badder than Tonga was. The eruption taking place in the shallow Sunda Strait likely limited its range. If we see a blast-generated tsunami for S2, we could see a tsunami 3 times larger than the Tonga Tsunami, and Mainland Asia could see run-up heights ranging from 5-15m. A PDC-generated Tsunami would be even worse, with 11.6 megatons worth of energy. The eruption for S3 would be 2.5x larger and more energetic than the Krakatoa eruption, so the potential tsunami energies would be scaled accordingly. This gives us 5.4 and 29 megatons for both potential blast-generated and PDC-generated tsunamis with Mainland Asia receiving minimal run-up heights of 12.5-37.5 m with the potential for significantly larger waves. A landslide tsunami could also be on the cards with how massive the volcano is and the possibility of the deformation destabilizing the structure of the edifice but there is no study into landslide possibilities at this volcano so I won’t even attempt to give a simulation. Ioto has no major detractors to the potential of a major eruption and has scary tsunami potential. It is by far the best volcano to take the name of King.
Queen
“Dormant volcano awakens” headlines always get my attention but piss me off at the same time Just because a volcano is undergoing intrusion doesn’t mean it’s going to erupt, in fact, it doesn’t even mean that an eruption is likely. It’s fun to talk about volcanoes like Laguna Del Maule, Uturunucu, Kikai, and other resurgent calderas but nothing suggests that a major eruption is likely over the next century. Caldera volcanoes spend most of their time building magma and not doing anything so the behavior we see at these volcanoes is completely normal and isn’t worthy of the title of queen. One long-thought dormant volcano, Cerro Negro De Mayasquer or Chiles-Cerro Negro is not going through these normal motions and is looking scarier as the years roll on. I’ve already written too many articles so please read my previous piece on this volcano if you want its history. I will only be talking about the volcano’s current activity and its implications in this piece
The most recent swarm was without a doubt the most chaotic of the 5 swarms with 1 monthly pulse of high quake activity that lasts for a week before dropping back down to low levels, rinse, and repeat for four months. I initially thought that this swarm was the result of Hydro-thermal disturbances but this is definitely not the case. The official cause for the swarm was “Complex interaction between the faults, magmatic, and hydrothermal system.” but I completely disagree. Observations of the Hydrothermal system showed no significant disruptions and I have not seen a single tectonic earthquake take place at the volcano either. Inflation accelerated rapidly, going from 0.8 cm/month in July to 2 cm/month in October and reaching 5 cm/month in November. These facts don’t support a tectonic or hydrothermal origin behind the most recent swarm.
While uplift abruptly ended in December another development has caught my eye. After 18 months of silence, the inclinometers are starting to move at a pretty quick pace with peak speeds around 8 µrad/day so far. Since December, Cumbal has experienced a significant uptick in seismic activity. Cumbal’s seismic activity is caused by the hydrothermal system which is being destabilized by stress on the tectonic faults. A similar situation preceded the 2021 quiet period, and the volcano has seen weaker seismic activity over the several weeks. So I wouldn’t be surprised to see a few months or even a year go by without a major swarm. However, shifts in the Inclinometer and a seismic swarm at Cumbal all point to potentially significant stress on the regional fault system which is almost definitely somehow related to Chiles-Cerro Negro.
We are starting to see persistent VLP earthquakes at depths ranging from 1-2 km. (The reports don’t specify if it’s 1-2 km below sea level or the summit!) This is likely related to the movement of magma. During the swarms of 2022-2023, magma ascended at least 2 km, and depending on where the magma is now, the volcano may need just a few more big pushes to erupt. If the magma is 1-2 km below sea level, it might take 3 more seismic crises of similar magnitude to bring an eruption, and if the magma is 2 km below the summit just one more swarm could be enough.
Any lurkers in the comment section will remember the “Great Dike Debacle.” I brought up the existence of a dike intrusion below the volcano but the presentation was poorly written and the parameters brought confusion.
Tallis, think I figured out your dike mystery. By width they mean the height of the dike. The volume change they give equals the length X ‘width’ X opening. So it can’t be horizontal width, rather vertical.
Which makes much more sense than an 800m wide dike anyway. I’m guessing it is so insanely seismic for the same reason Fagradalsfjall was, not being active for many thousands of years so very cold, hard rock. But trying to interpret the challenging language, it sounds like they don’t think the structure was created this year. It just added 0.04km^3 over this year by widening 0.24m. And has been growing for at least 9 years. So large structure still, at least a few tenths of a km^3.
600k over those 9 years versus Fagradalsfjall’s 40k before erupting, though Fagradalsfjall skewed larger with more ≥4.5 magnitude quakes
Reyvolk
54 km3 (assuming that the width is given horizontally rather than perpendicular to the dike). Which of course is completely unrealistic. A dike can be 8 meter (a very large one). Not 800 meters. That would require the rock on either side of the dike to be pushed by several hunderd meters. If you meant a width of 8.01 meters, divide the volume by 100
Albert
The dike isn’t 54 km3, it probably delivers around 0.004 km3/yr of magma to the shallow chamber which is not a lot of magma. I say probably because Dr. Mothes, (Chief of the IGEPN) takes the numbers with a grain of salt. It seems impossible, could such a small intrusion cause so much instability?
“Volume Changes are very uncertain, going from 3 million to 30 million m3 which is not a good constraint whatsoever.” Patricia Mothes
Studies have shown that current inflation is the result of the magma flowing into a large shallow magma chamber. The last study located the chamber in a region with width of 15 km and with a height of 8 km yielding a maximum volume of 1,413 km3 of magma but this isn’t the only magma body beneath the volcano. During the final years of 2020, 500 deep long-period earthquakes shook the volcano with distance extending up to 5 km northwest of the Cerro Negro cone or 10 km away from the uplift. Keep in mind that inflation didn’t change at all when this happened so these quakes weren’t the result of the intrusion. These quakes were likely the result of a magma movement within a deeper chamber.
In 2022, there was another wave of deep long-period (30km+) earthquakes that shallowed to 4 km below the summit in one month. This was clearly the result of rapid magma ascent and as the magma shallowed, the uplift at the volcano intensified. The uplift at this volcano has been chaotic. Going from 20 cm in a few months in 2014 to almost zero in the later portion of the same year to a steady 3-5 cm a year from 2015-2020, back to zero in 2021, and finally going off/on for 2022-2023 juggling between 5 cm/month and zero. That is not indicative of a typical magma intrusion, the current unrest is likely being caused by magma from the deeper chamber moving into the shallow chamber. The extreme instability in deformation could be explained by the shallow chamber receiving a fluctuating supply of magma. However, if the chamber briefly loses supply and stops inflating from time to time, we should still see uplift from the deeper chamber if it was under intrusion which we don’t. Looking back at the start of the first swarm in 2013 caused by the supposed magma intrusion, it was highly erratic and didn’t have the same behavior as other volcanoes under the same circumstances. The hydrothermal system has only slightly warmed in the past 11 years. These circumstances lead me to question if the volcano is even under intrusion in the first place. The Wah Wah Springs eruption was not preceded by an intrusion, so volcanoes can erupt without intrusion.
This volcano is a mysterious enigma! The IGEPN doesn’t know why seismic activity is juggling between Potrerillos-Chalpatan and CCN and I don’t either! Inflation has flipped on/off and changed intensities 7 times in the last 10 years. Simple questions don’t have any concrete answers, How much magma is going into the system? We don’t know. Why is the seismic activity and inflation so erratic? We don’t know. How big is the system? We don’t know! For me two facts are certain, magma is rising and this isn’t the volcano’s first rodeo
In 1868, 2 earthquakes rocked Northern Ecuador, killing and injuring 70,000 people. One of the quakes was 6.3 was located in the El Angel region, 20 km away from the Chiles volcano which is within range of the volcano’s influence. The other quake was 50 km away and might not be linked to the volcano. I can’t definitively prove these quakes were related to unrest at the volcano but the reality is that this volcano has been restless for years, likely centuries. If the volcano was as extinct as some thought it was, the unrest wouldn’t have escalated so quickly, and just because the volcano was quiet when it was first recognized doesn’t mean it’s been quiet since its last eruption. It is impossible for < 1x10^7 m3 intrusion to bring a 1,400+ km3 dormant plugged chamber this close to erupting after just 11 years. Much larger intrusions have hit more active volcanoes for longer and have never gotten close to where we are with Chiles-Cerro Negro.
The only thing keeping this thing from erupting is one plug, one plug that’s been around longer than Human civilization, it might last another 10,000 years or might not last another 9 months. It depends on what exactly is causing the extraordinary escalations at this volcano. As someone who’s been tracking this volcano for almost 10 years now, this volcano has done nothing but escalate and unless the unrest stops soon, things will only continue to escalate.
Jack
For Jack, I going to cheat a little. I won’t be assigning Jack to a single volcano, instead an entire region will take the role. The most volcanically active and interesting region of this century so far, Iceland will take the role of Jack. More specifically, Katla, Grimsvotn, Hekla, and Oraefajokull. All 4 of these volcanoes have been under prolonged unrest, and have a history of producing big sulfur-rich eruptions. I’ll rank the volcanoes based on how much faith I have in them to deliver a large eruption, and I will start with the one I have the least faith in, Oraefajokull. It is famous for being the most voluminous and highest volcano in Iceland and infamous for it’s massive deadly VEI 6 (Icelandic VEI 5) eruption in 1362. This volcano has been under magma intrusion for the past 7 years causing inflation and elevated seismic activity. This an interesting volcano but the unrest is as boring as you could get. Less than 10 million m3 enters this system yearly, with peak inflation at about 4 cm/year. Not very impressive, the volcano is the least active of the 4 while undergoing the least intense unrest. It looks like this will be either your typical harmless magma intrusion or slow charge before its future eruption.
My favorite Icelandic volcano is Katla for pretty obvious reasons. It is one of the most prolific explosive volcanoes producing 4 Icelandic VEI 5s and a minimum of 12 Icelandic VEI 4s in the last 1100 years, On top of this it produced the largest effusive eruption in the last 8,600 years. Capable of fantastic felsic eruptions or massive mafic blasts, this volcano is a beast among beasts. Ever since Iceland was settled, Katla has etched its fearsome potential into the skulls of the people of Iceland. However, even the baddest of volcanoes need breaks and that’s exactly what seems to be what’s happening now. The volcano is experiencing the longest period of dormancy ever recorded and uplift at the volcano is weak but seismic activity is consistently high. In fact, there is been an uptrend in seismic activity in the past few years with consistent deep quakes representative of magma movement. Despite being the most infamous volcano in Iceland, it is arguably the most mysterious.
In my opinion, the volcano is either undergoing a persistent small intrusion or has a high yearly supply. Given this is Katla we’re talking about I am inclined to believe the latter. I believe the current activity is being caused by the hydro-thermal and/or the largish shallow magma chamber (a little over 10 km3) There is nothing currently going on at the volcano to suggest a large eruption is on the cards in the next few years. This could easily change if the volcano gets stronger intrusion and a long repose time for Katla could easily bolster the size of its next eruption but until that happens, its chances are low.
Hekla is responsible for around 10% of Iceland’s tephra in the last 1000 years, known for it’s youth and unpredictability. Hekla is undoubtedly one to watch. For the last 20 years, it’s been inflating relatively quickly and has long since recuperated the magma it lost in its 2000 eruption. Hekla has a bad habit of erupting large amounts of the magma it builds during dormancy so a long dormancy will definitely give way to large eruption. Hekla has a decent shot at producing a VEI 4 in the next decade. Unfortunately, we have no idea how close it is to producing an eruption, and the volcano is not known for giving warning signs. This means that it could spend 100 years sleeping or erupt next week. Amongst the 4 volcanoes mentioned, Hekla has the lowest high in terms of its eruption size. I think Hekla has a greater chance of erupting over the next few years than Katla but I don’t think it would produce a Katla-sized eruption without a longer recharge period.
I’ve had my fair share of disagreements and debates on this blog but I’ve usually understood the alternative angle. I understand the skepticism behind CCN’s “dike” and my opinion on volcanic tsunamis but there is one debate that I don’t understand the opposing views argument. If I were to bet on 1 Icelandic volcano for a large eruption in the next few years, I’d put 90% of my money on Grimsvotn
Grimsvotn seems to be on a roll over the last 240 years, producing 2 VEI 4s after giving us the massive Laki eruption. You’d think that after so many large eruptions, it’d be ready to sleep but on the contrary, the volcano is doing better than ever. I’ve heard some say that the 2011 almost VEI 5 eruption was a 1 in 1000 year event for Grimsotn and the climax of the multi-decadal volcano uptick and as such the volcano will need more time to recover. That is after all the average pattern for a volcano such as Grimsvotn but the truth lies in the data and the data doesn’t support this argument in the slightest. GPS data shows that the rate of inflation at Grimsvotn pre-2011 has been maintained post-2011 with no downtrend noted. The multi-decadal uptick clearly hasn’t ended. There was around 30 cm of uplift preceding the 2011 eruption and currently uplift has reached 80 cm. The volcano has smashed preceding levels of Cumulative Seismic Moment, and the volcano’s hydrothermal systems have been heated to the extreme once again surpassing the values of the 2011 eruption.
None of this points to a downturn in activity that would give way to a small eruption. More magma means more pressure, more pressure usually means a bigger eruption. Let us not forget that the magma that erupted in 2011 was very primitive and hot and there is likely 2.5x more of it than there was in 2011. Of course, the size of the eruption will depend on more discreet mechanisms and it’s possible that we’ll see a smaller VEI 3. A VEI 3 would only be a hiccup in terms of the current supply and not relieve the volcano enough to deny a larger eruption.. The volcano recovered the magma it lost in its 2011 eruption after 4 years. Think about it for a sec, the 2011 eruption produced 0.8 km3 of tephra or around 0.2 km3 of magma DRE and Grimsvotn got that magma back in 4 years. This means that this volcano has been getting a VEI 4s worth of magma per year! A VEI 3 is NOTHING to the volcano now. It is also possible that the dormant magma from the chamber has been activated by such a high rate of magmatic influx. This isn’t Ioto or Chiles-Cerro Negro where these volcanoes have not developed their shallow magma systems before they erupt big. Grimsvotn likely already has a strong shallow system due to its frequent activity. I am not saying that the next eruption is going to be like Laki but I wouldn’t doubt a VEI 5.
The volcano is so active that an eruption is pretty much guaranteed in the decade so there is almost no argument for it remaining dormant for 15+ years. The volcano has more magma, more pressure, more heat, and likely has more strain than the last eruption. So a larger eruption is not only possible it seems probable. I’ve noticed that there’s been a significant seismic uptick 16 km to the NW of Skafatell along with some decent inflation with minimum values of 4 cm/year. The inflation looks to have started in 2019 with the seismic activity. I don’t know if this related to Grimsvotn but it caught my eye.
Conclusion
I believe I got a good trio with Ioto(K), Chiles-Cerro Negro( Q) and Grimsvotn (J). I think Chiles-Cerro Negro has the potential to produce the largest eruption of the 3 while Grimsvotn has the highest chance of producing a large eruption. Iwo-jima has a higher chance of producing a large eruption than Chiles-Cerro negro and can produce a significantly larger than Grimsvotn, just another reason why it takes the role of king.
Of course, we’re missing a face card, a card that seldom shows itself but its value is fluid and can even overtake the king in terms of worth. The Joker Card.
When you gamble, the more risky bet yields the most rewards and forecasting follows similar rules. No one is impressed by one who goes with the river or the consensus, people find rebels and the insane more fascinating than the average worker and soldier.
We can speculate on potential volcanoes but the reality is that a vast majority of volcanoes are unmonitored and not studied. Our past experiences with large eruptions do not apply to every volcano. Some volcanoes don’t awaken with an ultra-dramatic swarm or a high inflation, some volcanoes awaken very slowly, and after the slow process is complete we see signs of an eruption. We’d assume that the volcano has just awoken while the climax could be just a few weeks to months away. It is possible that Ioto won’t produce an explosive eruption, Cerro Negro would opt for a large felsic lava flow, and Grimsvotn could do a series of VEI 4s and 3s to relieve itself. All the while another volcano gives us our large eruption. Anyone who’d say a volcano that looks quiet and unassuming has the potential to produce large eruptions would likely be dismissed but they could be right! If their forecasts were verified, they’d solidify themselves as legends. It’d be a risky bet though. A volcano catching the world by surprise with a major VEI 6+ is unlikely but not impossible. For the role of Joker, I would like to know your pick for a volcano that looks to be unassuming and harmless and that you believe to have the potential to generate a large eruption in the near future. The role of Joker could go to a slew of volcanoes, some that I am not even aware exist! I think Tatun, Udina, and Laacher See are good contenders for the role of Joker but that’s a story for another time…
To be continued?
