Rock, rock, rock

There are only three types of rocks. This may be surprising, seeing no two rocks are the same and geologists use a never-ending series of names for these rocks, from abelsonite to zykaite. Names are what makes geology so hard. Henrik has written about gem stones, in a highly recommended post. But here I want to look broader.

There are only three types of rocks. They differ in how they were formed. As you may imagine, it is not easy to form a rock. Grabbing a hand full of sand and squeezing won’t do. You either need to apply much more pressure (something like the weight of a mountain) or much more heat (sufficient to melt the sand). The Earth has solved the problem in three different ways.

Left: metamorphic rock (schist); middle: igneous rock (granite); right: sedimentary rock (banded iron formation)

The first is by taking an existing rock and subjecting it to high temperature and pressure. This can do two things: the rock becomes soft and deforms, and the minerals can change into another form. The rock metamorphoses: it is now a metamorphic rock. Examples are slate and marble.

The second is by sedimentation. The process breaks up existing rock, either by erosion or by dissolution followed by the reverse process, chemical precipitation. The fragments are brought together by wind or sea. Once a deep layer of sediment has accumulated, the pressure can push the particles together. This is sedimentary rock. Examples are shale, chalk and sandstone.

The third is by melt followed by solidification. This happens in volcanoes, and produces igneous rocks. They may be intrusive, meaning that that they remain below ground, or extrusive, meaning that they erupt as lava and solidify on the surface. Examples are basalt, rhyolite and (for specialists) gabbro. As this is a volcanic blog, I will focus here on these igneous rocks.

Naming

Igneous rocks are named for the minerals (composition) and the size of the crystals or grains they contain. The graininess shows at what depth to magma solidified. Surface flows (lava) cool fast, and the grains have little time to grow: the crystals are small and the rock is fine grained. Deeper magma cools slow and forms larger crystals: medium-sized grains form at intermediate depth (dikes and sills) and large grains (coarse-grained rock) forms at large depth, typically in deeper magma chambers.

There is a large variety of minerals. Silicates contain silicon and oxygen. Olivines and pyroxenes are silicates containing magnesium and iron. They are also described as ‘mafic’. If it contains mainly magnesium it is an olivine, if mainly iron it is a pyroxene. The green beach of Hawai’i has olivine sand: I keep some (legally bought!) in my office. If it also contains calcium or sodium it becomes hornblend; this is a member of the amphiboles, a large group of minerals which are in effect an olivine or pyroxene with something added. The iron and magnesium can be replaced by aluminium. Silicates which contain aluminium, sodium, calcium and (or) potassium are known as feldspars, also described as ‘felsic’. A feldspar with sodium and potassium but no calcium is known as an alkali feldspar. A feldspar with aluminium together with sodium and calcium but no potassium is a plagioclase. They can have different amounts of calcium and sodium. A plagioclase with calcium but no sodium is called a calcium feldspar, or anorthite, but it is still a member of the plagioclase family. If it contains sodium but neither calcium nor potassium it is a sodium feldspar, also known as albite. (The name is based on its colour.) Albite falls at the intersection of alkali feldspars and plagioclase and strictly speaking is a member of both families – or of none. Finally, quartz is formed from SiO2.

Mineral

Composition

silicate

Si, O

olivine

silicate + Mg

pyroxene

silicate + Fe

amphibole

silicate + Mg/Fe/Ca/Al + OH/F/Cl

hornblend (an amphibole)

silicate + Mg/Fe/Al + Ca/N + OH/F

biotite (an amphibole)

silicate + Mg/Fe/Al + K + OH/F

feldspar

silicate + Al + N + K/Ca

plagioclase (a feldspar)

silicate + Al + N/Ca

alkali feldspar

silicate + Al + N/K

albite (a feldspar)

silicate + Al + N

(Here, ‘N’ stands for sodium (or natrium) and ‘K’ for potassium (or kalium).) We can now see how several igneous rock types are related. The columns show the common compositions, while each row is for a different size of the grains contained in the rocks

I. olivine + pyroxene

II. pyroxene + plagioclase

III. Alkali feldspar + pagioclase

IV. Quartz + alkali feldspar

fine grained (volcanic rocks)

komatiite

basalt

andesite

rhyolite

medium grained (sills/dikes)

(micro-peridotite)

dolerite

(micro-diorite)

(micro-granite)

coarse grained (magma chambers)

peridotite

gabbro

diorite

granite

Group I is a rare type, formed from pure mantle material and found only in extreme oceanic crust. Group II forms oceanic crust: basalt in the upper part and gabbro in the deeper crust. Groups III and IV are magmas that themselves came from melted oceanic crust. These magmas create continental crust in the process. There are intermediate types between the columns, for instance dacite is intermediate between andesite and rhyolite; granodiorite is the coarse-grained form of this rock. The oldest rock known on Earth is a granodiorite, found in Greenland and dated to 4.1 billion years ago. There is also variation within each column, for instance diorite can contain mainly alkali feldspar or plagioclase, or contain a mixture of both families.

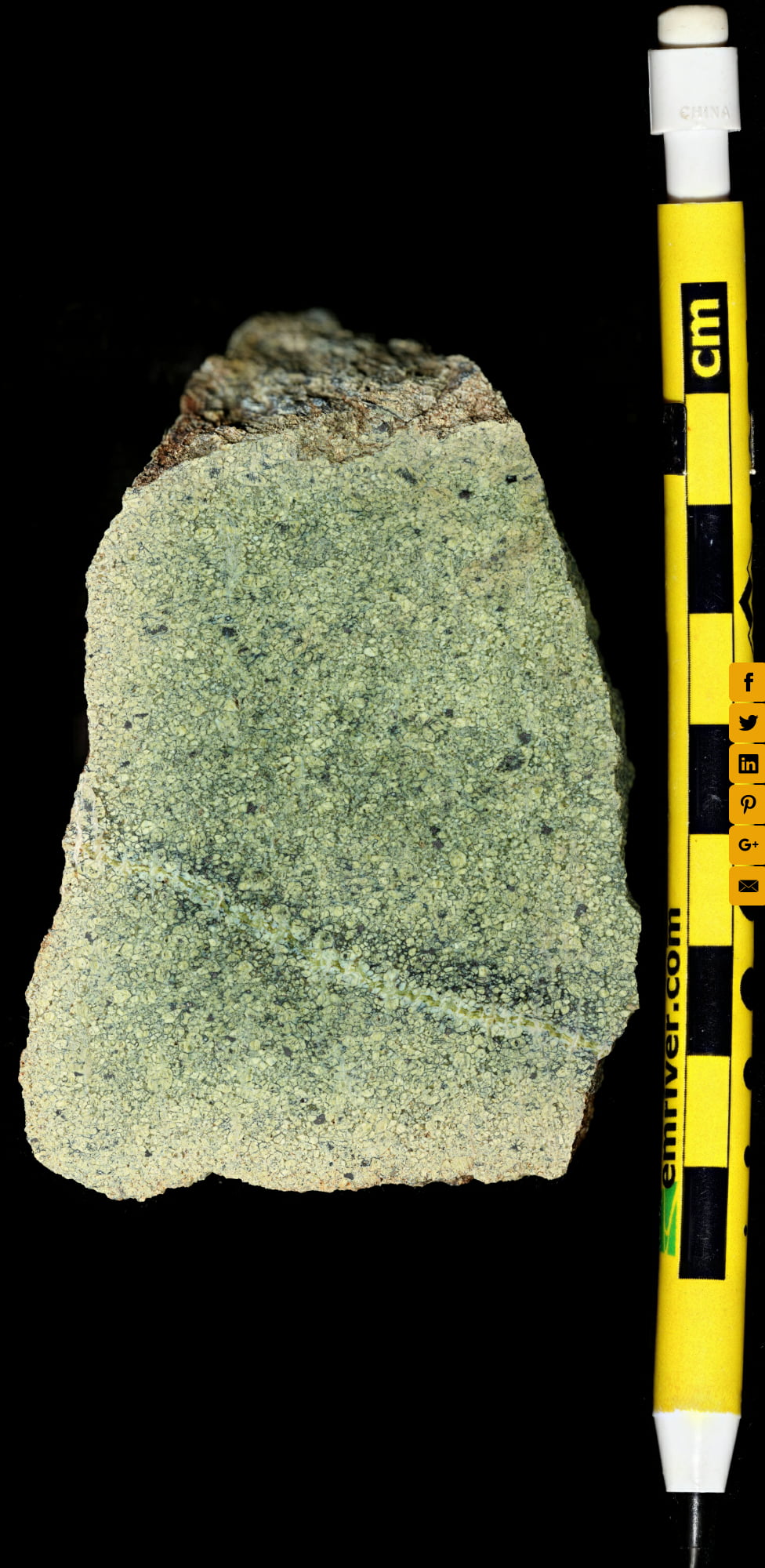

Periodite

Formation

The different groups are in part determined by the magma temperature. The various minerals have different melting temperatures. When magma cools, each mineral will become solid at its own temperature. What is left in the magma are all the minerals that have not yet solidified. This is known as the Bowen sequence. It shows how a very cool magma will consist only of molten quartz, while a magma containing liquid olivine must be very hot.

The Bowen sequence. Source: wikipedia

This is also the reason that magmas from molten oceanic plates are different from those from the mantle. Mantle melt formed the ocean floor, but some of the minerals had dropped out, especially olivine. The oceanic plate formed from what was left. Volcanoes along a subduction zone obtain their melt from the subducting plate. But this lacks the minerals with the highest melting temperatures as they were never in the oceanic plate. Further evolution of the magma can take place as it ages and cools. Subduction volcanoes, the main builders of island arcs and continents, erupt this new mixture. As the highest density minerals have been removed, the crust it creates has lower density. This makes the continents rise above the ocean. (Of course, humanity is busy trying to reverse this and make the ocean rise above the continents.)

There is much more to say about this. The melt and crystallization can form amazing minerals. Again Henrik should be given the last word on this: Mineralisation processes.

Intrusion

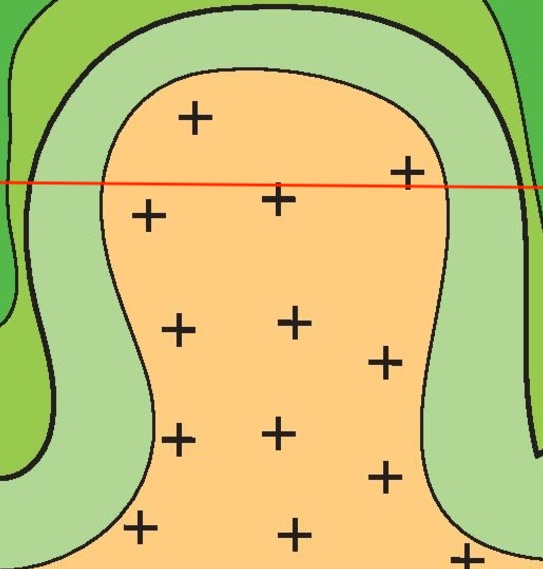

Adapted from wikipedia. The various greens are the original greenstones. The pink area is the granite intrusion. Erosion later removed the rock above the red line. This left an inner core of granite, surrounded by vertical layers of older greenstone.

We now have a continental crust, and for some reason magma begins to collect below. This can come from an oceanic plate below or from melting of the bottom of the continental plate. The melt has lower density than the solid material and rises, but it has higher density than most of the continental plate so it only rises so far. A large collection of melt collects at that depth. A large volume of melt at depth is called a batholith. The batholith may evolve, and as it cools the remaining melt is lower density and it wants to rise. To do so, it has to push the overlying rock out of the way.

The picture shows what happens. The rock is split and the melt rises past the rock. A dome forms which deforms the original rock. In extreme cases the horizontal layers of the surrounding rock become vertical, alongside the intruding magma. We now have an intrusion .

The intrusion may or may not erupt. In either case, what is left underground will eventually solidify, often as a granite or granodiorite but this depends on how the melt formed in the first place.

Erosion now destroys what was created. The dome is removed, and the top layers of the old surface are gone. The red line indicates an imaginary erosion level. At this red line, we see the intrusion in the centre, surrounding by the layers of the original rock. The layers become younger as we move further from the intrusion.

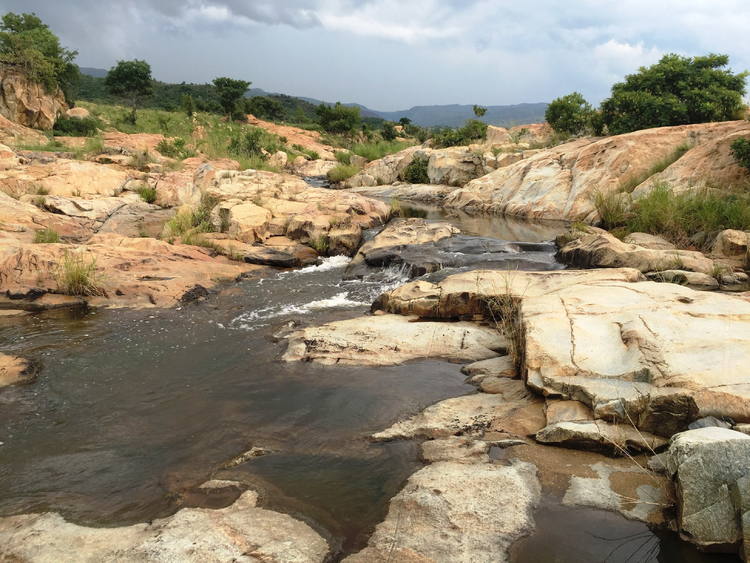

Barberton, South Africa

Barberton, Mpumalanga, South Africa

Southern Africa is build on some of the oldest rocks that are known. Not quite the oldest: Greenland predates it by perhaps half a billion years. But it has the advantage that far more of the ancient rock survives. That is due to a geological accident: Souther nAfrica has remained remarkably well insulated from the rest of the world. In the dance of the continents it remained true to itself, sometimes shuffling against others, sometimes caught by the crowd but always keeping its core identity intact. South Africa advertises itself as the world in a country, with some justification. It also has kept the history of the world. But there are scars. One of those scars is the Drakensberg, formed when a supercontinent split and took a bit of Southern Africa with it. Parts of the Kaapvaal craton are now found in Australia, Madagascar and India, as well as East Antartica and the Falklands. Much has been lost, but much has survived. The ancient heart of the craton can still be seen in the rocks around Barberton, formed when the world was new and the first mini-continents put their heads above water. It shows us how the pillow lavas became river deltas. The oldest rocks here are a granodiorite, with a grey-green colour. Where they reach the surface they are known as a greenbelt, as is the case around Barberton. Here, the rocks are between 3.0 and 3.6 billion years old.

The ancient rocks became deeply buried by younger rocks: sediment and flood basalts, and by later intrusions which formed a granite layer above the old greenstone. These protected the ancient core against erosion. The overlying rocks took forever to erode. Only now have they revealed what lies below. But only in a small area around Barberton. Elsewhere they remain buried under a protective cover. Where they are revealed there is a sharp contrast between the grey-green ancient rock and the pink granite intrusion. The ancients did not survive entirely unscathed. They have been folded: layers that were horizontal when first formed may be vertical now, caused by the granite intrusions which forced themselves into and through the greenstone rocks and deformed them in the process. The granite intrusion has been dated to 3.0 to 3.2 billion years ago.

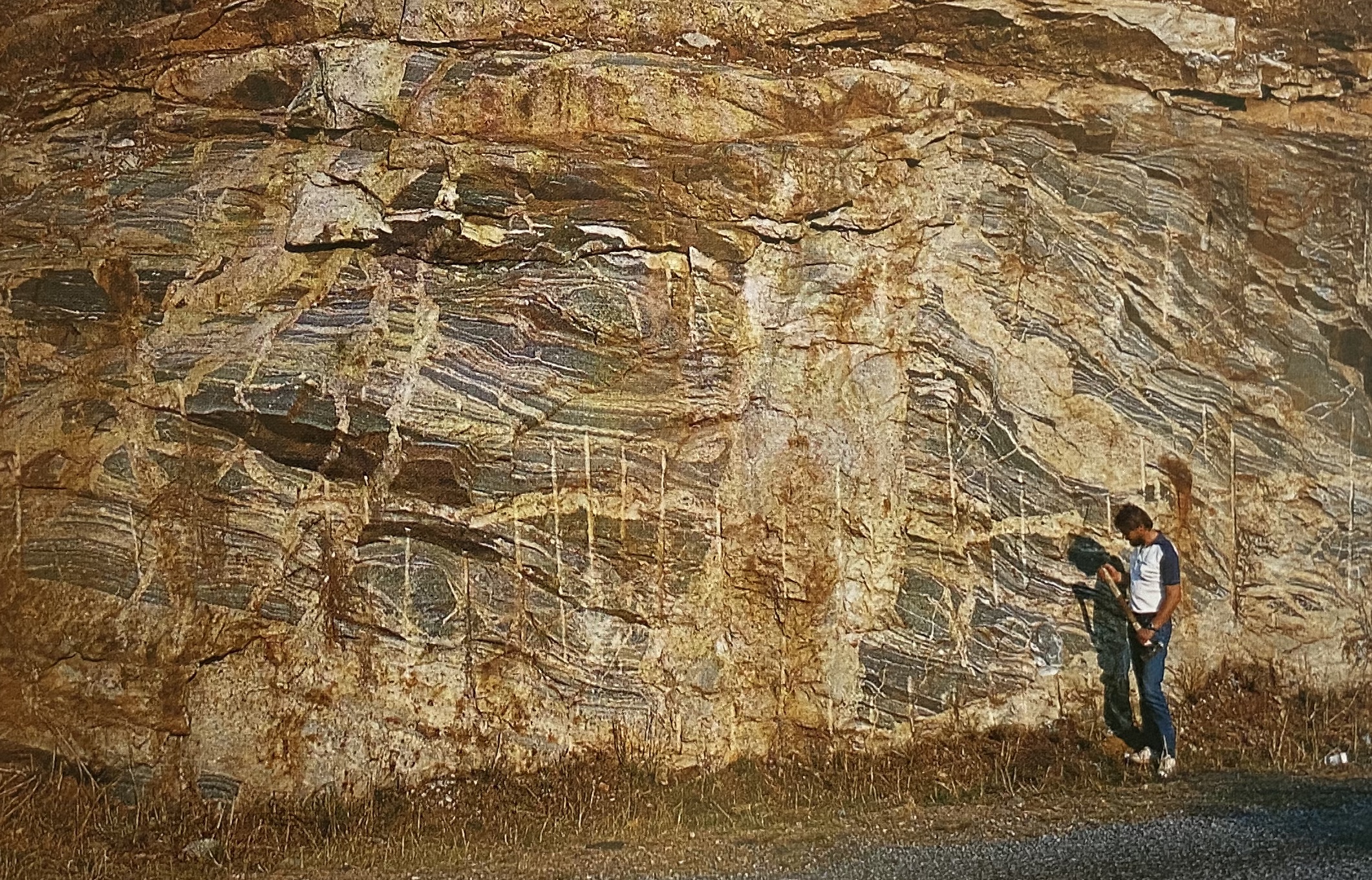

Road cutting at Pigg’s Peak in Swaziland. The grey rock is one of the oldest rock in Africa, a granodiorite formed from calcium feldspar and quartz, dated to 3.644 billion years ago, which formed in proximity to a greenstone. (More correctly it has metamorphed into a gneiss.) The pink(ish) rock is a younger granodiorite from a pagioclase that intruded into the older rock, dated to 3.07 billion years ago. (More correctly it is a feeder dike for the intrusion that formed the Pigg’s Peak batholith.) Photo by Carl Anhaeuser

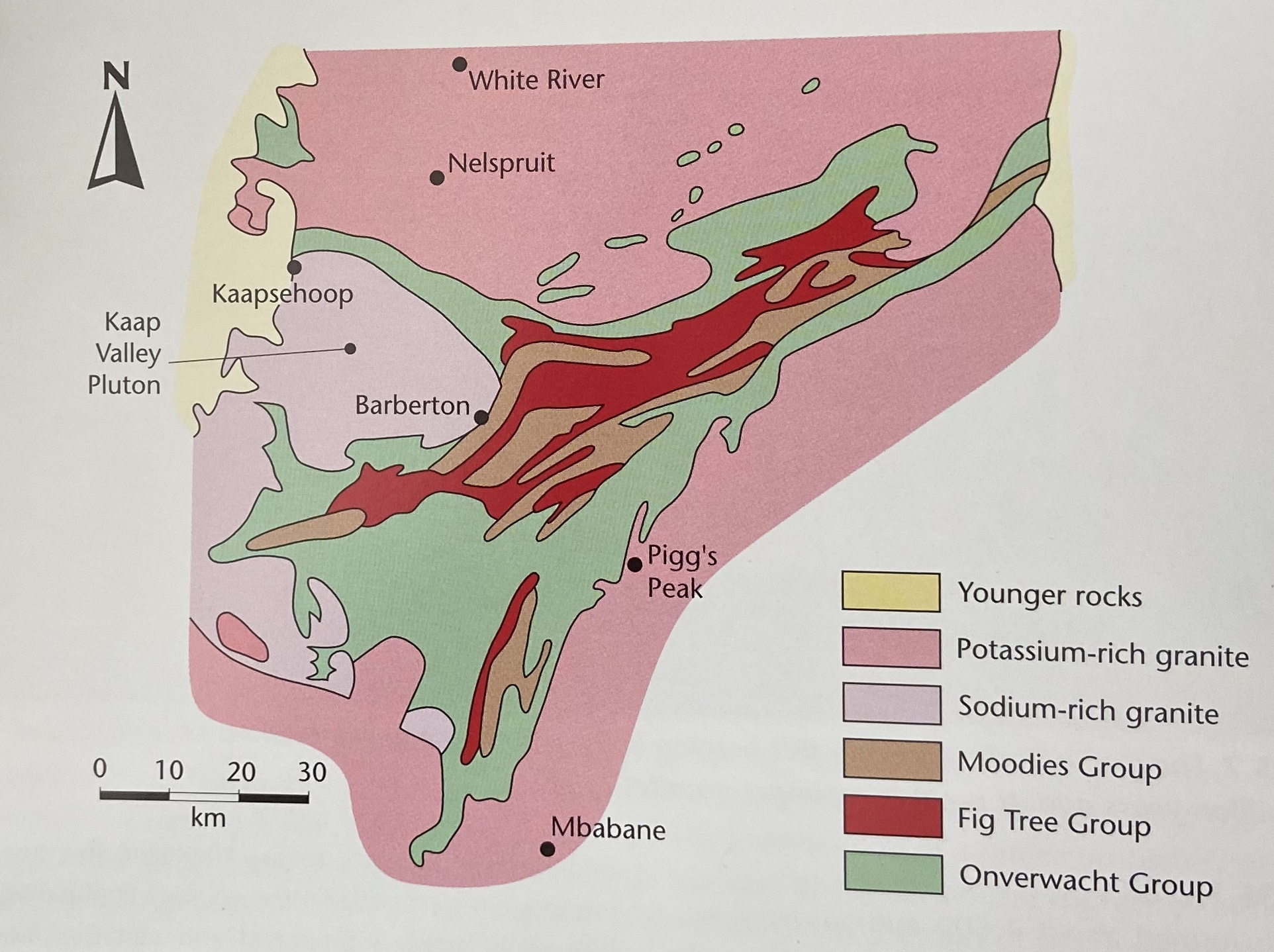

The Barberton greenstone belt

The Barberton greenstone belt

The figure shows the (simplified) geological map of the region. The three groups are ordered from younger to older. The oldest is the ‘onverwacht group’, formed by volcanic activity. It contains komatiite, followed by a seafloor sediment layer, followed by basalt. It seems to trace the development of an island arc, from the formation of the oceanic crust to its recycling, at magma temperatures a bit higher than currently found. the Fig Tree group is a sandstone which formed later. Finally, the Moodies group is a sediment that formed in a shallow, tidal basin. The pinkish rock is the intrusion, on either side of the belt. It made the different layers vertical, with the oldest rocks closest to the intruding rocks.

The intrusion has a different composition to the original green belt. The ancient rock contained pillow lavas, erupted in the deep sea. It contains komatiite, showing that the magma was supplied by a hot mantle, in a rift (it is difficult to call it a mid-oceanic rift when the entire world was one ocean without land). The intrusion is granitic: it was fed by subduction melt. The world was changing, continents were taking shape and new type of volcanoes formed.

One of those volcanoes still remains. That is another story. Keep posted.

Albert, January 2022

Some of the photos and quite a bit of the information is from the book ‘Earth & Life’ by Terence McCarthy and Bruce Rubidge

For more on the topics of rocks, see Lava rocks
