The land between the mountains

Double, double toil and trouble; Fire burn and caldron bubble

The statue ‘The burden of history’, from 1997, relates to the famous Laki fire sermon. Image from https://guidetoiceland.is/connect-with-locals/regina/klaustur

Do you remember that famous Australia TV soap where everyone in the town helped each other with their mini-crises, such as ‘who took my surf board’ and where the life guard walked around the beach in their swimmers? (I may be getting confused here with an American soap.) And again we are glued to a screen, now watching an Icelandic community under the threat of a volcano, erupting with all kinds of minor crises such as rescuing the cat, building a wall, trying to help the volcano find the right path for its lava offspring. People are surfing the red waves and watching the lava-love boat sail past. In this compulsive series, every minor drama (‘who stole my magma?’) causes a watchable eruption, while on another channel (‘The Eruptors’), the cones are being killed one by one. What better use is there of one’s time? How can one meaningfully take part in the office gossip, not having watched the latest from Grindavik?

Any volcano can create a soap drama. It may become a version of The Good Witch or become a Coven, bland versus horrific. But one beats them all with the longest running story line of any soap, albeit with rather sparse episodes. This is the real witch to watch. It is Katla.

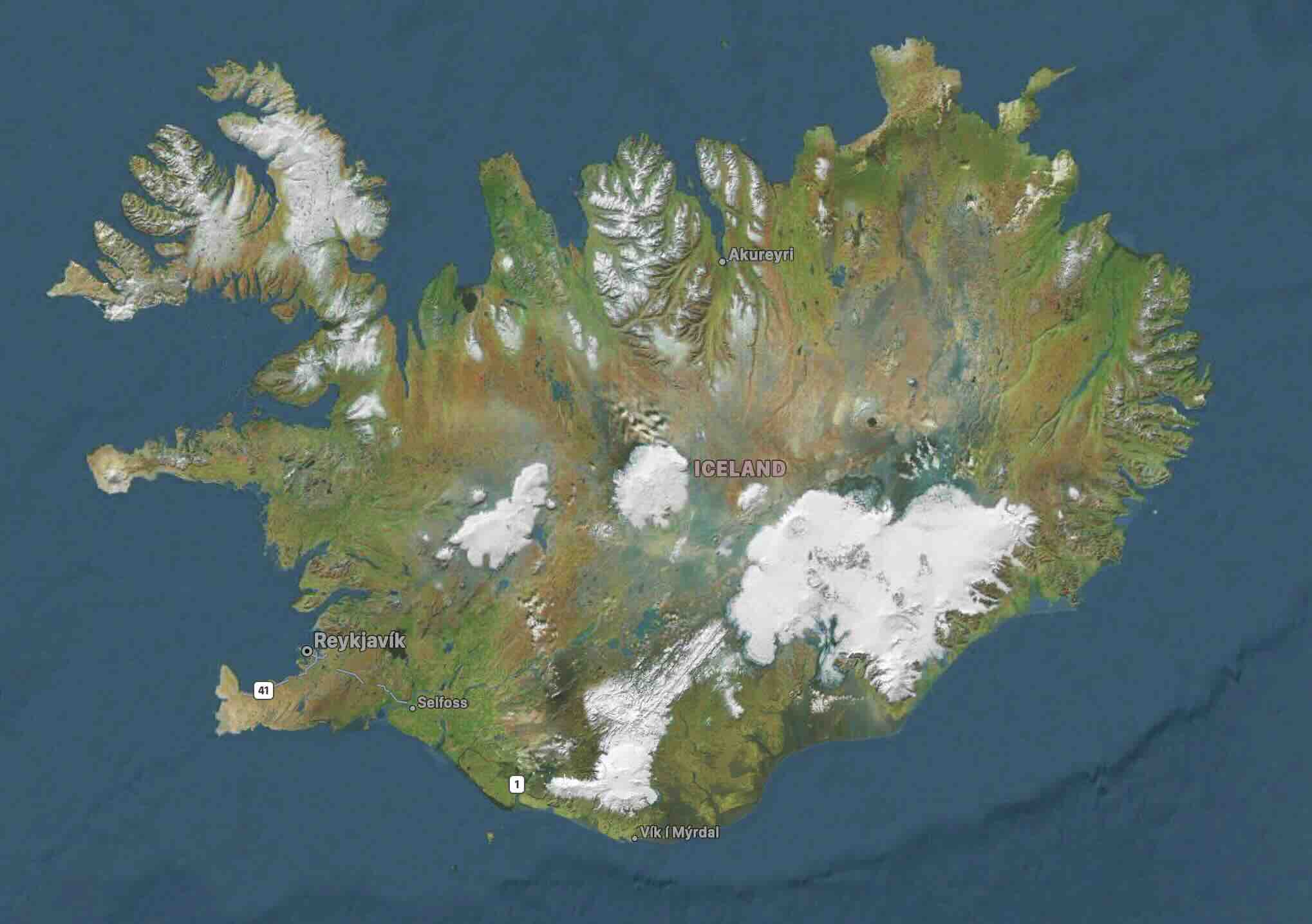

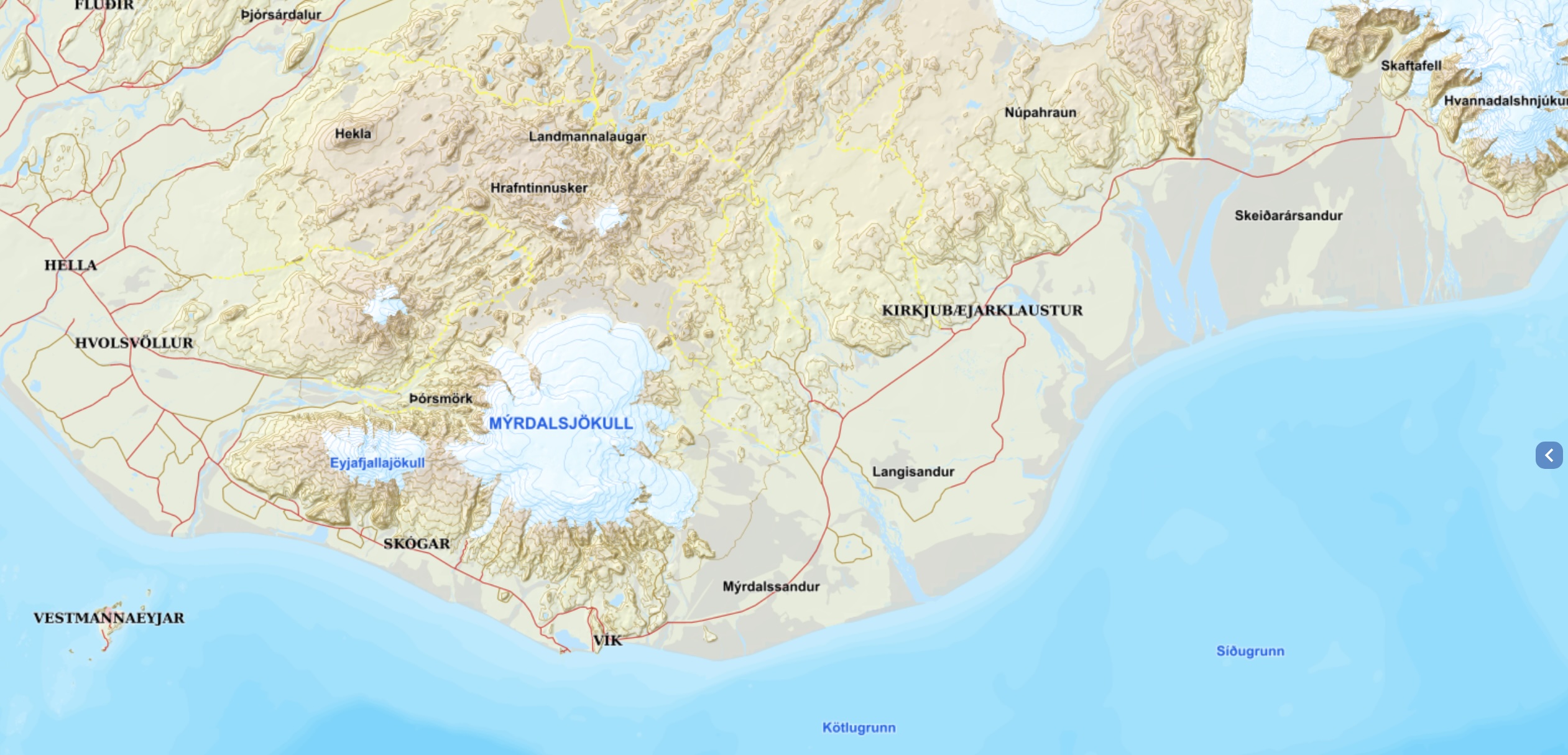

The map of Iceland shows the main mountains outlined by snow and glaciers. The largest is Vatnajokull, covering the two monsters, Bardarbunga and Grimsvotn. The southernmost glacier covers the other monster: Katla. In between lies a green land, isolated from the rest of the country. This is the land between the mountains.

From the very start of the settlement of Iceland people have been trying to make their home here. But this land is bewitched. At times it is paradise, at other times is suffers the largest disasters of all of Iceland. Much of the bewitching is done by Katla, the Witch volcano.

This is the story of the people of the land between the mountains.

The Landnámabók era: Book of Settlements

Iceland was first settled by the Vikings. Officially they arrived in 874 and had occupied the entire country by 930, bringing the settlement era to a halt. In practice these dates are uncertain. The end is very close to the major Eldgja eruption, and it is entirely possible that this eruption ended the mass migration! According to Icelandic folklore, the settlement era coincided with a time of upheaval in Norway, where for the first time a king was bringing the country under his sole authority. Authority did not sit well with many Norwegians, and this is one of the reasons tens of thousands migrated to Iceland to start a new life of freedom. People also came from the British Isles, and they may even have first come from here before the Vikings did. It is not known when Iceland was discovered, but its existence was well known before 800.

The Book of Settlements was written up around 1200. It is a list of individual settlers, where they came from, where they settled and who their offspring were, interspersed with salicious details and short stories. The stories abound with details about who murdered who and why and the feuds that followed. It would make great TV. Many settlers came to Iceland after troubles (of the lethal kind) in Norway. Others ran foul of the growing might of the Norwegian king who also had a tendency to go for the terminal route in dealing with adversaries. Such was Viking life. They did not live in towns but on farmsteads, a safe distance apart. They needed their personal space and for good reason. The people much resembled the Viking pantheon: a quarrelsome lot. Covid lockdowns and social isolation would have been a life saver for them. (Presumably there was a lot of peaceful farming as well but that did not make it into the sagas, as being too bland a soap for Viking daytime entertainment.)

The earliest settlements were coastal or located around inlets of fjords, with houses build from driftwood. The settlers began to clear the ubiquitous birchwood forests, and used the land for their animals. In some places, turf walls were being build, showing the need to enclose areas for or from animals, to separate them from those of the neighbours or from arable patches. Each farm consisted of one or more families and workers (or slaves). Dairy cattle were crucial to Viking farms. While sheep could survive the winters outside, cattle needed to be kept indoors in the winters, even in Southern Iceland. This required fodder to get the cattle through the winter, and that meant keeping patches for hay clear from animals! (One of the stories about the first Vikings to discover Iceland tells how Floki settled north of present Reykjavik, and found the bay so full of fish that he forgot about the hay-gathering and all his livestock died in the winter. He went back to Norway and spoke ill of the new land. The story places this before the start of the settlement era in 874.) A few hundred years later, farming became more marginal due to the onset of the little ice age and perhaps exhaustion of the soil. After this time, fewer cattle and more sheep were kept. The system of walls disappeared at this time.

The best land for hay, at least initially, were in places which flooded in spring. River estuaries were therefore good places for the first farms, where river valleys supported good grass growth. The farms themselves were obviously not on the flood land but were on ridges. Initially the settlements were close to the coast, in regions accessible to the sea-faring ships. After around 900, settlements appeared further in-land, still mainly along the rivers .

The Book of Settlements mentions around 400 farm sites. They were distributed over four districts or quarters (west, north, east and south, in that order), each consisting of a number of communities which were called ‘thing’. A ‘thing’ would involve farms (the Vikings did not live close together, for reasons of safety), a temple and an authority such as a lawgiver. The combination of the four Quarters with their ‘things’ became the ‘Althing’, which later was the name of Iceland’s parliament.

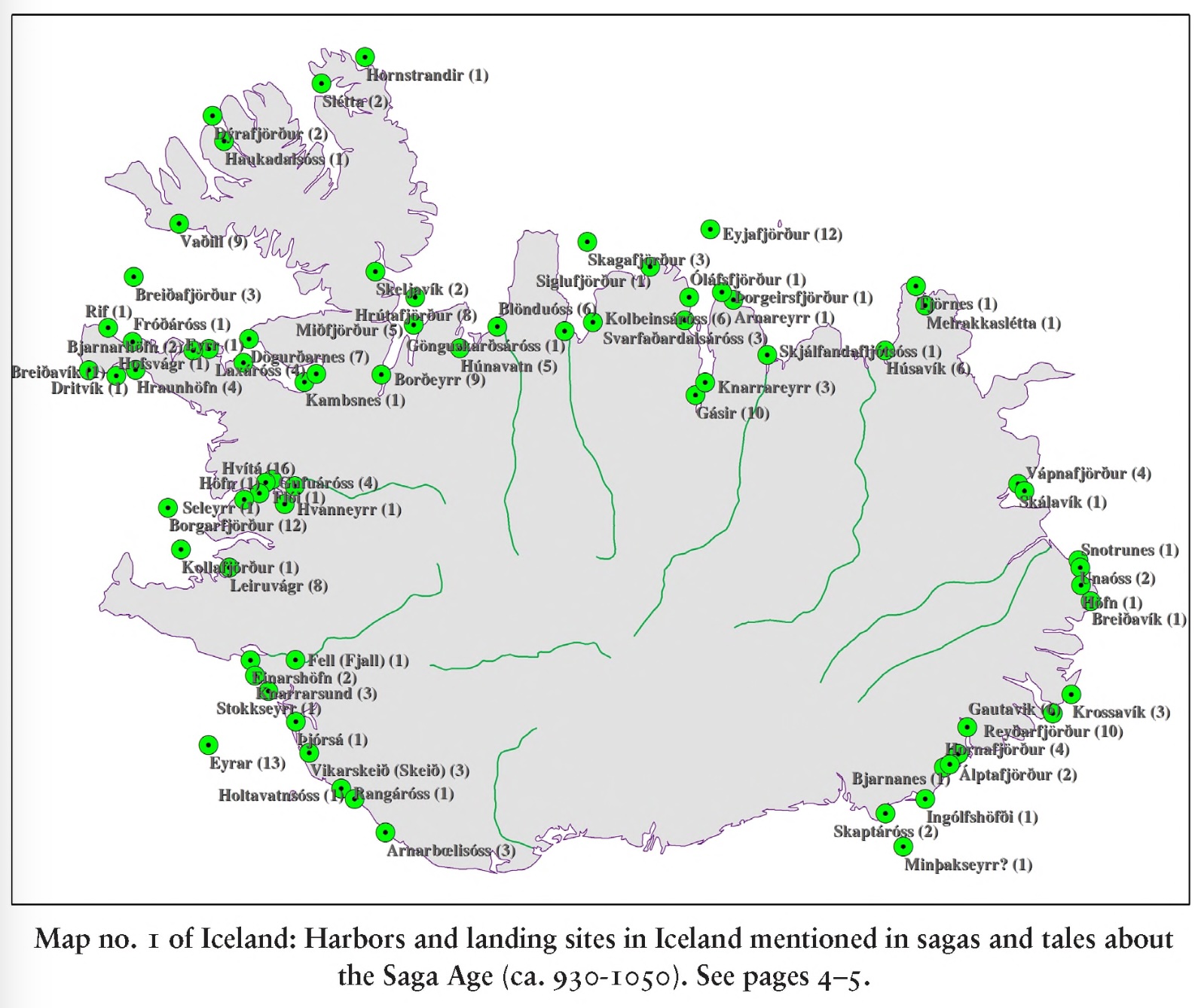

The map below shows the landing sites that are named in the old Icelandic histories. The southern quarter covers the south coast area below Reykjanes. The region in the southeast is part of the eastern quarter.

The missing south

The map shows a large gap between Vatnajokull in the east and Myrdarsjokull in the west where there were no recorded landing sites. It is as if a whole area of Iceland was left out.

It was not entirely left out. Very early in the settlement era, one of the first arrivals was Hjörleifr Hróðmarsson who settled on the coast about 10 km west of Vik, near the southernmost point of Iceland. This would have been around 874. At the time, Hjorleif’shof was on the coast and the area was forested. The forests have long gone, and there is now a deep sandy plain between it and the coast. Hjorleif only lived here for a year or so. His Irish slaves killed him. The story tells how they fled to the nearby islands, but themselves were killed there by Ingólfr Arnarson, Hjorleif’s brother. The islands were named after the Irish slaves: they became the ‘Westman Islands’ or Vestmannaeyar. Ingólfr lived in Hjorleif’shof for the following winter but afterwards moved west to the area of Reykjavik where he remained. He is considered the first settler of Reykjavik, but the settlement attempt in the south had not been a great success.

The area where they tried to settle is in fact a dangerous one. Twice it has been devastated by eruptions from Katla, the last time in 1918. Nothing remains left from this attempt, apart from a sign on the road. There is a good description of the area and it history here.

Settlements west of Vik were far more successful. A number of early settlers took sites along the Markarfljot river, west of Eyafjallajokull while others settled along the Thjorsa river. The oldest farmstead here was Eystri Skógar. Things were also well on the east side of the gap, south of Vatnajokul. After the settlement of Iceland, the fertile plains on the southwest of Öræfajökull were called Litla-Hérað and although isolated, the area was densely populated with twenty or more farms. Slightly further was Breiðamörk, also well-off, where around 900 AD, the settler Þórður Illugi built a farm. At that time the glaciers were much smaller than they were later, and between the glaciers and the coast was a prairie-like landscape with lush grass, copses of trees, and rivers. It must have seemed like heaven. The gap region in the south of Iceland must have been similar.

But in spite of this, there are only a few mentions of settlers to this gap area. The Book of Settlements records some: A man’s name was Ísólf; he came out at the end of the era of settlement and challenged Vilbald to the land or the island walk, but Vilbaldur did not want to fight and left Búland; he then owned land between Hólmsár and Kúdafljót. But Ísólfur went to Búland and owned land between Kúdafljót and Skaftár. So Vilbald ended up with land upriver (the Hólmsá is a tributary to the Kúdafljót, northeast of Katla), while Ingolf had the low land between Katla and the Skafta river. Vilbald was reported to be the first settler here: the Kúðafljót river, west of Katla, is said to be named after Vilbald’s ship which was called Kúði. Another noteworthy person is Ketill the Foolish who lived near Kirkjubæjarklaustur. He was from the Hebrides and was christian. After his death, a nearby settler, Hildir, tried to move his farm to Kirkjubær. But as he approached the boundary of Kirkjubær he suddenly died. The stories show that the area was settled and left some stories, but the names are few compared to the some 40 settlements mentioned west of Katla. Was it more sparsely settled? Less suitable to Viking farming? Or did their stories somehow not get recorded?

The region had a number of problems. There were no good harbours so ships had to be taken up the rivers. (It would be unwise to leave a ship on the coast in the winter storms that hit southern Iceland.) The rivers here, the Kúðafljót and the Skafta, were dangerous and difficult to navigate. Second, land travel towards the west was difficult because of the rivers and the terrain. So the region was very isolated. And finally, the region was exposed to volcanic activity. Most of this was true for the neighbouring regions as well, though.

Early eruptions

There were two major eruptions in the region during the settlement era, and one just before. The one before was the so-called landnám (settlement) tephra. It is an ash layer found across much of Iceland, coming from an eruption from the Vatnaöldur fissures. It has been dated to 871. The Vatnaöldur fissure is over 40 km long, and erupted some 3 km3 of tephra, mostly (but not entirely) basaltic and probably originating from Bardarbunga. (This fissure swarm produces large eruptions about every 600 years, the most recent one around 1480.) On the main land, almost all archeological excavations have found that the Viking activity began shortly after this layer was deposited, in quite a few cases immediately after. But in a few locations, including the Vestmannaeyjar islands, there is evidence for occupation during the deposition, suggesting people had already established a dwelling there. Thus, the peopling of Iceland started (slowly) just before this eruption but accelerated after the event.

The first eruption during the official settlement era was around 920, when Katla deposited black tephra as far as Reykjavik. Thus was a major eruption, ejecting 1 km3 or more and affecting this region in South Iceland in particular.

The final eruption was the Big One. In 939, at the end of the settlement era, the Eldgja fissure erupted with a fury that would would not be seen again for at least a millennium. Katla was the responsible volcano (again), but this time it pushed out 20km3 of lava though a 70-km long fissure running to the northeast. Much of the region to the west of Katla was overrun by the lava. A description of the eruption has been posted by us before. A 25% smaller eruption 800 years later (Laki) devastated Iceland, killed most life stock and reduced the population by 25% (partly through migration). But the old documents are silent about Eldgja. The eruption is not mentioned.

Extend of the Eldgja flow near the Kúdafljót river. Source

The overwhelming silence suggests that either very few people lived in the affected area, or that there were very few or no survivors and there was no one to take back to stories to the other regions of Iceland. I fear that this is the correct solution, and is the reason why there is so little mention of this entire area during the settlement era. People who settled in this apparent paradise did not survive to tell the tale. They were overcome by Katla.

Jokulhaup desettlement

After Eldgja, there was a fundamental change to the region. This went beyond the lava which had covered much of the best land. It was a change in Katla.

Katla is known not only for its eruptions, but also (and perhaps more) for Icdeland’s largest floods. The icecap regularly melts from the volcanic heat, and once the lake below is high enough to lift the ice barrier, the water suddenly empties and a flood comes down the river. There are three glacier outlets which can be used, two towards the west and one towards the east. But every since Eldgja, only the eastern one has been used. The flood deposits have become so severe that the coast of the floodplain has moved outward by 2.5 km since 1660. Before Eldgja, it would have been even more inland. This is the Mýrdalssandur plain, a desolate region destroyed by the floods and deeply covered by the sediment. The 1918 eruption was accompanied by a jokulhaup that deposited 1 km3 of sediment here. The land where Hjorleif settled became uninhabitable.

This did not happen instantly. There were jokulhaups before Eldgja. One is mentioned in the Book of Settlements, in the tale of the magician Lodmundr, occuring on the border between the western and southern Quarter. After Eldgja, Katka was quiet for perhaps 200 years. There were two eruptions in the 12th century. Around 1178, a jokulhaup is reported to have destroyed several farms in the Myrdalur region, so it appears the area had been resettled at that time – but Katla knew how to discourage this.

Something similar happened at the eastern end of the region, where a series of farms were destroyed by a major eruption of Öræfajökull in 1362. This area never recovered. It was not only Katla which haunted the region. It was caught between two volcanic, glaciated centres each of which were problematic neighbours.

Kirkjubæjarklaustur: A tale of two cloisters

The focus of the population (or perhaps the re-population) shifted to the Skafta river delta. This too had been overrun by Eldgja lava, but it recovered over the years. When history resumed, there was now a convent, called Kirkjubæjarklaustur. (Try to pronounce that one!) The name is a combination of the words church, farm and convent.

In the centuries after the settlement, Iceland became more organized and dominated by a few families. The lawlessness of the settlement period was gone. Every major farm acquired a church building: in fact there were far more churches than priests, so that having a church must have been mainly a sign of standing, being the dominant farm in the region or keeping up the Jones. By the 12th century farms paid a tax to the main church of the region. Perhaps a quarter of churches received this tax, while the others did not. Sometimes the church owner was the only one paying the tax – to themselves! In some cases the farm owned the church, but in other cases the church had acquired the farm, either because the farmer became a priest or because the farm was donated as an endowment.

Kirkjubær held the main church of the area already by 1150. Four neighbouring farms with churches paid their tax to the farm at Kirkjubær, and were serviced by the priest at Kirkjubær.

The convent of Kirkjubær was established in 1186; the name implies that it was connected to the farmstead. It was headed by an abbess. The region had a christian heritage: the first settler here, Ketill the Foolish, was said to be a christian from the Hebrides. (It is possible this story was a later addition to the records, to claim a christian heritage.) A small part of the monastery has been excavated. A loom was found, showing that textile work was done. The excavation suggested that the monastery may have been built in European style, around a central garden. That would be different from a farmstead, and the original farm would have been somewhere nearby. But nothing remains above ground.

There was already a monastery in the region, Þykkvabæjarklaustur, established in 1168 and much larger. It was located on the edge of Myrdalssandur, just east of the Kúdafljót river. The building covered 1800m2 on the ground: the remnants were located by ground penetrating radar some ten years ago. As usual in Iceland, a large farm was associated with the monastery. There was also a school. It was a good place. Of course having a monastery and a convent somewhat close to each other (a day travel, including the traverse of the river) was an opportunity. The monks would take an outing and go to visit the nuns. In the cliff above Kirkjubæjarklaustur is a cave called Sönghellirinn – the Singing Cave. Here the nuns would sing to the monks. What followed would be a raucous party – based on rather critical comments by the bishop, perhaps not quite up to expected standards of dignity!

Other ancient folklore of the convent survive. The stories can only be dated because they are about the convent, which ceased to exist in 1550, so they refer to events which are older than that. One story talks about the lake above the cliff. Two nuns went here. One saw a beautiful golden comb in the lake, tried to get hold of it and drowned. The other nun rode a horse into the lake to get the cob – neither she nor the horse was ever seen again. The story explains why this lake is called Systravatn: Sister’s lake. Water from the lake runs down a river though the village, where it produce a double waterfall called the Systrafoss.

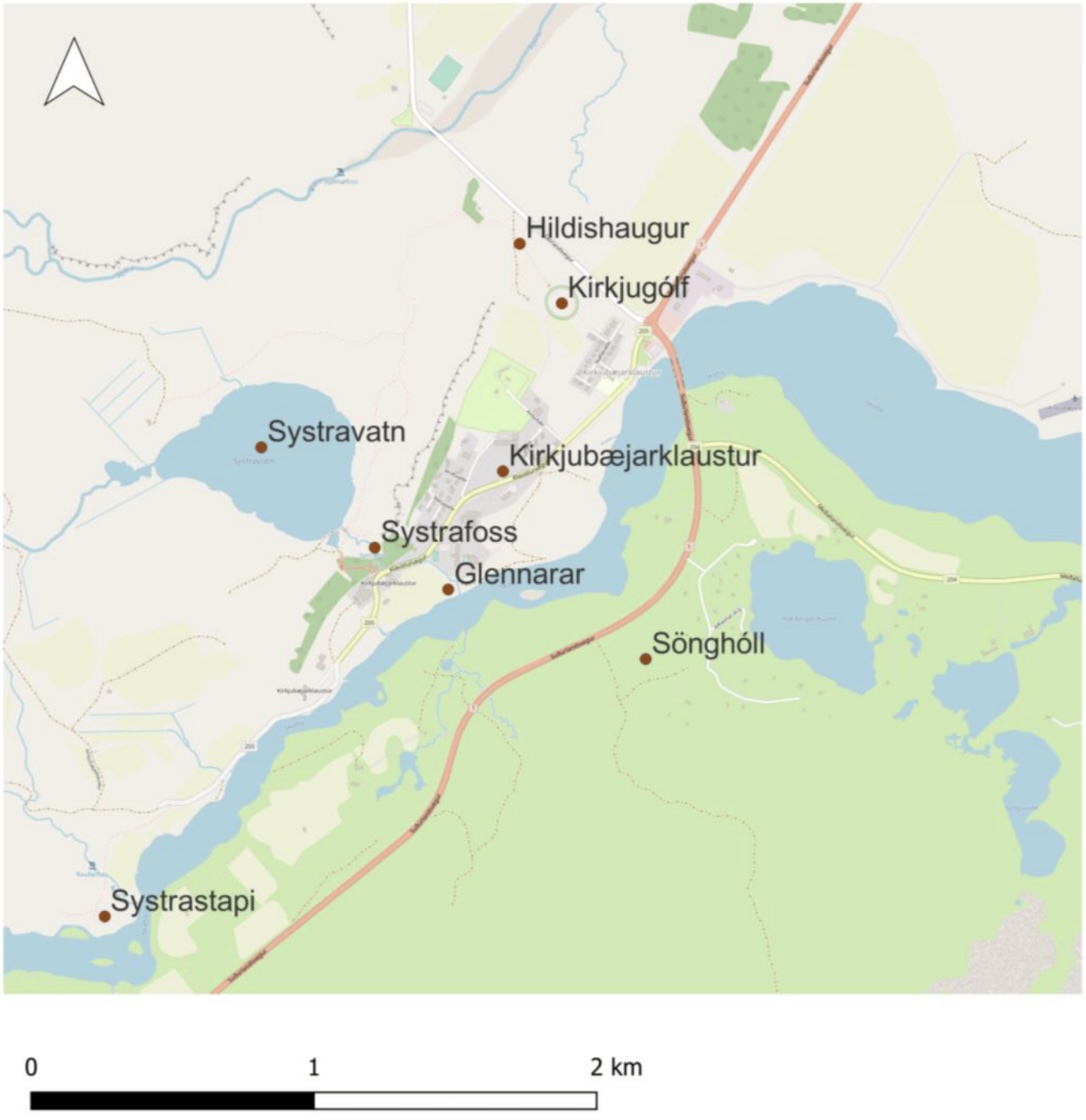

The most famous story involves a rock. In its current form it probably dates from just after the reformation. Systrastapi rock is west of the village. The folklore tells about two nuns with questionable behaviour who were burned on this rock (which raises the question all capital punishment does, whether punishment is for revenge or for encouragement). One had indulged in un-nunnary behaviour (details available on request) and the other had spoken ill of the pope. The graves are on the rock. One grave remained barren, but the grave of the nun against the pope grew flowers, and she was later considered innocent. (Or rather, had been right.)

It is notable that all stories about the convent emphasize negative aspects, of nuns breaking their vows. This may indicate that the stories date from the reformation, when the catholic past was seen as something to move away from. Only the story of the nun who was burned appears in a document predating the reformation, but it only mentions one nun. The second nun may have been added to the story later, after the reformation.

The mountain, the witch and the wardrobe

https://www.south.is/en/place/thykkvabaejarklaustur The current church at Þykkvabæjarklaustur. Where the grass is green and the sky is always blue. There is a small cemetery and a few grave stones. The area around the church is called a ‘pseudo crater’, confusingly referring to a series of rootless cones.

Þykkvabæjarklaustur is forever linked to Katla. One of the early abbots employed a housekeeper of dubious temperament, called Katla. Yes, that Katla.

Katla had a pair of breeches with magical power. They allowed her to run fast as the wind (and that means something in Iceland. I can refer to the folklore surrounding the origin of VC and why we have a sheep as emblem). She would also not get tired. A local shepherd called Barði heard about this. When he lost all his sheep, he unwisely stole Katla’s breeches to be able to quickly relocate them and get them back.

Katla learned about the theft and employed her temper in old-fashioned Iceland Viking way. She drowned him in a vat of whey and left him there. It probably added taste to the whey but somehow people did not notice. However, eventually the body would be found. In desperation, Katla fled and threw herself into a wide crack in the ice of Mýrdalsjökull glacier. She turned into a witch living underneath the ice. She caused a terrible flood which almost destroyed the Þykkvabær monastery itself. And still she tries.

This is the story that equates Katla with a witch. And not a Good Witch. This one has a temper.

Laki

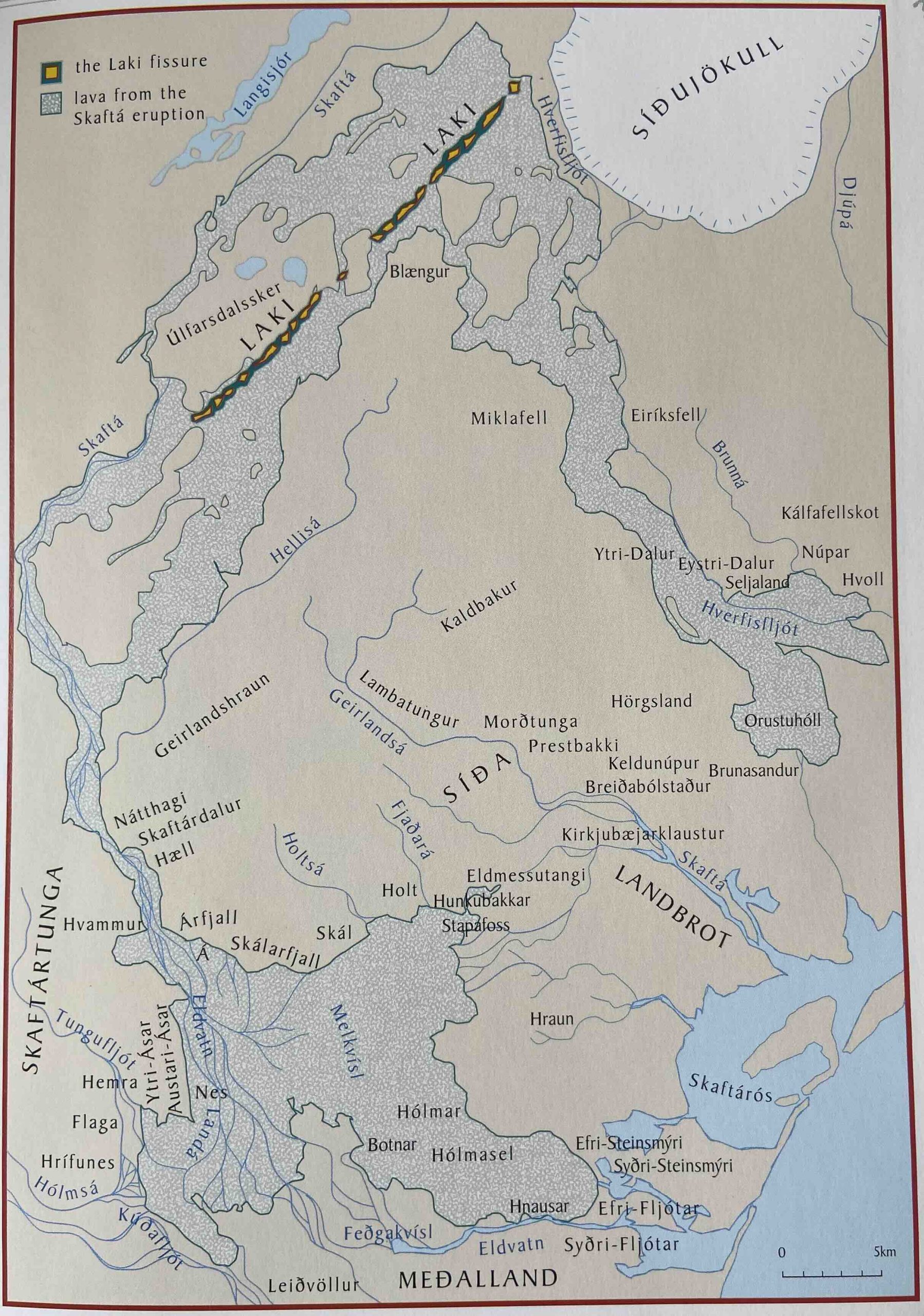

The Laki lava flow. From Fires of the Earth, University of Iceland Press, 1998

The convent and monastery were closed in the reformation of 1550. But life continued, punctuated by eruptions from Katla. The next big problem though came from the other mountains, from Grimsvotn.

By the 18th century, things were well in the area of Kirkjubæjarklaustur. The land is described as having ‘high fertility and great bounty’ so that ‘men hardly knew how many sheep they owned’. But on the morning of Whitsun, 8 June 1783, this ended in a spectacular fashion. ‘In clear and calm weather, a black haze of sand appeared to the north of the mountains.’ It spread: ‘It caused darkness indoors..that night strong earthquakes and tremors occurred.’ The Skafta river dried up entirely. Four days later lava came down the river valley and spread out over the older Eldgja lava. The Laki eruption had begun; by the time it had ended, the region was again largely depopulated although not abandoned.

Four farmsteads were quickly overrun. The church at Holms also went up in flames. The priest had locked the church, so that people who came to rescue the church ornaments before the lava arrived, could not get in. Security can be so counterproductive.

One Laki date especially stands out in Iceland’s history: 20 July 1783. It is still celebrated annually. Lava was still coming down the Skaftá river valley and was threatening the farmland of the parish of Kirkjubæjarklaustur. These was the dark days of summer. Lava was now approaching the church and it seemed certain to be overrun that day.

We know more about the Laki eruption than about any other of similar date. There is one reason for this: Jón Steingrimsson, the priest of the parish. He was well educated and had a keen scientific interest. Jón had experienced the Katla eruption of 1755, one of the largest in historical times when tephra was a meter thick in places and ash fell in Shetland, and he had become interested in volcanoes. (I would like to imagine he would have been a keen VC reader.) But on this day, he had a congregation under threat of imminent extinction. Jón decided to hold the Sunday mass anyway, in spite of the rapidly approaching lava and knowing the church would likely not survive the day. It was hazy and dark, and there was lightning over the lava. The story tells how the ground trembled, and the bells echoed and wailed with the cracks of thunder, while Jón gave his sermon about God’s will. His sermon became famous (albeit unrecorded). It is now known as the Eldmessa, the fire sermon, and Jón became known as the fire priest. Afterwards, when the congregation exited the church and went to see the approaching the lava front, they found that it had stalled. The church and the parish were saved. The lava did not get further: the end point is still known as Eldmessutangi: the fire-sermon point. It is close to Systrastapi rock.

Eldmessutangi. Source: https://nordichouse.is/vidburdur/mats-wibe-lund-ljosmyndasyning/

Jón was attributed with a miracle. He agreed that God had stopped the lava but thought that the miracle had been in the timing. Being an excellent observer, he looked for the ‘how’ and concluded that God had made use of the smaller rivers that were still flowing when the Skafta itself had dried up, and had cooled and solidified the lava.

The area survived the lava but was still devastated by the impact of the Laki eruption. Many people died or left. Jón also went through hard times, and saw his wife die. The church survived the eruption but not time itself. It is no longer there. A new chapel was build in the 1970’s. The old cemetery contains a few gravestones, including that of Jón and his wife Þórunn.

There is a wonderful description of the area and its history https://guidetoiceland.is/connect-with-locals/regina/klaustur

Past to present

Of all the regions of Iceland, the south coast between Katla and the mountains of Vatnajokull shows the clearest impact of the eruptions. From being involved with the very start of the Settlement, it became a region where people moved through but did not stay. It was a fragile paradise to begin with, of river plains and forests. The fragility was because it was build on volcanic sand. Eldgja must have been a massive setback, so bad that no real records survive. It changed everything, with lava covering the land with the best soil, as well as the forest and the rivers. After that, the jokulhaups came in the west and the eruption of Öræfajökull in the east, leaving only the central region of the Skafta river as the habitable heart. Then the Laki eruption hit the heart. Every time people had to start anew. They managed – this is Iceland, after all, and people don’t just live off the land: they also have the sea.

What does it mean for the future? The largest eruptions in Iceland have come from Lurking’s Dead Zone: the fissures between the mountains which can be fed from either side. These eruptions occur many centuries apart, but the risk is always there. And now the glaciers are melting under the increasing heat and this makes the jokulhaups less predictable. In fact it makes the eruptions less predictable as well as melt water plays a role in them.

We watch the developing story of Grindavik which after 800 years of security finds itself threatened by a reawakening of the volcanic system. And we think of Katla which has been asleep now for over a century. Katla does not do patterns: we can’t predict whether the next eruption will be small or large. But one day a prince will come, kiss the wrong princess and wake the Witch. Ash will cover the land. There will be jokulhaups, and they might take the old route on the other side of the mountain, into a land that has not seen them for a millennium.

The story of the land of the two mountains is not ended. There will be more chapters.

Albert, May 2024

Katla’s historical eruptions

Here are the known notable eruptions of Katla, copied from https://perlan.is/articles/katla-volcano-eruption

  • 920: The first eruption after the settlement. Medium sized. Undocumented eruption but a tephra layer exists witnessing the eruption
  • 939: An eruption in Katla and a hazardous glacial flood accompanying the tremendous Eldgjá eruption.
  • 12th century: A small sparsely documented eruption
  • 1179: A small eruption but the glacial flood ruined some farms
  • 1245: A small eruption
  • 1262: An eruption leads to a large jökulhlaup (glacial flood) and tephra fall
  • 1357: Medium sized eruption, heavy tephra fall. Glacial flood (jökulhlaup) destructed many farms
  • 1416: This eruption and subsequent jökulhlaup cause severe damage
  • 1440: A small eruption and sparsely documented, no damage
  • 15th century: Small undocumented eruption, a thin tephra layer has revealed its existence
  • 1500: A large undocumented eruption. Heavy tephra fall all over south and southwest Iceland along with Reykjavík.
  • 1580: A small eruption, no damage
  • 1612: Small eruption and jökulhlaup occurs
  • 1625: A powerful eruption. Tephra fall experienced in Faroe Island and in Trondheim in Norway. This eruption lead to significant flooding
  • 1660: Medium sized eruption along with heavy tephra fall and flooding. The farm and church in Höfðabrekka destroyed
  • 1721: This eruption caused a large jökulhlaup that lead to significant property damage and changes in local geography
  • 1755: A powerful eruption, the largest one in Katla in historical times. Hazardous glacial flood and heavy tephra fall, people killed by lightnings from the volcanic cloud.
  • 1823: A small eruption, insignificant damage
  • 1860: A small eruption, some damage in Mýrdalssandur
  • 1918: The most recent large eruption with heavy tephra fall and glacial flood. The flood deposits moved out the coastline by many hundred meters
  • 1955, 1999, 2011: minor subglacial eruptions

73 thoughts on “The land between the mountains

  1. Hi Albert and everybody else.
    Thank you for another great article and sharing your insightful information – as always.
    I have another issue, which I have stumbled over a few weeks ago and would I like to reqzuest for some well-founded opinions:
    I recently read an article about a `rapid true polar wander` during the last ice age, which means that changes in mass distribution on earth during the glaciation period could have changed the axis of rotation on earth with the north pole slipping towards the North American continent with the result of increasing glaciation of northern Europe and north America, meanwhile eastern Siberia became a steppe, green Sahara … a.s.o…
    Thinking about this hypothesis, much is making sense to me about what could have happened during the past 10k to 100k years in regards of the regional climate changes, and considering that the spin axis of a heavy gyro (rotating earth) is quite complex, I wonder, if there is any evidence of this theory to be true, or if there is absolute evidence, that this is nonsense at all.
    I am asking myself, if there is only no real evidence, that some kind of wobbling of earth rotation axis (polar wander) could have appeared during the past tenthousands of years, or if there is definite evidence, that this never happened. Maybe someone can give a usefull hint. Thank you and kind regards.

    • Thanks for the kind words. True polar wander is a very slow process. It requires the movement of the mantle and crust, each with their own viscosity. It would show up as an apparent change in the magnetic pole (which is fixed by the core). We know that that has changed by no more than 1000 km in 100 million years, which is less than 1 km since the start of the ice ages. The ice ages are therefore far too recent to have had an effect. There has been some discussion about faster true polar wander during the break-up of supercontinents 800 million years ago but this is very controversial.

      • Is this not the same idea as axial tilt precession but with a different core factor? Egypt had Thuban/Alpha Daconis as their pole star when tbe Giza Pyramids were designed and built, which was half way back in time to the Younger Dryas and worst of the megafauna extinctions. If the actual pole had moved I dont think that alignmebt would be so easily traceable.

        I have also seen stuff about the moon making it very difficult for the Earths axis of rotation to change, its possibly a gyroscopic effet or at least appears to be. Jupiter is similar because of shear mass it cant really precess or be affected by anything, and is only a few degrees out of the orbital plain. But the other planets have evidece of changing a lot more expecially Uranus obviously, and Venus being the most extreme if its retrograde spin is a result of it flipping upsidedown.

        • No, that is a very different thing. The precession is the whole earth changing its orientation, like a spinning toll. Everything on Earth stays as it was, just with a different star overhead. True polar wander is whether the rotation axis of the earth changes with respect to its surface. A place on Earth would change its latitude – if you were on the pole, you’d no longer be and the pole would have shifted. It can happen, and is for instance known from Mars, but it is a very slow and hard process. On Mars the pole moved by about 15 degrees, probably when the Tharsis bulge formed 4 billion years ago.

  2. Between a rock and a hard place. In the west – the wicked witch. Katla bides her time deep beneath the glacier. In the east – Grímur, the troll who killed his father-in-law, sits by his cursed lakes. Between the two lies an otherworldly place. The dead zone. It’s beauty makes it seem enchanted, but make no mistake – the spell that has been cast upon it is a curse.

    Nice article Albert. Always a joy to read.

  3. not finished with the article yet, but I am most fascinated by the story about the origin of the name of the Vestmannaeyjar!

  4. Kilauea has gone seismically quiet but the inflation is still rapid at the summit.

    -8 to +12 microradians on UWEV, 22 total, this station happens to coincidentally display 1 microradian to an equivalent of about 1 million m3 of magma (others do not), so in the past month the supply rate is 22 million m3 in 31 days, or about 650,000 m3/day. This is about twice the Pu’u O’o rate and also faster than the inflating sill at Svartsengi.

    At the same time SDH has gone up from -50 to +70 microradians, so 120 total. So it might be plausible to put a rate of 5 microradians per million m3 at SDH vs ~1 for UWEV. Im not really sure if this is directly comparable though, as the green line at SDH is not measuring tilting from the direction of Halemaumau but the south caldera and upper SWRZ instead. Im also unsure if the above supply rate would actually be an underestimate and not include the SDH uplift.

    Either way Kilauea seems primed to do something very soon even if quiet at this moment. A bit of a race between it and Svartsengi right now. We know what Svartsengi will look like when it goes next but an eruption in the 2018 caldera could well be of a similar or even greater magnitude.

    • It is an impressive change. The conversion from tilt to magma volume is a dangerous one, though. It depends very much on depth and location (a mogi model), and also depends on gas content: gas coming out of the liquid can cause inflation without any change in magma volume. I wouldn’t want to put numbers on. INSAR data would be better for that, but can also be seeing a change in magma depth rather than volume.

      • Thats why I said about 20 million m3 not exactly 22 million. The average rate before 2018 during the Pu’u O’o era was 0.15 km3/year erupted, although there was inflation alongside this along all of the ERZ from 2011-2018 so the totalsupply was higher. The supply from 2005-2009 was apparently as much as 0.4 km3/year at one point, more than all of Iceland combined, although the eruption rate at Pu’u O’o was not proportionally stronger in response.

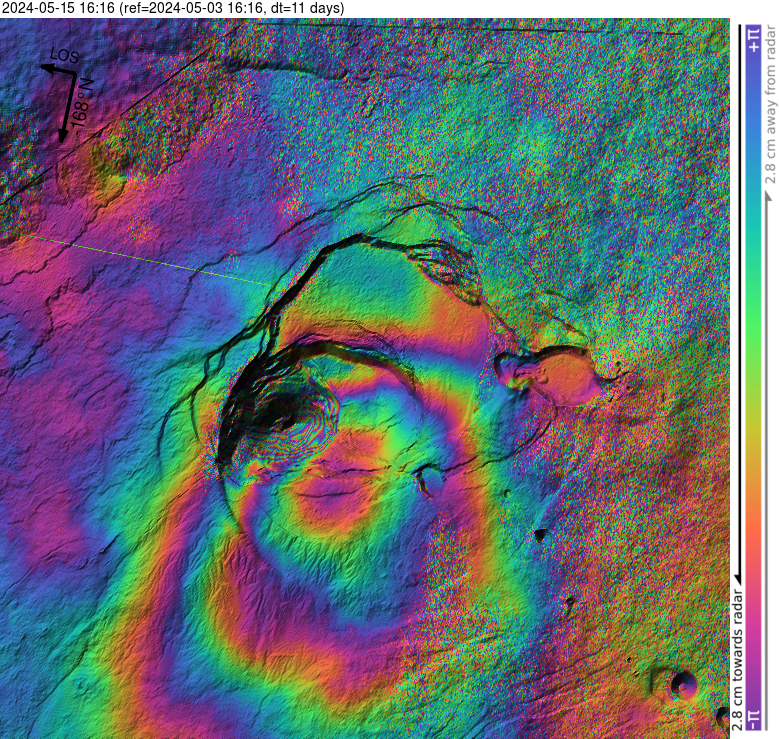

        There is an INSAR, posted fortnightly at
