It should be easy to recognize a volcano. They stand high above the surrounding land, a singular cone which couldn’t really be anything else. Of course, they may not stay that way. Erosion may destroy the shape. A big explosion may replace the cone with a crater. Or there may never have been a cone, for instance when erupted as an Icelandic fire rift, although even they do build cones in the end, just not ones that stand out well. But now it seems that the 6th highest volcano on Mars has been missed. It was lost in a maze.
A note on its height may be needed. Volcanos should really be ranked by their height above the surrounding land. But that can be difficult to precisely define, so instead the height above sea level is normally used. Sea level can present problems as well, as on Mars where there is no sea to define a sea level. (In fact even on Earth we need to be a bit careful with this definition or we could suddenly discover later this century that all volcanoes on Earth have become 1 meter lower, because of the rising sea.) On Mars, instead of the ever-lasting but non-existing sea, a zero level is defined by taking a level of constant air pressure, originally taken as 0.6% of sea level pressure on Earth. That didn’t quite work because air pressure on Mars varies a lot between summer and winter, as so much of the atmosphere freezes out in the southern winter. So nowadays we use a level where the force of gravity is equal to that on the equator at a height which corresponds to the average radius of the planet. (It contains a small contribution from the rotation of the planet causing the centrifugal force). According to this definition, famous Olympus Mons is 21 km high. But it stands 27 km above the surrounding plain, so if people want to make the mountain bigger they will quote the latter number. Olympus Mons is about as big as a mountain on Mars can get, before it crumples the crust below under its weight.
The tallest volcanoes on Mars according to the official definition are Olympus Mons (21 km), Ascraeus Mons (18 km), Arsia Mons (16 km), Pavonis Mons (12 km) and Elysium Mons (12 km). Tharsis Tholus should be added to this list: it is a small(ish) prominence at just 9 km high. ‘Tholus’ means hill, by the way, whereas ‘Mons’ is used for a single mountain – a mountain range would be a ‘Montes’. The line which contains three of the highest volcanoes (Ascraeus, Arsia and Pavonis) is therefore known as ‘Tharsis Montes’. When colonizing Mars it is important to first brush up on your Latin, otherwise you can expect to get quickly lost in the landscape. This is an oft-overlooked aspect of Mars exploration, and is perhaps the reason why Musk (whose occasional use of Latin on twitter has not been fully successful) has been unable to get his Mars colony off the ground. ‘Musk Mons’ would have a ring to it, though, while ‘Tholus Musk’ sounds a bit silly.
Mars (like Musk) is basically a simple planet. Being much smaller than Earth, there was lalways ess room for variety. The planet consists of two halves: a northern hemisphere which is low lying and rather featureless and boring, and therefore the preferred place for exploration, and a southern half which is high and mountainous, contains all the interesting bits and is therefore ruled out for landings as they would be too risky. The northern plains are covered in sediment – it seems that the surface buried below the sediment is more diverse and interesting. The area in between the two halves shows evidence for old rivers flowing from the highland to the low basin. There are a variety of impact craters mainly in the southern hemisphere, and there are many, mainly ancient, volcanic deposits and a much smaller number of very large volcanoes.
The most dominant feature is the Tharsis Rise, an enormous bulge which sits on the equator and has three of the four highest volcanoes sitting on it, and the fourth one sitting adjacent. It is so large that geology lacked a word for such a feature. The three volcanoes together form the Tharsis Montes, but this is only a part of the Rise. (To be fair to Mars, I should point out that the Tharsis Rise arose mainly in the low-lying hemisphere.) This Tharsis Rise is so large that it forced Mars to change its rotation axis. This process is called ‘true polar wandering’, and it ended with the bulge sitting on the equator so that Mars could rotate in peace. Finally, there is the big crack, starting from the side of Tharsis Rise which runs a quarter of the way around the planet. It is called Valles Marineris, and it puts the Grand Canyon to shame.
There is little or no evidence for plate tectonics (there is one place where a bit of oceanic crust may have formed at one time). And it is old. All these features formed in the first billion years or so of Mars’ existence. Little has happened since.
Map of Mars made with UAE Hope space mission
An elevation map, from www.planetary.org
Valles Marineris
Source: Sivasankari, T., Arivazhagan, S. Topographical and morphological studies of Valles Marineris, Mars by using Mars Colour Camera onboard India’s first Mars Orbiter Mission with MOLA data. J Earth Syst Sci 132, 75 (2023). https://doi.org/10.1007/s12040-023-02083-4
NASA calls the Valles Marineris the ‘Grand Canyon of Mars’ but that is like calling the Grand Canyon the Lathkill Dale of America. NASA can be a bit silly at times. The 4000 km length and 7 km depth of the Valles Marianeris are far beyond the Grand Canyon and are similar to the sizes of the largest subduction trenches on Earth, such as the Mariana trench, but those of course have a very different origin and are also not visible from space. The African Rift valley is almost as long (3000 km) as the Valles Marineris but is much less deep or impressive. The only rift on Earth that really competes may be the political division in the US! For would-be colonizers, the Valles Marineris is crying out for a roof: it would make the perfect walk-in greenhouse. And for science-fiction lovers: you heard it here first. And for record-seekers: the deepest point of the Valles is 11 km below the surroundings. It is like a 4000 km long version of Lake Baikal, at least after removing the many kilometers of sediment from Baikal.
The canyon consist of several parts, with one part following a straight line (the Coprates Chasma) and others are more complex. The structure begins almost as a double, with the Lus Charma running in parallel to the Tithonium Chasma and later the Cando Chasma. At one point near the Melas Chasma there seems to be an impact crater straddling the canyon, although this could also be a collapse feature. At the end, the Valles runs in the Capri Chasma, broadens and turns into the chaotic structure of Eos Chasma. And at the top end lies the even more chaotic labyrinth of dark faults, the Noctis Labyrinthus.
How such a structure could have formed has been a long-standing question. 120 years ago, the answer would have seemed obvious. If the Valles Marineris had been known, it would been seen as a canal, an artificial structure to transport water from the mountains. You heard it here last. After its discovery it was viewed as a river channel, slightly complicated by the fact there can be no liquid water on Mars. Lava channels were suggested. Nowadays it is seen as a tectonic structure, an actual crack in the crust somehow caused by the rise and (slight) fall of the Tharsis Rise. Plate tectonics has been invoked, with the claim of a transform fault with as much as 150 km displacement although the evidence for that movement is fairly slim. There is a collapse model, involving withdrawal of a magma from an underlying reservoir, presumably a massive dike . A rift seems most plausible but rift models also come in many varieties. Some models make this a pull-apart basin, either through spreading rift or through gravity causing one side to slope away. There are simple rift and complex rift models. It is quite messy.
Looking at it in detail shows several aspects. The rift is deep and sharp. On earth, rifts come in two forms: wide and narrow. Wide rifts form basins, as in the western US. Narrow rifts form long, thin and deep breaks, as in Lake Baikal. The difference comes from the strength of the crust. Shallow, warm (young) crust gives wide basins, while deep, cold and stiff crust gives the narrow, deep rifts. The Valles Marineris is an extreme version of the latter. This might be expected from the deep, cold Martian crust. It really is like a dry Lake Baikal.
The Valles Marineris runs away from the Tharsis Rise and is clearly related to it, though perhaps younger, i.e. a late consequence of the Rise. The sides of the canyon show evidence for numerous collapses, small and large. This is not unexpected from a 7km high cliff and the slides likely continue to this day – the colonizers should be aware, stay away from the sides of the canyon and build their settlement more to the centre. There may have been flows of various forms (mud, perhaps) through the canyon, which did not form the canyon but, much like the Rio Grande, made use of a pre-made channel. And one more aspect: a rift like this is begging for filler and glue to stick the planet back together. Lava could have provided both the filler and the glue and the Tharsis volcanoes could have provided plenty, but there is little evidence for this. This is another reason to assume that Valles Marineris was a later addition, coming after the volcanoes had begun their decline.
The Valles Marineris is typically dated to 3.7 billion years ago, a long time ago for us but on Mars this is the ‘Late Noachian’ and the more recent Hesperian epoch. The formation may have been as fast as 200 million years or as slow as a billion years, through a combination of faulting and uplift. After formation, it did not lie down quietly. As mentioned, there were many landslides. Erosion took its toll. Mars’ ever-present winds got in on the act, caused erosion but also formed sand dunes throughout the canyon system. In one place there are multiple volcanic cones on the bottom of canyon, thought to date to perhaps 400 million years ago. Meteorites impacted and apparently badly damaged the western ‘Eos Chaos’ region, near the end of the canyon. Glaciers were present at one time and left their signs. There are various sulphate deposits in and around the canyon, possibly coming from pyroclastic flows – but from which volcano? In the top part of the canyon, there is a linear ridge running along the centre line of the canyon, called Geryon Montes, which reaches almost as high as the surrounding plateau and separates the Valles here into a double canyon. It is not a spreading ridge as might have been surmised: the rise does not stay in the centre but moves closer to one side, and further down there is a similar structure which does in fact merge with the wall of the canyon. The Geryon Montes is a sign of a double canyon, a remnant of the original plateau cut by two closely spaces rifts.
In fact there are as many as seven parallel canyons, in various stretches, that run alongside Valles Marineris. They may be precursors to the real thing.
The Valles Marineris cuts through several kilometers thick lava flows, deposited before the Valles formed. The Geryon Montes shows a number of parallel ridges along the crest, more than 10 km long: they are thought to be the remains of dikes associated with lava eruptions, brought to the surface by erosion (i.e. collapses into the Valles).
There is no structure like it in the Solar System. Neither is there anything like the Tharsis Rise. Two two must be connected, somehow. On Earth, a big bulge may form before a flood basalt, as for instance happened at Steen Mountain prior to the Colombia basalt eruptions. The terrestrial crust can adjust to increased surface area by thinning a bit. Perhaps on Mars that was not possible, and the bulge had to render the crust to create space: hence the Valles Marineris.
Clearly this was a very complex structure which formed over time in phases with some changes taking place even now, but it may have had simple beginnings. Still, a glass-roof cover sounds quite attractive. What a place it would be to call home.
Noctis Labyrinthus
Somehow, the beginning of the Valles Marineris is tied to the labyrinth of faults at the top. Here is where the Valles begins with a sharp multi-kilometer drop to much lower elevation. The name is not promising (Musk beware): the name means ‘the labyrinth of the night’. Wikipedia calls it a maze of steep-walled valleys and a spider-like network of grabens. The bottoms of the valleys or grabens have the surface of the plateau, so clearly this is a rather complex collapse feature. Do realize the scale: the valleys are 2 to 3 km deep! They go off in all directions and take no notice of the Valles Marineris. Some of the grabens cross the initial grabens of the Valles Marineris at right angles, as if they are oblivious of each other. The Valles is much deeper though: From the top of the labyrinth to the start of the Valles Marineris is a drop of 6 km, and it quickly goes several kilometers lower.
Wikipedia points out that the Labyrinth is the most chemically diverse region of Mars, including lapilli-like minerals and water-sulphates that are not stable under conditions on Mars. Evidence has been seen for deposits coming from a glacier. Other deposits have been interpreted as volcanic air fall. The minerals have been suggested to come on part from the combination of volcanic ash and a glacier, even though this is on the Martian equator – Mars’ climate is highly variable and glaciers can form anywhere at different times. In any case, the strangeness adds to the puzzle of the Vallis Marineris.
The landscape of Noctis Labyrinthus. Source: https://www.esa.int/ESA_Multimedia/Images/2016/01/Perspective_view_in_Noctis_Labyrinthus
The image below show a light coloured layer on the top of a terrain in the Noctis Labyrinthus, interpreted as a pyroclastic deposit with a thickness up to 150 meters. Wind has moved it into dunes, which cemented due to the interaction with ice. Similar pyroclastic deposits have been found in places around the Vallis Marineris and on Arsia Mons.
Source: https://www.hou.usra.edu/meetings/lpsc2022/pdf/2595.pdf
The mysterious Oudemans crater
Adjacent to Noctis Labyrinthus lies a large impact crater. It is called Oudemans and it has a diameter of 120 km. On Earth this would be among the largest known impact structures. On Mars, there is rather more competition: it does not appear on most lists of large craters – there are unnamed craters larger than this.
Source: Yin et al. 2021 https://doi.org/10.1016/j.icarus.2021.114332
Oudemans crater has the usual raised rim, a flat floor (as is common for craters of this size) and a central rise although this seems slightly off-centre. It is the only crater of this size on Mars which has no ejecta blanket around it. The rim has a gap where the crater floor connects with the lower-lying basin which starts off the Valles Marineris. This gap is unusual. The off-centre peak suggests that not only the northern rim but half the central rise is missing. This has been attributed to an oblique impact but that seems a less likely coincidence. Another explanation may be that the crater was emplaced on a sloping terrain. But it appears that the region around the crater and to some degree the crater itself have been modified, recovered, and to the north, perhaps collapsed. The crater floor would have been affected but may have been covered with later deposits.
Inside the Oudemans crater are some smaller craters, left by later impacts. One of these shows an almost identical shape as its big parent, with a missing part of the northern rim. This crater is only 1 km wide rather than the 120km of Oudemans, but it seems unlikely that it happened to come in under the same oblique angle. Something else wiped out part of the rim.
A small crater located inside Oudemans, which mirrors its shape. Source: Yin et al. 2021 https://doi.org/10.1016/j.icarus.2021.114332
The Tharsis Rise
The Tharsis Rise
All this happened on the slopes of the biggest bulge in the Solar System. In images, our attention is normally drawn to the sequence of three volcanoes, or the giant Olympus Mons at the top left, but these are not the Rise itself. The centre of the Tharsis is a plateau, 7-8 km high and 10,000 square kilometers, with the three volcanoes sitting on one edge. The full Tharsis plateau extends to lower altitudes and covers 4000 km by 6000 km, a very much larger area than the high summit region. Its height may be dwarfed by the three massive volcanoes, but the Tharsis Rise is far more massive than those volcanoes combined. It is continent-sized, on a planet that is rather smaller than ours.
And it has a problem. On Earth, continents stick out above sea level because they are lower density than the rest of the crust. They are like icebergs, floating with their heads above the water. But there are no such continents on Mars. All crust on Mars has the same basaltic density. Something is therefore pushing this bulge up, an enormous hot spot 20 times the size of any hot spot on Earth. And once the heat goes, the bulge will have to come down. So not only did this hot spot become enormous, it stayed in the same general area for 4 billion years, although probably not as active as it once was.
Yin et al in 2021 have argued that many features of this plateau and the crater can be explained if 3.5 billion years ago, a large ice cap was covering both the Tharsis Rise and the already existing Oudemans crater. The Rise is high enough to have supported such an ice cap at a time when Mars had a more significant atmosphere than it does now. An atmosphere rich in CO2 (climate deniers – look away now) traps heat through the greenhouse effect. But that does not create warmth, but redistributed it. It traps heat that would otherwise have gone up. So when the surface warms, the higher levels must cool. On Mars, the mountains are so high that they reach these once-cooled heights. The Tharsis Rise would have been colder at the top than it is now, and able to support glaciers.
Yin et al. suggest that the ice cap was 1 to 3 km thick. Volcanic activity and perhaps even mud volcanoes below the ice could have provided melt water, and form the hydrated minerals. And a moving glacier could have eroded the two missing crater rims, if the ice was flowing northward. Could this be a part of the puzzle?
The hidden volcano
Pascal Lee and Sourabh Shubham have now proposed that the Noctis Labyrinthus is the remains of a volcano., The evidence is still sketchy: you can find it in their short paper. It has attracted a fair amount of public interest. It is not everyday you find a 9-km tall volcano, even in potentia, in your backyard!
The larger region is shown here, from the Syria Planum on the left to the Valles Marineris on the right. This map extends about 1500 km. The Syria Planum is a 7 km high plain, sloping from 6.5 km on the left to 7.5 km on the right. The highest Montes in this image are (roughly) indicated by the red lines: these are around 8.5 km high. Although there are some peaks on the northern side of the Syria Planum (approximately at the label ‘Noctic Labyrinthus’) which also reach over 8 km, the highest region is the badly eroded and broken terrain above the Valles Marineris. And the Valles Marineris does not point at the centre of the Tharsis Rise. It points at this peak.
Lee and Subham propose that this region is the remains of an unknown volcano. It has been badly damaged by the arrow of time, much more so than other volcanoes. They point out the presence of the rough outline of a shield volcano, from the slope, the presence of summit depressions which look like th remnants of calderas, a circular depression at the centre, some low albedo material with the appearance of lava flows, and of course the variety of minerals which require mafic deposits. The volcano would be 250 km across – not quite as big a monster as the others, but still among the largest on Mars. Some features are indicated below.
They also point out the indications for glacial activity, as has been found by others as well. These are a field of rootless cones which may come from lava interacting with water below the surface, moraine bands, hydrated minerals, etc. The pyroclastic deposits seen in the region could have come from this volcano, although there are other suspects here! The volcano is called, at the moment still optimistically, Noctis Mons – the mountain of the night.
It raises questions, of course. Why the Labyrinth? Could that be caused by massive ice melt collapsing the surface? But why are the valleys so extreme deep? Why the Valles Marineris? Why the glacier on this mountain and not on the others? That last point may be answerable, as the other volcanoes are just too high. Glacier would have formed on their lower slopes rather than on the flatter summit, and therefore not grown as deep. Was the volcano a late addition to the Tharsis Rise? Why was it here and not closer to the centre of the rise?
The Tharsis Rise did not form in a single location. It formed over time, with the centre of activity extending over a 5000 km distance north to south. This does not seem to have a simple migration but was perhaps like a multi-headed plume with different heads being active at different times. One of the centres of activity, as indicated by the wrinkle ridges around the Tharsis Rise, was midway between Arsis Mons and the proposed Noctic Mons. The high plain of Syria Planum is often seen as the main centre. This is not far from the location proposed here.
The paper is meant to stake a claim. It does not present sufficient evidence that Noctis Mons is real. But it will stimulate a lot of discussion. And isn’t that what makes science is all about?
In the mean time, we can be excited about the possible discovery of a volcano that formed so long ago, that here on Earth not even Australia existed. And that says something.
Albert, March 2024
Was surprising to see it pretty much unchanged from yesterday afternoon. Maybe this will last longer than 72 hours, and in that case possibly enter the sea, which should be fun to watch.
The hesitating eruption indicated that something would change. We currently witness the first Grindavik eruption that can indeed focus on a central lava vent. The vent is still a short fissure of (?) 100m (?) if I estimate it correctly:
https://www.youtube.com/watch?v=8bfcTBLvPiM
The 4th Grindavik eruption does, what Fagradalsfjall did on the second day of its eruption: The shift from fissure eruption to a central vent. Video of 20th March 2021 (2nd day of Fagra I):
Thorbjörn Webcam has a good view:
Once the weather clears…
The weather likely causes some steam clouds above the lava fountains and field. Weather forecast for Grindavik shows that we get a rainy day today:
I am extremely tired of doing research for my articles, coming across an interesting study that definitely has some crucial information but being unable to access it because it’s behind a paywall Some studies that were released 30-40 years ago are still cost 30 dollars to access which in my opinion is just ridiculous.
There is good money for scientific publishers. Not only do you gave paywalls, but researchers generally have to pay to have their work published.
*cough* // site removed // *cough*
Apologies, I shouldn’t have posted that due to it affecting the people who dedicate their time on the blog.
send an email to volcanocafe with details of which paper. We will see whether we can access it for you. No promises but it may work
Hi Tallis,
If you put the details out here in the open, I can take a peek if our library has it in its system. Our geology department keeps a fairly good portfolio of subscriptions and provides access to others through interlibrary access.
Thanks!
https://linkinghub.elsevier.com/retrieve/pii/S0377027319301684
Currently trying to find out how much magma has accumulated at shallow depths.
Hi Tallis,
That was straightforward as I was able to download that paper without any problems.
Now, how do I get it into your hands? I could send it to VolcanoCafe and hope that one of the dragons forwards it to you.
Holger – yes, that’s fine, although I was able to download it myself so I can always send it to Tallis as I already have his email address.
Hi Beardy Gaz,
No problem. Feel free to e-mail the article from your end.
Thank you for your help everyone.
Taliis, I agree with you. While trying to do my number theory research (and I am on the cutting edge) these websites want to soak me for $60 to $129 for just a single pdf paper. What I do is privately email the mathematician, and he/she sends me the paper for free. (example: back issue articles Mathematical Gazette)
The fee is not meant to be paid! It is meant to block you from reading it, so you bug the university library to subscribe. If people start to pay, the publishers will raise the fees until they stop.
This is the only theory that I have ever heard about the ridiculous per-article fees that makes any sense. Fortunately I have access to most of the big publishers through my University so don’t have to deal with that nonsense. And for those rare occasions where they don’t, I can usually find another means of accessing (like from the author’s website).
My policy is that if the paper is not accessible to me either from the publisher or from arxiv, then I will assume the author had a reason to not want me to read it so I won’t cite it.
The Lava Wall was successfull, lava invaded the Wall Street 12 days before 1st April could produce a news title of this.
What if next lava flows takes the same way? The wall can bear one lava flow or two, but then it’s Game Over. It’s possible that the site of the current site erupts several times and that lava flows take the same directions again.
Increase the hight of the berm (where there is a risk) before the next event. It will take a lot of soil (old lava remains).
Does anyone know if the lava has reached the road yet? Down south of course not the one that was crossed 5 hours after eruption.
One thing I missed both during Fagradalsfjall’s eruptions and Svartsengi’s are Webcams on the lava front. We don’t know where and how the A’a lava is creeping now. It is nearly stopping, but would be interesting to see, also the interaction between lava and landscape.

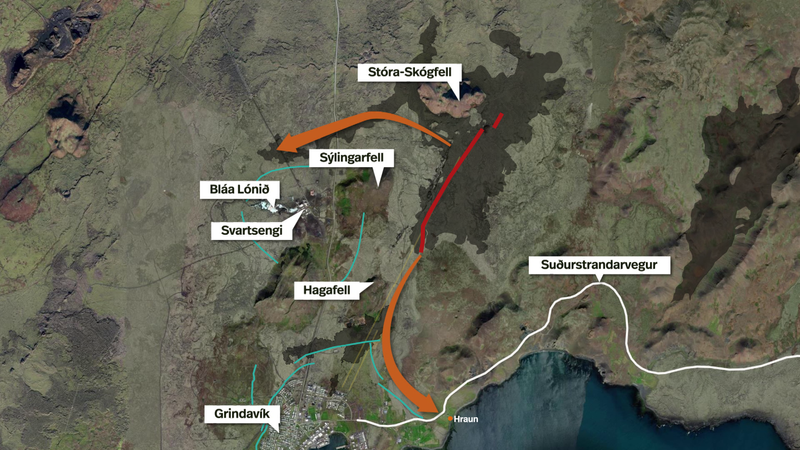

What is the west flow doing? We’ve seen a lot of discussion about the Southern Coast lava flow, but there is a second western lava flow that cuts off the Blue Lagoon from Keflavik roads.
