The Great Whin Sill

We are delighted to present a guest post by Clive:

A letter from Hadrian’s Wall

Publius Aelius Hadrianus Augustus, The Emperor of Rome, inherited a largely developed Empire. There is no need to write a biography. Others have already done that. Suffice it to say he was a man who consolidated, set defences, and established security before considering expansion of the Roman Empire.

Far on the northern reach of the Empire, irritable Caledonian tribes (Picts) from Scotland took a real dislike to the Roman occupation of Britannica that lapped against their lands. Agriculture, roads, towns and forts sprung up and spread north. The Caledonians would have none of this. What had the Romans ever done for them? Meanwhile, tired of the midges and the lack of decent loot in Pictland, the Romans decided to draw a line.

Therefore, Hadrian and his officers planned a 73 mile (80 Roman Mile) long wall to mark the northernmost reach of the Empire in Britain and keep irritable Picts out of Roman settlements. Once complete, the Wall forts housed cavalry units for swift action against the Picts in times of war, and to put a stop to their cattle rustling (a long term hobby in the North of England that thrived until recent times; Armstrongs, Robsons, Dodds, I’m looking at you.) The Wall also protected Britannica against the ongoing clan fighting rampant among the Picts. It might have kept out some of the midges, too.

The Vallum Hadriani, or the Pict’s Wall, was started in AD 122 and took seven years to build. It was built from Carboniferous sandstone locally quarried and mortared with local lime (some parts were turf wall). And the remnants stand today, most prominently on the Great Whin Sill in Northumberland.

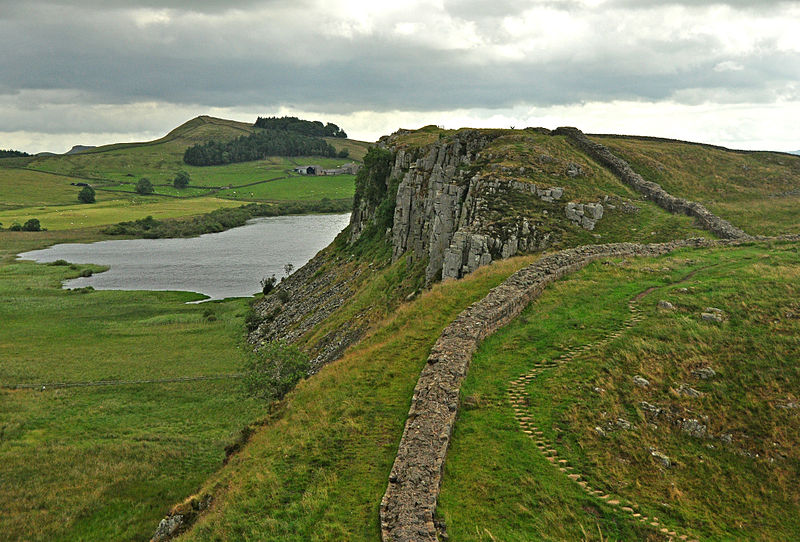

Hadrian’s Wall and Crag Lough, © Nilfanion Rights: https://creativecommons.org/licenses/by-sa/3.0/deed.en

I’ve stood many times on The Wall, once on a blisteringly icy New Year’s Day wind that froze my nose and ears, and thought about the poor Auxiliary grunts who had to man this wall. One 500-man unit were Moors from northern Africa! How they must have suffered. The Wall and its associated forts and towns (i.e. Vindolanda) operated for nearly 300 years; generations lived and worked in the shadow of the Wall.

Did it ever occur to the Romans that ancient volcanic activity gave them their line of defence? I doubt it.

So, what is the Great Whin Sill?

Across the northern parts of the UK, close to my old home city of Newcastle, rises a magnificent volcanic intrusion weathered out into the landscape. Yes, even in Durham and Tyneside our landscape is shaped by volcanic activity! Welcome to the “Great Whin Sill”.

“Whin”, is northern UK word for a kind of rock considered too tough for shaping and building. A rock so hard, its resistance to weathering offered a natural defence line for Roman engineers and their Wall. Most people will have seen photographs of the Wall perching on scenic crags as it winds across northern England from sea to (ahem) shining sea.

(By the way, “Whin” is also a word for the harsh, thorny gorse that frequents the area. Other, more fanciful sources have also arisen.)

That hard rock is a Dolerite. The Whin Sill appears in County Durham, Northumberland and Cumbria. It’s not simply a single, long ridge as the scenic pictures of the Roman Wall might suggest. The Whin Sill is a huge underground volcanic block, created in a series of four major subterranean intrusions, or swarms. It stretches from the Teesdale area, north to Berwick. It also spreads under the North Sea beyond the local coastline. Its average thickness is around 30m, and the maximum known thickness is approximately 70m.

There are two stages to the intrusions. The Little Whin Sill which intruded first, and The Great Whin Sill which is made of several major swarms.

(Being stubborn northerners, the locals also apply the term “Sill” to sandstone outcrops, too, like the Firestone Sill and the Grindstone Sill, puzzling many young geologists.)

The “Great Whin Sill Dolerite Complex” formed some 295 million years ago (“before present”, give or take a year or two), at the end of the Carboniferous period and the start of the Permian. The Complex came about during the continental manoeuvres building the Pangaean Supercontinent. Within this landmass, Britain lurked around the tropics and the area in question was under a shallow sea.

The insertion of magma dykes and the associated large spreading sills came about from crustal extension. The sills slid naturally through the local strata, underlying the current (and rather depleted) coalfields and limestone strata.

The Complex is estimated to contain a volume of around 215km3 of Dolerite in a network of ancient dykes and extensive sill sheets. The visible parts are estimated to have cooled underground over 60 years. The overall spread of the system covers about 4,500km2.

For Volcano Café’s hardened petrological experts, the majority of the rock is a medium to fine-grained quartz-dolerite containing plagioclase (largely Labradorite), with coarser grains of pegmatite appearing in more central parts of the intrusion. It is mostly a typical tholeiitic (containing less sodium), but transitional to alkaline.

Like slow-cooling deep intrusions, columnar structures are often found in exposed areas, so the Giant’s Causeway has a rival!

Whin Sill at Spindlestone Heughs

Whin Sill at Spindlestone Heughs © Copyright Andrew Curtis and licensed for reuse under this Creative Commons Licence.

The Little Whin Sill (which is exposed in Weardale) is an earlier intrusion, and is geochemically slightly different to the main Whin Sill intrusions being mostly olivine bearing and more ‘primitive’.

Basaltic ridges (i.e. Cauldron Snout river cataract) show some of the Sill magma may have reached the surface through fissures.

There are four major segments or ‘swarms’ to the intrusions. Off to the north east coast there is the Farne Islands dyke and sill. Here, at Holy Island of Lindisfarne, the castle is prominent on a dyke which, down by the beach still shows the hardened limestone contact skin. Like Lindisfarne castle, the famous Bamburgh and Dunstanburgh castles also stand on dykes. These emplacements were through the carboniferous block that surrounds the nearby Cheviot Hills Devonian volcanic block (and that is another story).

South and west, from the shore, can be found the Alnwick Sill and Dykes swarm. Further west the famous Hadrian’s Wall tops the exposed and tilted Great Whin Sill swarm outcrop popularly photographed.

The Complex’s southern swarm area rises to provide the lovely waterfall, High Force in Teesdale. Nearby in County Durham one can find outcrops of the Little Whin Sill swarm, which precedes the rest of the Sill development.

High Force, Teesdale. (Own Photo)

The result on the northern landscape is a rough kind of “box” shape of sills surrounding County Durham and southern Northumberland. Westwards from Alnwick the north of the box includes the famous Hadrian’s Wall exposure, to the west the Pennine Escarpment Sill runs north to south (to keep those pesky Cumbrians from invading) This sill provides one of the most amazing views in Britain over the Vale of Eden to the Borrowdale Volcanics of the Lake District and the Firth of Forth.

High Cup Nick

High Cup Nick. A deep chasm on the Pennine fellside, this famous nick, a dramatic geological formation at the top of High Cup Gill is part of the well-known Whin Sill. © Copyright Marathon and licensed for reuse under this Creative Commons Licence

The bottom of the box is the Little Whin Sill, more of the Great Whin Sill, and the “Hett Subswarm” that is a set of dykes (Hett Dyke and Ludworth Dyke) running west to east.

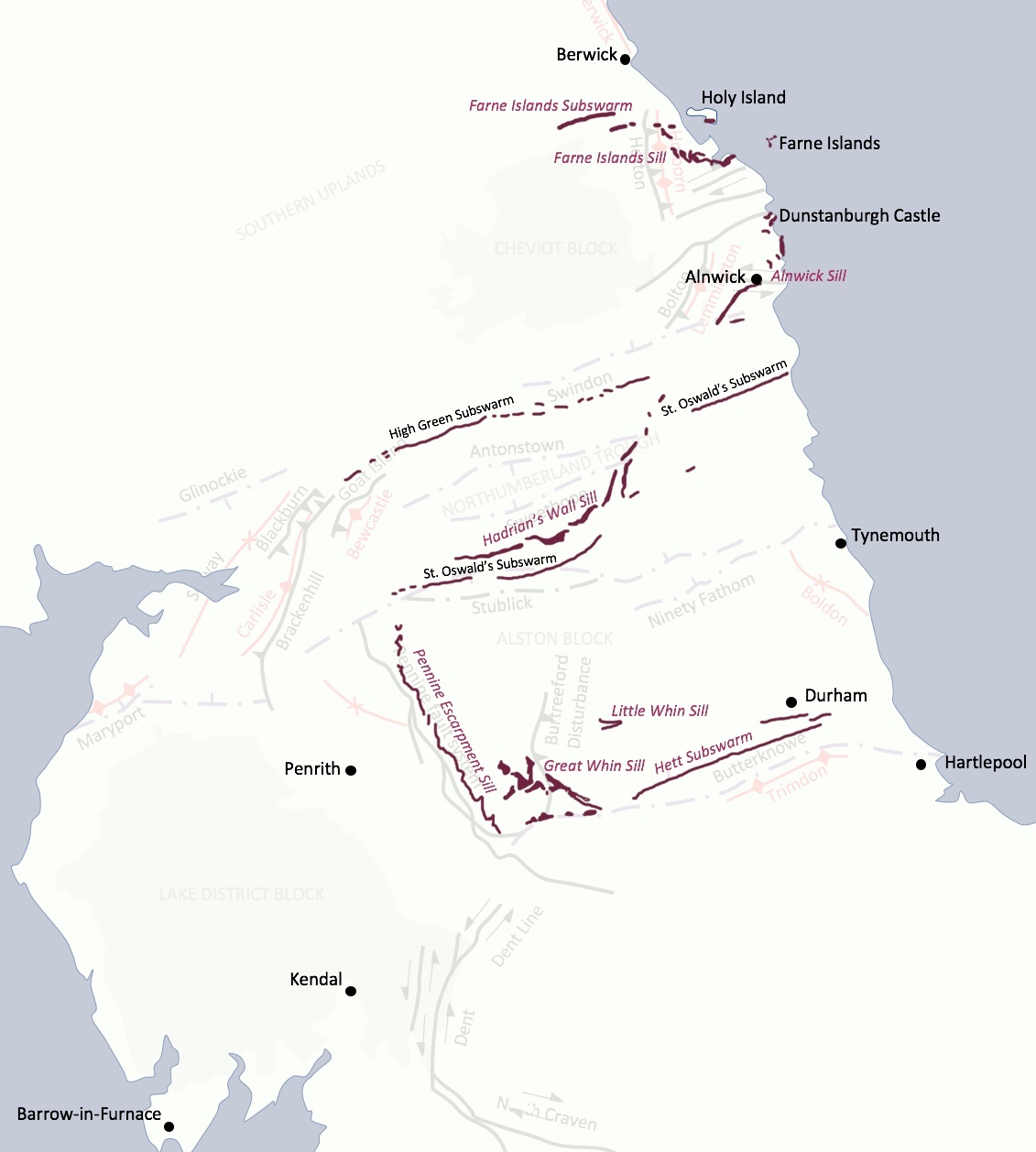

Map of Exposures of the four Whin Sill components. Reprinted with kind permission of Ian Patience, http://www.geologynorth.uk

For the petrologists, I have supplied further reading at the end for you to get your geochemically-stained teeth into.

Naturally, the intrusions affected the local Carboniferous rock. For example, contact metamorphism is most visible in Upper Teesdale where the local limestones have been morphed to a marble known locally as “sugar limestone.” Instances like these affect the local botany. Here can be found the unique “Teesdale Violet” and blue Spring Gentians, taking advantage of the shallow soil that restricts trees and bushes. Upper Teesdale also has a magnificent juniper forest. Local nature is greatly influenced by the varieties of rock.

Outcrop of sugar limestone (close up)

Outcrop of Sugar Limestone © Copyright Andrew Curtis and licensed for reuse under this Creative Commons Licence.

You may be interested to learn that under the Whin Sill Dolerite, the granites at nearly 1km depth are fissured and full of warm water. The Weardale granite waters have an ambient temperature of 46°C! Geothermal energy remains a possibility for the north east of England.

The local tough Dolerite is also used for roads, too. Many northern roads are layered with Whin Sill chippings wrapped in the splattered tar-spraying system favoured for surfacing UK roads. Northern motorists have the frustration of super-hard Dolerite pinging off their paint, and shattering windscreens driving along a freshly sprayed road.

Many people think of the north east of England as coal mines, smoke, slag heaps and dirt.

Pleasley Colliery - north shaft headgear

Pleasley Colliery North Shaft Headgear
© Copyright Chris Allen and licensed for reuse under this Creative Commons Licence.

Instead, think of the volcanic basin that shapes the area and gives it its rich texture of dramatic outcrops, castles perched on ancient dykes, and magnificent waterfalls. Northumberland, Durham, and Teesdale have immense variety in their untouched landscapes. And volcanic activity forms a part of that variety.

And I’ll leave you with a final thought: the Roman Auxiliaries shivering on the Wall were hundreds of miles from Vesuvius, Etna, Stromboli and the Phlegraean Fields of their warm homelands. Yet they stood guard on a massive outcrop of volcanic rock!

Postscript. Written by one with no geological or volcanological education, this short summary omits a whole host of interesting geology, volcanics and petrology. It also omits many landscape features, proper volcanic information, and wildlife implications. I apologise, for I simply cannot fit it all in! I hope instead it will give some of you an incentive to explore the region and find out more for yourselves.

(See below for references / reading.)

Clive

References and further reading

Geology

Hadrian’s Wall

Biology and other
