While we are waiting for more information (and daylight) on the large Pacific eruption, here is a repost. It complements the previous post on igneousity (for which surely the ig-nobel prize was invented?). Enjoy.

Built on lava rock

What’s in a name. Would lava by any other name smell as sweet? Perhaps that is not the right question: lava is many things, but sweet-smelling it is not. It smells like a rose bush that was doused in some evil sulphurous pesticide and then put on fire. This rose also constantly explodes with a roar well above the legal maximum. No, Shakespeare’s rose is definitely the wrong analogy. The course of true lava never did run smooth.

But in geology, names are everything. The number of different minerals is staggering, and each has a different name which normally reflects its point of discovery rather than implying anything about the composition. Olivine has nothing to do with olives and perovskite is not a rock band. Do you know your cryolite from your kryptonite? How is your appetite for apatite? Studying geology must be like learning Inuit.

Volcanic rocks share this nomenclaturic nightmare. What on earth is rhyolite? What happened to komatiite? And what stuff is tuff? Even google can get confused: ask for amygdale, and it gives the right definition but images of something completely different. At least it knows not to show images of amygdala (which might require that you confirm your age). But for all of you who were confused but afraid to ask, here is help. This post gives all you need to know to understand the variety of rocks from lava, or at least help you speak like you do. Welcome to the club. We all bluffed our way into geological volcanology.

Lava is molten rock. At the end, it solidifies back into rock. So you should get back what you started with, right? Wrong. Just imagine a block of ice. Melt it, vaporize it, and let it condense and freeze, you may get snow. Both are solid water, but that is all they have in common. So too with rock, although with much more variety.

So let’s have a look at why not all lava is the same. For most of the images, if you click on them you will get full resolution. All the poor ones are from my own collection.

Basalt

Basalt. Photo by the author

The type specimen of volcanic rock is basalt. It is effectively mantle material, which was melted at the bottom of the crust, ejected from a convenient hole (also called a ‘volcano’), flowed downhill for a bit and solidified there. You are looking at displaced mantle material. Most of the ocean floor consists of this stuff. It is heavy because the mantle is made of denser material than the continental crust (if it weren’t, the crust would sink down like an overweight iceberg and continental existence would be short-lived). In practice, the density of basalt is close to 3000 kg per cubic meter. The continental crust is typically around 2700 kg per cubic meter.

Basalt is the ultimate volcanic rock. Why doesn’t every old lava flow look like this? There are a number of reasons why not all lavas are the same.

1. Temperature and viscosity

The first effect is that of temperature and viscosity. I know, that is two, but they are closely related. Lava can be compared to honey. Warm honey flows easily, but put it in the fridge for a few minutes and it becomes much less keen to spread out, even though it is still a liquid. Honey is actually quite a complex substance, even though it is mainly just sugar dissolved in water. The melting temperature is around 45 C (depending on the sugar concentration): above that temperature, it does indeed behave like sugar water. Below that temperature, it should freeze but it doesn’t, at least not until the temperature goes down to about 5 C. In between, it is a super-saturated liquid, where there is more sugar dissolved in the water than fits. The excess sugar forms crystals and this turns the honey into a mush. As it cools, more and more crystals form and the honey becomes stickier and stickier. Finally, it freezes. (Strictly speaking it doesn’t fully freeze until it reaches -50 C, but below 5 C it is so sticky you hardly notice the difference.) Now turn the temperature back up – and nothing happens until you reach the melting temperature. Funny honey. (When we call a loved one ‘honey’ one does wonder which characteristic of honey is intended. This expression is definitely open to interpretation.)

The stickiness is also called ‘viscosity’. Higher viscosity means stickier, i.e. more reluctant to move.

So in what way is lava like honey? Should I call my loved one ‘lava’ or would that get my fingers burned? Well, lava is also a mix of substances, and these have different melting temperatures. As lava cools, some substance may come out of the liquid and crystallize. As more and more crystals form, the lava becomes less runny and more sticky. And this gives rise to the two Hawaiian words used to describe lava flows: Pahoehoe and A’a.

Pahoehoe

A’a.

Pahoehoe is the thinner, runnier lava that happily covers large distances and creates smooth lava flow which afterwards you can walk on. It is the hot honey.

A’a is the sticky lava that refuses to go anywhere fast. It forms very uneven surfaces and is a nightmare to walk on (even after it has cooled enough). Its surface will shred your shoes – this is the one place on earth where high heels may give an advantage. A’a is the honey that has been kept too cool and really would have needed a few seconds in the microwave.

In Puna, the early eruption brought up lava that had been in storage for decades – perhaps centuries. Even though it had stayed warm (a kilometre of rock insulates pretty well), it did not stay hot. This became the sticky stuff, with high viscosity; this explains why the initial eruptions did not produce much in terms of lava flows. It built walls – not roads. Later, the new lava arrived and this was much hotter. The hot, new, all-running and dancing low-viscosity lava ran like runny honey and in no time covered huge swathes of country side.

Even though both are basalt, the two behaved very differently. Poor Puna.

2. Composition

Let me divert for a minute. Lava contains a mix of elements. The main ones are iron, magnesium, silicon, and some other things such as aluminium (called aluminum in Trump land, a spelling that was in use in the UK very briefly but was introduced to the US through the Webster dictionary of 1812.) Each of these forms minerals (mainly oxides), and each mineral has a different melting point. Hot magma contains all these elements and their minerals, although not always in the same ratios. But keep magma for a while in a storage facility (also called a magma chamber) and it begins to cool – very slowly. The first minerals to hit their melting points are iron and magnesium oxides: they form crystals and drop out of the solution. Beforehand, the magma was called mafic (for magnesium (never to be called magnesum) and iron). Now that iron and magnesium are becoming depleted, it is called andesite – you may remember this word from Puna’s infamous fissure number 17.

Store the magma for even longer, and you are left with mainly silicates, mixed with a few other elements (aluminium, calcium, sodium). This is called felsic lava (the word ‘silicic’ is also used). Rhyolite and dacite are of this form. Dacite has made an appearance in the recent Puna stories, albeit only found in deep (geothermal) drilling and not on the surface.

You can expect that this will form a sequence in temperature: mafic lavas are hotter and thus less viscous, andesite is cooler and stickier, and felsic lavas are positively cold (as lavas go) and nearly immovable. And for the most part, you would be right. Mafic flows – felsic stalls.

Rhyolite

Andesite

There are a few exceptions: sometimes magmas form by melting rocks that themselves already lack certain elements. For instance, imagine a rhyolitic magma chamber solidifying into rock. Long after, heat finds its way to the rock and melts it: the new magma will have the composition of rhyolite, but it could well be much hotter than usual, and therefore far less viscous. You can now get a rhyolitic pahoehoe, and this is for instance found along the Snake River in Trump land.

(Hint: if you want to impress your friends, using the term rhyolitic pahoehoe in Puna will do wonders. But avoid saying the andesitic a’a of Haleakala which could leave the impression that you had a drink too many.)

Iron makes the world look black. That is true in lavas as well: mafic basalt is dark to black, while the andesite is greyer and the rhyolite is a bright lava. Of course, add oxygen and over time iron turns red, like the soils of Oklahoma.

I should point out here that the world of lava is simpler than it used to be. A few billion years ago, the mantle was hotter than it is now and therefore lava was considerably hotter as well. This gave a type of lava that is ultra-mafic, an extremely magnesium-rich, which is called komatiite. They don’t make it anymore.

3. Rate of cooling

So temperature is important. But how quickly the temperature goes down is also relevant. Lava rocks that solidify fast look very different from ones that cool only slowly. The rate of cooling has three different effects.

(i) Shape

The first of these makes sense: if the cooling is fast, the flow patterns become fixed in the material. The ultimate example is pillow lava: these are erupted under water, and in consequence cool very rapidly (in the battle between the mid-oceanic ridges and the ocean, the lava has yet to win. Luckily loosing builds character and pillow lavas do have that. Although one could argue that winning builds more character.)

Pillow lavas

Petrified lava ripples

On land, cooling is slower. Thin flows on the surface cool faster than thick ones. In the picture, the difference between the thin flow in the foreground and the thicker ones in the background is notable! The former solidified fast enough that the flow patterns froze in.

Pele’s hair

An extreme case is that of liquid droplets flying through the air. As they cool they solidify, and form long streamers. This creates the strangest rock of all, with the evocative name of Pele’s hair. You have to feel sorry for her hair dresser! What kind of comb would be needed? This lady is not for brushing! Pele’s hair can be found especially around lava fountains. But beware: the hair strands can be needle-sharp and should be handled only with thick gloves.

The strings come from wind acting on the flying droplets. If there is too little wind, you don’t get strings but tear-shaped droplets (very much like the shape of a drop of water falling from a leaky tap), about a centimetre across. These are called, not entirely surprisingly, Pele’s tears (although with the lady’s reputation, the need for tears seems minimal.)

(ii) Glass

So much for the first of the three effects. The second one is very different: this is when lava is cooled so quickly that it briefly forms a supercooled liquid, i.e. a liquid below its melting temperature. You can create this yourself by putting distilled water in the freezer. It will remain a liquid even though its temperature drops far below freezing. But disturb it ever so slightly, and it freezes over instantly. If you do this with molten rock, and let it suddenly solidify well below its melting temperature, it can create a glass. (The temperature below which this can happen is called the glass transition temperature, which is different for each material.) The trick is to make it solidify all at once, with as few separate crystals as possible.

An easier way to do this is by starting out with a lava which contains a bit of water. Water lowers the melting temperature, and so the lava can be cooler whilst still a liquid. Now evaporate the water (as can happen as the lava becomes exposed to air). Suddenly the melting temperature goes up, and the lava finds itself caught out, being a liquid well below its new melting temperature.

Obsidian

A well-known example of a rock that formed in this way is obsidian, a black rock of volcanic glass. It forms from silicate-rich melts, i.e. from rhyolites. Obsidian was sought-after in the stone age as it can be used for cutting (including the careless owner).

It should be harder to make a glass out of basalt, because it is hotter to begin with and readily forms crystals while cooling. But Hawaiian volcanoes manage it quite easily. Basaltic glass is called tachylite. It can be a thin edge on a crystallized lava flow, but on Hawaii it can form thick layers. And now you will not be surprised to know that Pele’s hair also consists of strands of this glass. Ouch again.

Perhaps the most dangerous of all is when lava meets the ocean. The instant cooling forms small particles of glass, and the rising steam carries them away. The white plumes of Puna, where the lava comes over the sea cliffs, are pretty only from a safe distance. There are several reasons why you shouldn’t breath in the stuff – the tiny glass particles among them.

(iii) Crystals

The third effect is that of crystallization. As lava cools, crystals begin to form. The slower the cooling, the larger the crystals can become. These crystals (or their absence) are easily recognized by eye.

Compare the following wo rocks. Both are obsidian, and thus formed through rapid (instantaneous) cooling. The left one looks ‘normal’: a hard glass, albeit with a greenish tint. The one on the right contains a host of crystals, a feldspar to be precise. What happened? It spend some time cooling slowly, allowing the crystals to form, before it suddenly cooled very fast and let the remainder turn to glass. The texture shows that it cooled in two distinct phases, one slow, one fast.

Two types of obsidian, with and without crystals

Pitchstone

The next one is pitchstone: also a rhyolitic glass, like obsidian, but containing a larger fraction of minute crystals. It gives the rock a dull appearance. The crystals are very small, and this shows that the initial cooling was fairly fast. Pitchstone contains a bit more water than normal obsidian, and so the rock has a lower melting temperature. The various minerals with the highest melting temperature had time to form small crystals before the remainder turned to glass.

Pegmatite

And finally the other extreme: this is a rock with enormous crystals which must have cooled very slowly. In fact this particular rock, a pegmatite, would have formed in the deep crust, where the cooling was so slow that the single crystal could take centuries to form, before the surrounding magma finally turned to stone.

Fragmentation

Now we know what volcanic rocks look like. But often, volcanic rocks look very different, striated or welded. They also come in a range of sizes, from the island-sized flows of Mauna Loa to the ash of Mount St Helens. What causes that difference?

Fragmentation of the lava comes mainly from explosions. Rock does not easily explode, of course: it lacks suitable chemistry, and lava is nowhere near hot enough to vaporize rock. The explosions come from trapped volatiles. Big explosions come from volatiles in magma which suddenly decide to become a gas, need a thousand time more volume for this, and end up blowing apart complete mountains. But it can also come from trapped vegetation underneath a lava flow, or even in one infamous incident, trapped snow. These kind of explosions produce flying lava bombs – the name is not entirely accurate, as the bombs are ejected by the explosion – they do not explode themselves.

The explosions produce fragments of a variety of sizes. They are distinguished by size.

Particles smaller than 2 mm are called ash.
Up to 6.5 cm it is lapilli.
Above that size it is a lava bomb.
All together it is called tephra.

Lava bombs of two different sizes

What goes up must come down – as true in volcanics as it is in politics. It is important to know that a lava bomb is made of lava – it will happily start a fire if it lands on flammable material; the danger is not just in being hit by a projectile with the size and speed of a cannon ball (although that is not entirely without danger either). They can be as large as 5 meters (although 20 centimeter is a more typical size, luckily), be ejected at a speed of 200 meters per second, and can travel considerable distances through the air: up to 5 kilometers. Lava bombs may also arrive as tachylite. Ouch!

Lapilli tuff

Smaller fragments travel further than large ones because they benefit from the lift from rising hot air of the eruption. These fragments also are much more voluminous, and the ash can cover large areas in a blanket that is centimeters to meters thick. It welds together, either through heat or over time. The welded layer is called tuff.

The name is not fully appropriate because it is the softest rock created by volcanic eruptions. The tuff can embed lapilli fragments and even lava bombs if not too far from the eruption site. Whereas the lava bombs have the composition of the lava, the tuff will often have a composition close to that of the mountain. If lava, it is often rhyolitic (because that explodes well). Tuff is often light coloured, and can be almost white. The best place to find tuff is in local buildings: it is everyone’s favourite building material. Although, be aware, if your local buildings use it, somewhere in the area is a mountain which made it, and which may have its own building demolition program.

A tuff sandwich. Source: sandatlas.org

The tuff in this image is layered between lapilli (which falls first) and ignimbrite, which is debris from a pyroclastic flow. The tuff can be recognized by its smoother texture.

Gas content

The final piece of the puzzle is the gas content of the erupted lava. If the gas content is high, the lava becomes frothy, and when it solidifies it has lots of holes, like a swiss cheese. There can be so many holes that the rock weighs less than water, and floats: this is called pumice, and it forms especially well after an underwater eruption where the water provides more gas than the lava can cope with. The sea can become covered by rafts of pumice kilometres wide: after Krakatoa, they made local sea travel almost impossible for months.

A floating island of pumice

Scoria. Source: wikpedia (Jonathan Zander)

If the stone has lots of holes but not enough to float it is called scoria or cinder (the two words are interchangeable; ‘cinder’ is older). This is where Cinderella got her name from. (No, I don’t know either. And nowadays she would be called Scorella.) These form especially during volcanic explosions as the gas-rich lava is shot out from the vent.

Amygdale

But gas bubbles can also form underground, and leave magma that solidified under ground with holes. Over time, the holes may become filled with water and the water can deposit new minerals, often a calcite. These rocks are called amygdales.

But it can get even better. The rocks can have very large holes inside, and over time, anything can happen in those holes. Open the rock and you may have the surprise of a life time, with wondrous crystals and colours. Here is an example, an oversized amethyst. What causes the different colours? That, my dear Watson, is elementary. But the science of volcanic gems is a different topic – a different post, perhaps.

An oversized amethyst

Albert, May 2018

Related posts

343 thoughts on “Lava rocks! (republication)”

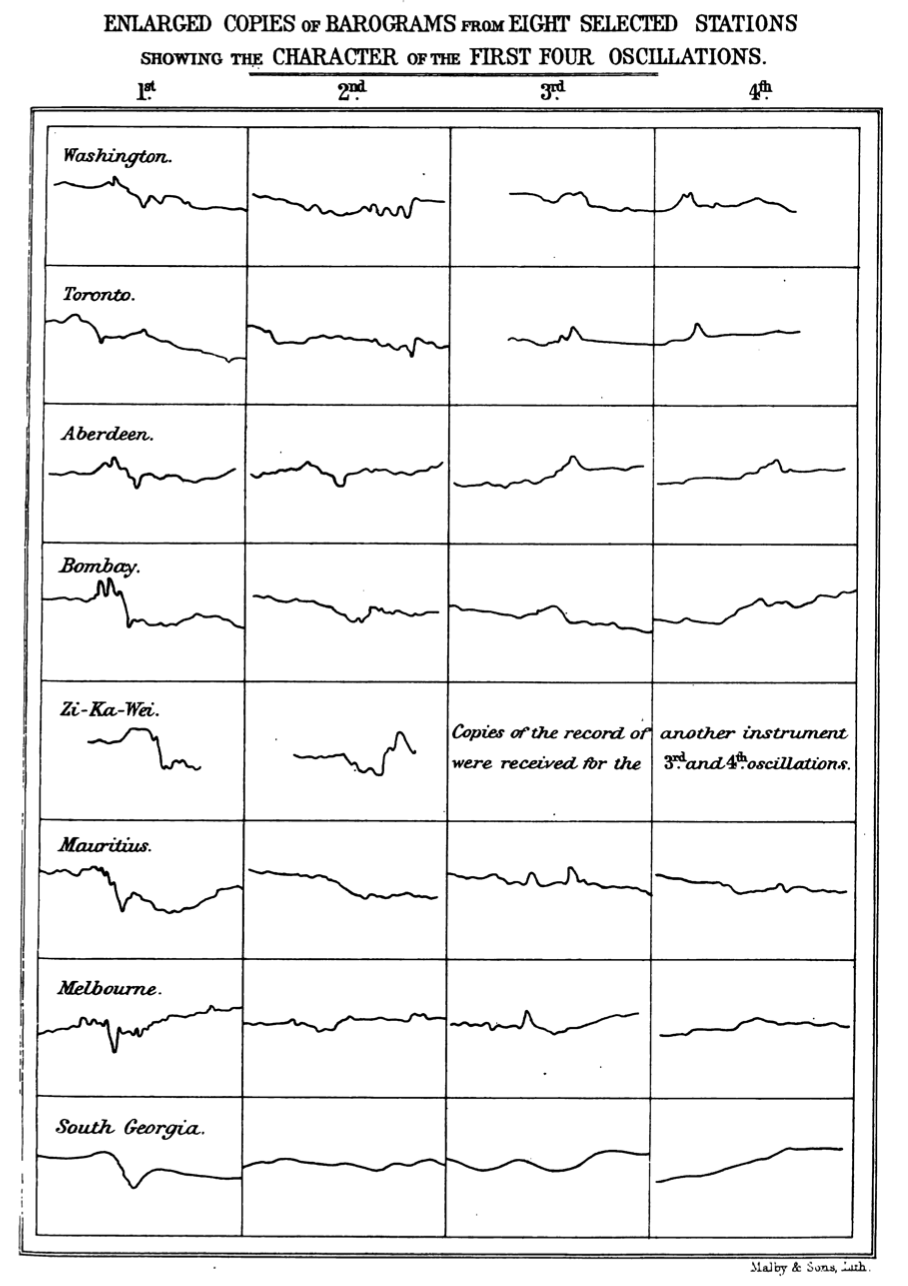

  2. Here are the published pressure measurements of Krakatoa in 1883. Just like today, they show first an increase, followed by a decrease of pressure, and are seen worldwide. The wave was detected 7 times of which 4 are shown. Note that the wave goes around the world both ways, and so passes each place twice coming from opposite directions. So 7 detections means 4 times around the world. The lower pressure part of the wave disappeared after the first round

    • I have some thoughts about the atmospheric shock. The wave that has been recorded all over the planet is likely not caused directly by the ejection of magma but by its interaction with the atmosphere. As the magma exits the nearby atmosphere heats up and expands up into a plume, this pushes the air away generating a wave that causes a pressure increase. The pressure decrease is perhaps due to air flowing back towards the lower part of the plume, or simply a reaction to the first pressure increase.

      The magma must have met water in its way up which then flashed into steam rapidly expanding in volume. The water must have added up to the volume of the cloud. Thus the cloud and the ensuing pressure wave travelling across the atmosphere must be much greater than what would be generated by an eruption of similar volume on dry ground. This makes it hard to judge the volume of the eruption based only in the monster sized plume and the pressure waves it has generated.

      • The pressure wave is explosive, so comes from the shockwave. The positive wave followed by the rarefaction is normal, it is after all a wave. The explosion is caused by the flash evaporation of volatiles, either in the magma or from water. Krakatoa also involved water, probably not from the magma chamber collapse, as often suggested, as the explosion was off-centre and the magma conduit survived the explosion. Perhaps it was triggered by a flank collapse.

      • Obviously it met water
        The caldera is underwater like a lot worldwide on land that are filled with lakes
        This was a particularly fast explosion by the sonic boom which sounds like a rifle shot not the usual low frequency boom with other eruptions
        This literally exploded like TNT
        The volume of material isn’t relevant the energy released in a short space of time made it so violent and powerful

    • Okay… shockwaves. Albert’s data (thanks Albert!) shows that Krakatoa’s shockwaves were powerful enough to circle the Earth more than once. I have yet to see evidence of this for Hunga-Tonga, so IMHO this would mean that Hunga-Tonga was nowhere near as powerful as Krakatoa 1883 (which is estimated to have been a VEI 6, though as others have said, VEI isn’t well suited to measuring explosive intensity).

      As for the shockwave itself, it’s the gunshot-like rapport which IMHO might mean something. I’ve experienced similar pressure pulses (I think) what’s seen on the video; as a child, I grew up right under one of the Space Shuttle’s approach vectors to Edwards Air Force Base, though over a hundred miles from the base, so the Shuttle was still high supersonic when it passed overhead. The double sonic boom was quite intense, you could feel it as much as hear it (and it was exceedingly loud, louder than a close lightning strike). It was very much the sharp ‘crack’ that appears in the video (the one where the people run like heck), This makes me wonder if the driving factor might be related; supersonic shock. If the explosive front was initially supersonic, you’d get a very compressed and intense shockwave (basically a sonic boom) created over a very large surface area. Is it possible that this might have been the case here?

      Also, as for the cause of the explosion itself; is it possible that a landslide or landslip (such as Anak Krakatoa did to create some tsunamis a few years back) might have exposed part of the magma chamber to the sea? I’m remembering the landslide at Mt. St. Hellens, which created the massive blast via exposing a large volume of magma. I’m trying to find seismic data, because this guess of mine is easily falsifiable; a land slip should show up on seismic data right before the big bang if it was causal, and so far I’ve seen no signs of this (so, probably a bad guess on my part).

  6. The shockwave passed Switzerland too.
    Was said to have been 2 hPa of difference.

    • I was going to post this article and saw your post. The author says that the size of the eruption shows fresh gas rich magma intrusion, not simply magma water reaction into steam. It would be interesting to get comment on this. I am having trouble locating information on cloud height, but clearly it went up well beyond the 17 km or 20 km figure quoted on the internet.

    • This is indeed a once or twice in a century event then, and I guess a VEI 6 eruption too. It is frightening that no one saw the caldera collapse coming. There were no reports of unusual activity at Hunga Tonga that could indicate it was preparing for a caldera forming event. That a volcano can go from behaving normal to collapsing into a caldera is terrifying. Imagine if Rabaul, Campi Flegrei or Aira pulled this off, there would be no way to prepare for a VEI 6 scale eruption if there aren’t any particular signs to identify, it could be catastrophic.

      On the other hand it is amazing that a mere 70 kilometres saved Tongatapu from being destroyed even though this was a massive eruption. The pyroclastic density currents and megatsunamis must have dissipated within 70 km of the volcano.

      • “It is frightening that no one saw the caldera collapse coming.”

        Cough…

        • Did you mention a potential caldera-forming event at Hunga Tonga before this eruption happened?

          There even were volcanologists yesterday, watching the eruption unfold, and they didn’t report any suspicions that the volcano was about to go caldera hours later.

          • I did mention the ring fault. I thought people would catch the importance of that in regards of caldera formation risk.

          • That’s what these beasts are like
            Very little obvious precursors

        • Yes, you rightly hinted at it. Then somebody commented on your comment speaking about the volcano on the left without seeing the ring fault, and that was it. You saw the possibility, no doubt about it. Having an eye for also Taal and the Philippines.

    • Those submarine volcanoes are part of a powerful chain that ends with the taupe volcanic zone
      Taupe is thought to have erupted over months before going supernova
      This thing is nasty

    • Yes, but that was from before last night’s eruption, and is from the explosions on the previous day. We don’t know how much is left now. If anything.

      • Seems like you missed the sentinel passes I just posted.

        The 3 images show the following:
        1. Before the first medium eruption.
        2. After the medium eruption.
        3. Yesterdays big eruption.

        It is an interesting timeline of how the caldera was gouged out.

        • The final image was published this morning. The caption actually says that it was taken hours before the cataclysmic eruption. No images of the aftermath will be available until later. The sky has to clear. Also, the explosion was in the evening and darkness fell shortly after. No imagres at night.

          • Thanks, I had not seen this (impressive) one. The one that I responded to showed changes as of yesterday. This one shows there is very little left of the island(s). A quick estimates gives a crater 4 km across. Depending on how deep, this could have reached VEI 6

        • Ringfault, Noread, Invisible, Carl. το βλέπω. I think this has been a crazy one for most VC-readers and contributors. We take different approaches, have somewhat differing views and I like (most of) the balance it has given throughout the day.

          This HAS to be the biggest event in VC-history. And could (could) even be the biggest volcanic eruption in a long time. We just don’t know yet.

          But I still can’t help leaning towards your asessments on this one. Still cu. km of data to collect and process though.

          You all have made it an exiting day. 😉

          • Oh it’s the biggest volcanic eruption in a long time. That much is clear by now. We’re talking high end VEI 5 or low end VEI 6 for this one. That’s the biggest in 31 years and these kinds of explosions only occur a handful of times a century.

  12. “The eruption of Mount Pinatubo in 1991 produced various oscillations both in the atmosphere and on the ground. “Seismic disturbances lasting approximately 3 h were detected around the world. (…) A large volcanic eruption can be a source of atmospheric pressure waves that propagate around the globe, as reported, for example, from the eruptions of Krakatau in 1883 (Simkin and Fiske, 1983), Bezymianny in 1956 (Passechnik, 1958), Mount St. Helens in 1980 (Donn and Balachandran, 1981; Sawada and others, 1982), and El Chichón in 1982 (Mauk, 1983)”.

    https://agupubs.onlinelibrary.wiley.com/doi/pdfdirect/10.1029/2010JB007747

    So I guess it is not so unusual for volcanic eruptions to produce atmospheric waves on a planet-wide scale. e can say however this is the largest “explosion” in Earth since Pinatubo in 1991. As I commented above the pressure waves are generated by the expanding cloud and there are many factors that could influence that like the presence of water being flashed into steam. So it is not necessarily an exact way of approximating the volume nor the eruption rates.

    • The knowledgable can extrapolate the data and thereby appreciate the enormity of the event. However, the visuals of Pinatubo’s final paroxysm or St. Helen’s flank collapse carried far more weight for the lay person.

  13. After this explosion last night, which I had the good fortune of catching on the Himawari-8 live just after it happened, today I realize how that a submarine volcano sometime in 1808 could have done the same thing, but we’d never know about it, since most of the debris is under the water after things settle down.

  15. Is the Tonga volcano erupting again?

    ?w=800&h=623

    ?w=800&h=295

    • There seems to be a small plume in the loop at roughly the one o’clock position to the main plume, so not 100% sure. But must degree with VolcanoNut, certainly possible!

  16. Island nation of #Tonga is completely offline following a #tsunami triggered by a massive volcanic eruption in the Pacific Ocean.

    According to @kentikinc data, traffic volumes began to drop around 4:30 UTC (5:30pm local) before finally going to zero at 5:40 UTC (6:40pm local).

    https://twitter.com/DougMadory/status/1482377945318625294

    • This sounds bad, although I don’t know how exaggerated this info is:

      “Breaking News: Just in The People Are Struggling To Breathe in Tonga as a Result of The Volcano. Also, There Have Also Been Reports That a Rescue Operation is Underway in Atata, a Small island Off Nukuʻalofa, Which Was Completely Submerged By The Tsunami Waves!”

      https://twitter.com/HaydenRocks2022/status/1482427812019843074

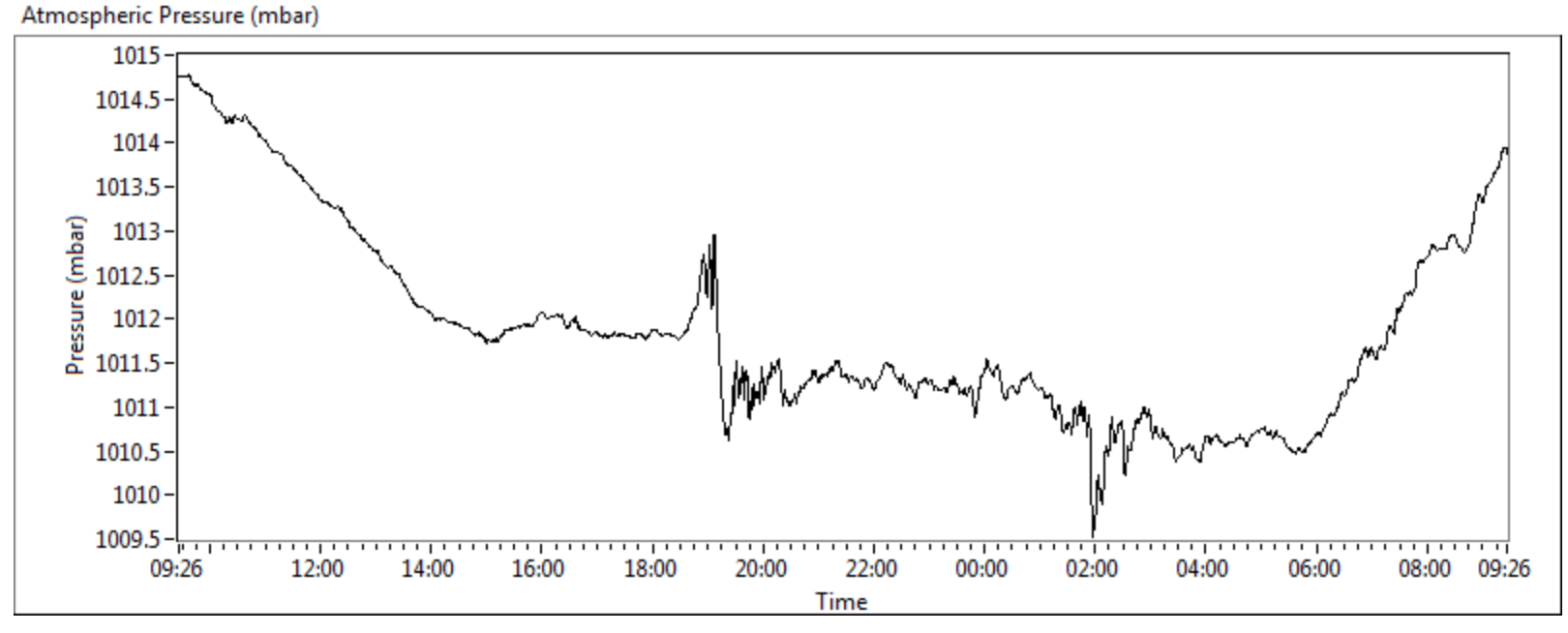

  17. Just occurred to me that I have a high resolution barometric sensor module for my Raspberry Pi breakout board. With possible detectable passes to come would be nice if I could actually find it! Just thought I’d mention it because it’s quite a common sensor to have if anyone’s played about with Pi hardware and maybe others reading this have one somewhere.
