After a runup of 4 months, or 10 hours, or 1.5 hours (depending on how you look at it), Kilauea sprung back to life, in its continuing quest to recreate the summit-wide lava lake of a century ago. There is still some way to go, but comparing this morning’s glowing lake to the Halemaumau lava pit of a decade ago shows how far it has already come. Over this decade the lava has grown from a pond 50 meters wide to a lake close to 1 kilometer across. It has been an eventful period.
The pit probably formed when lava traveling underneath the summit to Pu’u’o’o began to slow down and melt through the roof of the pipe. As the the connection between Kilauea and Pu’u’o’o began to clog up, pressure at Pu’u’o’o decreased and that at the summit increased. The lava in the pit slowly rose; eventually it just about overflowed on to the floor. This phase ended with the collapse of the Pu’u’o’o eruption. The lava found a new way out through the damaging Leilani rift eruption. Halemaumau collapsed.
This collapse eventually ended the rift eruption, when the path of least resistance was no longer out but instead went up. A quiet phase followed, until 17 months later the least resistance cracked. The collapsed crater now provided an easy way out for the magma. Since that time, the crater has filled with lava in a near continuous flow, albeit with two lengthy interruptions. Sometimes the lava would flow on top, at other times it would push up the lid. The second interruption came in September last year. Since that time, GPS measurements have shown that the crater was inflating, as magma collected at perhaps 2 km below the surface. Mauna Loa was preparing its eruption at this time as well. Was that related? Does the pressure in one volcano affect the other, even in the absence of a direct magma link? It is too early to tell. Hector and Chad were warning us that Kilauea was preparing to resume hostilities.
The GPS shows the movement of the CRIM GPS (south of the crater) and UWEV (north of the crater) over the past 2 years. CRIM was moving south, showing the centre of inflation was directly north of it (with some wiggling). UWEV was moving more northwest. The crater was expanding, and the inflation was centred in the crater. It may have been more to the northeast edge of Halemaumau. That is quite uncertain though with only two measurements. Both stations had gone up by some 10 cm, accelerating in recent weeks.
This inflation should not be overstated. The movements remain small compared to what the crater can do. During the 2018 eruption, CRIM went down by 2 meters! It has still only recovered 10% of that. UWEV went down by 50 cm: it has recovered about half of the 2018 collapse.
The picture above shows the 10-year curve. There were three phases of inflation, in 2019, 2021 and late 2022. The slopes are quite similar, at around 15 cm/yr. (There was a brief phase of stronger inflation immediately before the 2021 eruption.) This suggests that the three eruptions are similar in magma growth rate and depth. In contrast, the 2018 eruption did not have a strong inflation phase, but then this eruption did not start at Kilauea: it started with a magma chamber failure at Pu’u’o’o.
Once Mauna Loa ended its circus (it is only a month ago!), Kilauea saw its chance for the lime light. At Christmas, a larger earthquake moved the crater rim notably. A new dike started to form in the past few days, as shown by earthquake clusters. This was the state of the volcano only one day ago.
Just after midday (local time) on Jan 4, the tilt measurement at UWEV began changing. It moved up by about 3 microradians. This means there was a bit of uplift to one side, so that the instrument was tilting a bit. It is a very small effect, corresponding to 1 cm uplift at a distance of 3 km. It is a very sensitive instrument! It stabilized again, but began to tilt further in the early hours of Jan 5. Around 3pm it measured a sudden deflation followed by rapid inflation.
The seismographs confirmed the action. After a little tremor in the morning, a tremor wave hit at around 3pm. Magma was on the move: the seismograph detected the gurgling of the fluid, much like gassy plumbing. The tremor calmed down again by 3:30, after two earthquakes. This was the quiet before the storm. It is not uncommon that seismographs go silent in the hours before an eruption. The conduit is fulland is putting pressure on the plug. Nothing can move until the plug gives way: the magma is slowly increasing the pressure and is waiting for failure. It is not actually the magma that is pushing. Gas has come out of the magma and travels ahead. There is now a high pressure gas pocket directly underneath the plug. After a few months of no eruption, the crust is probably a few meters thick.
Failure came at 4:34 pm. The seismograph resumed gurgling, showing magma was on the move. The path was now open. Magma and gas combined to create fountains, reported as up to 50 meters tall. Underneath the fountains, magma flooded out and covered the solid crust in molten rock. HVO noticed the glow almost immediately.
You may want to read Hector’s post on the start of the December 2020 Kilaueau eruption!
The eruption is a very pretty one. The lava pool is big and red and covered with grey pancakes (thinly crusted lava). The views are clear and close and much better than the cloud-affected Mauna Loa eruption. Kilauea’s lava is also safely contained in a big crater. And one feature has really stood out in the early videos. Are you ready to surf the lave waves? (Not recommended!)
A video was published taken by Janice Wei showing lava fountains with spreading lava. It is fascinating to see how the lava moves in a clear wave, much like a wave in water. It even shows the lava wave breaking.
This video does not show a scale. The wave moves out over about 10 seconds before decaying. We know that the fountains were about 50 meters tall. Using that as a scale, the velocity of the lava wave is about 10 m/s initially, slowing down to 5 m/s later on. These numbers are only approximate! The height of the wave also decays, from about 5 meters initially to around 1 meter later on in the video. Again, take these numbers with a large grain of salt. The wave reaches about 200 meter from the fountain. There is only one main wave, but a small echo follows some 60 meters later, with a much smaller height.
This allows a simple estimate of the viscosity of the lava. The viscosity determines how much energy is lost by internal friction, and this causes the wave to decay at larger distances. Water waves decay slowly due to low viscosity, while honey waves disappear very fast due to high viscosity. A fun trick is to set up a wave in water that is beginning to freeze. You will find that the wave decays quickly: freezing water has a high viscosity.
We can guess the speed of the wave (roughly 10 m/s), the wavelength (say 60 m), the density of the lava (estimated at 2500 kg/m3), and the damping rate (roughly estimated at 0.04/m, based on the decline of wave height). There is now an equation that relates this to the viscosity. It depends on whether the wave is governed by gravity or by surface tension but this only makes a factor of 3 difference. Plugging my numbers into this equation gives me a viscosity of roughly 20,000 Pa s. (Pa s stands for Pascal-second, the units used for viscosity.)
(If you are interested, the equation for the viscosity is above where ρ is the density of lava, v the velocity of the wave, α the damping rate and λ the wavelength of the wave. This assumes a gravity wave: if instead there is high surface tension, the viscosity becomes three times higher.)
For comparison, Einarsson in 1966 obtained a viscosity of 10,000 Pa S for lava waves around the vent of Hekla. At Etna, Pinkerton & Norton in 1995 measured around 13,000 Pa s for Etna, and around 350 Pa s for Kilauea. Shaw obtained the viscosity of lava in the Makaopuhi pit crater in 1965 (using a different method: see below) and obtained 500 to 750 Pa s. The value I find here is normal for gas-poor lava but it is relatively high for Hawai’i. It could be lower if the wavelength is much less. Making it 20 meters would reduce the viscosity by a factor of 10.
The question was raised whether the lava was fountaining from the lava (magma?) sitting below the crust, or from new lava coming up from the deep. The viscosity suggests the ejected lava is not that fresh but has lost gas and may have crystallized a bit. Therefore it is likely that it is lava from the existing Halemaumau lava pool. The new dike increased the pressure and added gas, but did not (yet) contribute directly to the eruption.
The eruption rate has not been published yet. We can do a very rough estimate. The wave velocity decreased by a factor of 2 as the wave moved out. This corresponds to a decrease in depth of the lava of a factor of 4, because the wave speed scales as the square root of the depth of the liquid. Much of this comes from the decrease in the height of the lava wave itself. A quick estimation gives a depth of the lava surface of 1 to a few meters. Assuming this covered an area of 200 meters by 200 meters, and that the video was taken 15 minutes after the onset, the flow rate becomes 100 m3/s. This is a very rough number, and is likely an underestimate: the actual number could easily be several times higher (or more!).
A magma supply rate of 0.1 km3/yr would give a steady state eruption rate of 3 m3/s. That is too low for a stable eruption: it won’t get through the deep lava pond at this rate. This is the reason why the eruption must be intermittent: over time the eruption rate decreases as the fresh magma is depleted, but before it reaches equilibrium with the input rate the eruption stops. Now it has to wait for the pressure below the surface to increase, to allow the eruption to resume. However, this argument does not tell you how the eruption will last. That depends on the size of the available magma reservoir. Pu’u’O’o kept going for 30 years, although it did eventually peter out.
The eruption is likely to continue for months but will not remain as spectacular as it is now. The lava flood has covered much of the surface in fairly hot and shiny material. The rate at which lava is coming out will reduce as the pressure stabilizes. The surface will develop a grey crust and lava will be seen in patches and breaks. This is likely to continue for months, but eventually the eruption will suspend itself again. And the game repeats itself.
Do realize how far is has already come. Below is a USGS depiction from less than a year ago. The lake is now lapping the shores of the down-dropped block.
What is the end game?
Where will it end? The filling of the Halemaumau crater is not yet complete. If the filling continues, it may overflow in a few years. The situation would be similar to that of 1914-1918, when this crater also filled and over four years, overflowed on the floor of the large caldera. A century earlier, the lava lake reached another high point in 1830-1840. It is time for a rerun.
These high stands do not last. The links to the rift zones eventually fail and the crater drains. The drainage can lead to powerful explosions which can be dangerous to tourists. The rifts can then in turn feed fissure eruptions, as in 1840, but this may not always happen.
So we may have some years or a decade of more fun with Kilauea. Enjoy – but don’t be fooled. This volcano can have a temper when filled up too far.
Albert, January 2023
140 thoughts on “The 2023 Kilauea eruption”
Been waiting on this since the HVO email arrived. Greatly appreciated and many thanks. Time for another stay at Volcano House. Twenty years been too long.
Hi Albert excellent article
Well the viscosity of Hawaiian lavas are extraodinary low as seen here https://m.youtube.com/watch?v=gNoJv5Vkumk 11:02 – 11:10 its so fluid it looks like liquid aluminium in this USGS shot , But the 2007 – 2018 overlook lava lake was hotter stuff than even now. Its viscosity was perhaps 10 PA.s and nearly crystal free. Kilaueas lavas can display extraodinary low viscosity. Its very very fluid ( Kamokuna firehose is another example )
I put the viscosity of Kilaueas erupting lava from around 10 to 200 PA.s depending on location and conditions, and the deep superhot magma is as fluid as water
Puu Oo was erupting at supply rate at a few cubic meters a second and probaly woud have still been ongoing today without the Leilani rifting event. Kilauea have an extraodinary high magma supply today, and thats seen by the long term inflation of Kilaueas summit thats ongoing now.
20 000 PA.s is more like an Etna clastogenic Aa flow thats feed by huge fountains
Viscosity for Kilauea is similar to Nyiragongo.. looks about the same, just with Kilaueas Thoelitic basalts being more shiney and silvery
Kilauea defentivly is runny.. and lava often look more runny than it is because of its high density, but Kilauea is capable of milimeters thick spatter sheets that clad the walls of the 2008 – 2018 lava lake
Early in 1900 s and late 1800 s before modern instruments USGS tought Kilauea had almost same viscosity as water, and Infact Jaggar was frequently fascinated by the very low viscosity of the Hawaiian lavas, compared to most other lavas
Very fluid pahoehoe like this prefers a viscosity thats well below 1000 PA.s
The more fluid it is the better it is for smooth pahoehoe to form
The number I derived does seem high. The most uncertain part is the wavelength: that could be smaller. Make it say 3 times smaller would require higher damping, but it would still give a ten times lower viscosity. Still, it seems to me that the viscosity of the first eruption was higher than typical for Kilauea. The lava was a bit stale, and so likely from the existing pond rather than new magma. Crstyllization increases viscosity and this will have happened directly underneath the crust. Of course, the same happened in Leilani
I dont see a second wave in the video, not connected to the first, I have watched that now quite a lot of times 🙂
The wave seems to be a big gush of lava where the fountain blows out the small hole it began from and relieves some pressure. The second wave looks like just a set of ripples from the now dome fountain, unrelated to the big wave. Maybe doing the calculation on the ripples is more accurate.
The lava is just way too shiny and smooth to be that viscous really, it is still pahoehoe and even stays that way after the wave stirs it up, the lava would form a’a with a number like that and be spattering violently from the hole. Lava at Hekla and Etna is only smooth right at the vent and becomes a’a soon after. There are videos of Etna lava from yesterday that show it forming pahoehoe but it is still sticky and rough compared to pahoehoe in Hawaii.
I do agree though that the lava is probably not new magma but lake lava already in Halemaumau at this point. The density might be more than 2500kg/m3, might be closer to 3000, but maybe not.
Possible. I did wonder whether the second wave was a separate fountain event. I see the ripples you refer to. If I used that, the wavelength is more like 4 meters. The damping becomes much higher so that compensates. The viscosity becomes around 100 Pa s. Interesting that this makes such a difference.
100 Pa s, would be probably much closer I expect. At least, within a factor of a few. Summit eruptions at Kilauea are pretty consistent erupting at a very high temperature and low viscosity, flank eruptions are much more variable. But that value would be pretty similar to the lava lake before 2018 maybe a little higher.
Incredible how it can sit basically at the surface so long and not change. I guess these lakes must not really cool down at all unless the lava is actually in direct contact with the bottom, the lava has such a low thermal conductivity it cant transfer heat through itself.
The correct answer is in between, I guess. It seems interesting that other people using this wave method also get higher viscosities. Perhaps it gets the surface viscosity while the smoothness of the lava also comes from the viscosity of the deeper layers of the lava flow
That was old lava from the rootless lake .. and even that is very fluid
Fresh Halema’uma’u lava is probaly around 10 pas
It’s a pleasure to follow the observations of experts and it is great to find the opportunity to ask a question.
I recently read through
Reports on the estimated production of C02 which included
That of sea floor volcanoes, and thought
I detected an anomaly
In the calculations as
HEAT DOES NOT SEEM TO APPEAR AS A FACTOR. It does
Not appear in the be branch of research involving the heat of the planet, every julle of energy from a submarine eruption is fully captured by the ocean and stored .
This factor seemed to be missing . There is only a rough estimate of the activity of the
Submarine volcanic vents and their heat
Output has to be considered in the thermal budget, therefor l seek your opinion on my observation
Most deep Sea submarine edifices scattered on the abyssal plain are are not very active or are dormant or extinct
cO2 from volcanoes are small compared to Human emissions
Volcanoes get their heat from geothermal energy. The average heat input into the oceans can easily be calculated: geothermal flux is about 90-100 mW/m2 of ocean floor, which gives a total energy in out of 0.05 TW. For comparison, the tides provide 2TW, of which about 0.4TW makes it to the deep ocean. Solar radiation provides around 50 TW to the oceans. So this can be ignored for the oceans overall. (Not entirely: the deep ocean is about 0.4C warmer than it would be without geothermal energy, enough to have some effect on the ocean circulation.). Individual eruptions can have a local effect, and can cause upwelling, but the heat is quickly dispersed across the ocean. These eruptions are included in the average numbers above. An oceanic flood basalt is a different matter: that provides more heat, and the inflation of the ocean floor also causes significant sea level rise. They are rare, though.
Lava have low conductivity too, so lava flows can flow miles, miles underwater because of that. Once you gets a crust on it, it insulates well
Ocean heating from volcanoes is from geothermal circulation in the ocean water inside the volcanoes rather than eruptions I guess.
Albert how far do the ocean get into the oceanic crust / litosphere?
This is the energy that is produced inside the earth, mainly from radioactive decay and a smaller part from solidification and contraction of the core. It will come out somewhere! The mid-oceanic rift produces a warmer, 8-km thick crust. Much of the heating of the oceans comes from the warmth of that fresh crust. Part comes out in eruptions, part in black smokers, but a lot is just slow cooling of rock. Iceland’s geothermal heat sources is the same, with a little extra warmth added
I can just imagine a Super Earth with more mass and therefore more heating, lots lots of volcanoes
And perhaps as you say, most Super Earths in the habitable zone Maybe oceanic and wet worlds ?
For Fissure 17 s first day then the viscosity was much higher in the range of 10 000 s of PA.s
New USGS live streams avaible = youtube
Would 3 microradian signal not be equivalent to 3 mm of uplift at a distance of 1 km? Not 1 mm at 3 km which would be 0.33 microradians?
The tilt went up by 10 microradians at U’ekahuna, which is 3 km away from the middle of the caldera. It isnt likely that the tiltmeters pick up the inflation of the main reservoir as that is too deep (same as why tilt didnt really work as a warning on Mauna Loa)
Yes, you are right. It should have been 1cm, not 1mm. The point remains the same though. I’ll apply for a job with NASA..
The tilt measures the slope of the bulge at the location of the instrument. This slope is steepest roughly when the magma reservoir is as deep as the instrument is removed from the centre. A deeper chamber gives a shallower slope and a shallower chamber has the inflation much more centred. In this case, the effect is more widespread because the inflation happened at a large liquid magma pool which spreads the pressure around. The earthquakes were perhaps 2km deep, and that is where the dike came from.
Quite curious… that one feature reminds me of a micro-plate along the mid-ocean ridge. Ethiopia is literally just a mid-ocean ridge on land.
It certainly is trying to become a mid-ocean ridge, and probably close to it.
Geochemically, the volcanoes still have to get more tholeiitic. All evolved lavas in Afar are alkaline. Only some basalts, in Manda Hararo, Erta Ale, Ardoukoba, and Alid, are tholeiitic, but just barely. Mid-Ocean Ridges, the Red Sea or Mauna Loa are more strongly tholeiitic than Afar basalts.
This time the vents are under the lava lake, not at the side. So it will be interesting to see how this affects the eruption dynamics.
Janice Wei has uploaded another video of the initial lava fountains:
The 2008 – 2018 overlook lava lake was very fluid for soure, fluid and shiney, and unlike todays episodic open lava lakes, this one was a true open conduit lava lake pipe with lava circulating between the shallow magma chamber and the surface. I dont know the viscosity for that lava lake, but some USGS papers I read have it down to 30 pascals, and a gas rich layer with a density as low as water.
Its low viscosity was specialy apparent when rockfalls disturbed the surface and it became a boiling mess in these videos https://m.youtube.com/watch?v=TJfU1nzRQdo ,
And specialy this one .. superrunny https://m.youtube.com/watch?v=Cz73MjXdSHM
Halema’uma’u have low viscosity I wonder how that lava woud stick to a hammer, probaly a thin glassy sheet on it If sampled.
The extreme fluidity of Kilauea is one reason I like this volcano so much .. the more fluid the lava is the better .. 🙂
Reminds me of liquid aluminium
Hawaiian Volcano Update: Kīlauea Eruption Summary, Maunaloa Cools, January 6, 2023 with Philip Ong and Dane DuPont
One really interesting thing is the Mauna Loa and Kilauea eruptions effectively ended the same day, according to the USGS/Smithsonian weekly reports – Kilauea after a year of lava pouring into the crater. (Mauna Loa on 10 Dec, Kilauea on 9 Dec)
That indicates a blockage occurred fairly deep in the conduit. This new eruption suggests the pressure built up and popped that cork, which has then come out the easier path: into the Kilauea lava lake.
They stopped within a few days, but the lava lake at Kilauea stopped actually rising before that, at the end of September I believe. This was basically when the eruption ended, probably magma stopped flowing from the main magma chamber into the magma chamber under Halemaumau, but because the vent was open it kept circulating, until eventually it plugged up. The original cause of this decline was that a sill formed somewhere in the summit area of Kilauea (no inSAR showing it yet so dont know exact location). The lake might well be reaching a limit of elevation, the tiltmeter has already stopped going down which is a big difference from September 2021, there has not been a lot of pressure relieved, so there could be a second chapter to this story…
It might well be a little bit of a coincidence it stopped when it did only a couple days after Mauna Loa, the lake was already in a delicate balance that Mauna Loa erupting was probably enough to disrupt. I expect if the lake was healthy or the conduit was actually exposed like it was before 2018 or in the early 20th century the eruption would have kept going in the end given how it only took a month to erupt again afterwards.
The sill that drained a small part of the lake was entirely confined to the caldera. The deformation from the sill can be seen in the west caldera rim here:

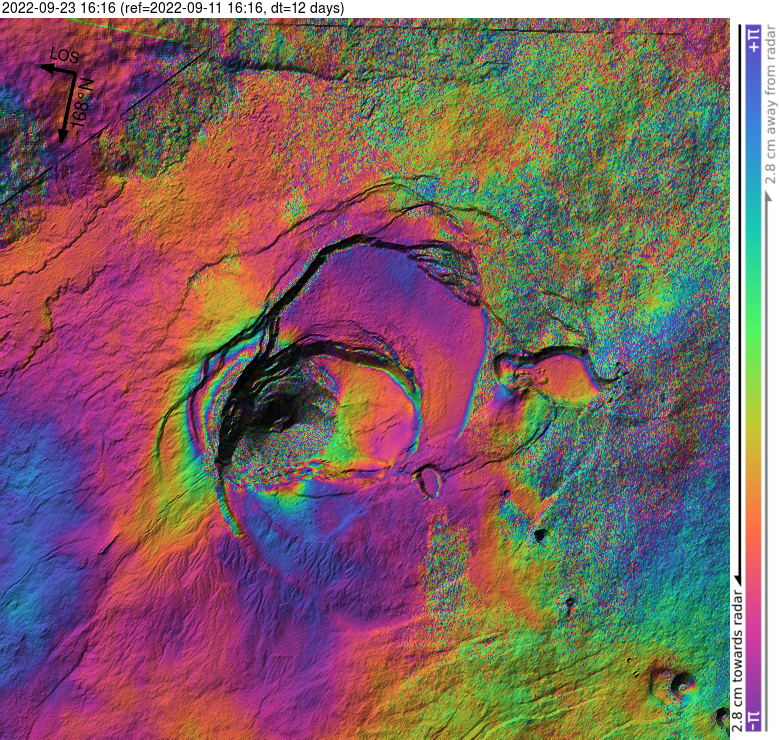

Here (from MOUNTS project):
